Denon DCD-1420 - PLL Adjustment; PLL Volume VR105 Adjustment

4, PLL Adjust

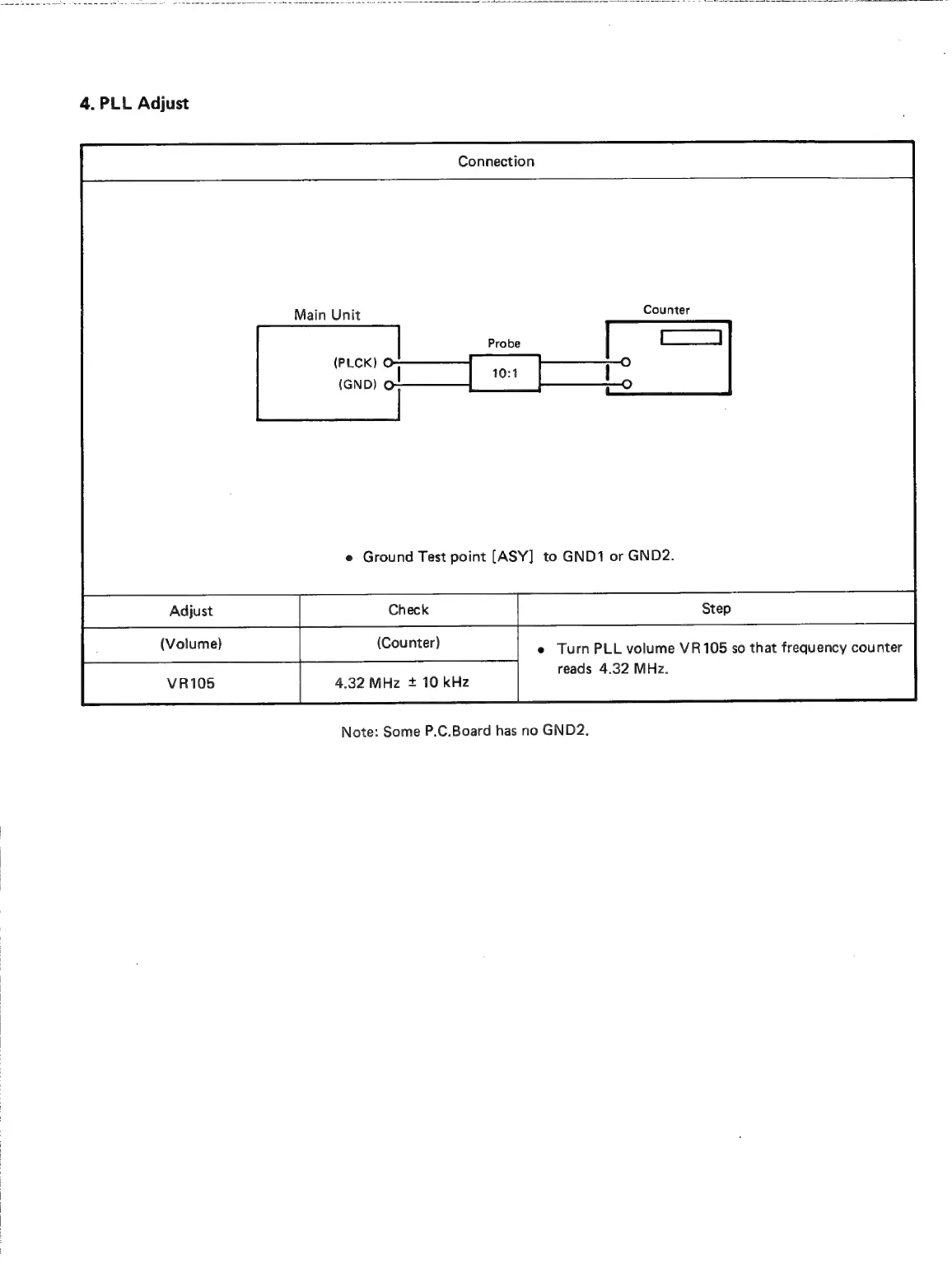

Connection
Counter
Main Unit
Probe
(PLCK) O | oa | O
(GND) Oo O
e Ground Test point [ASY] to GND1 or GND2.
VR105 4.32 MHz + 10 kHz
Note: Some P.C.Board has no GND2.,
e Turn PLL volume VR105 so that frequency counter
reads 4.32 MHz.
