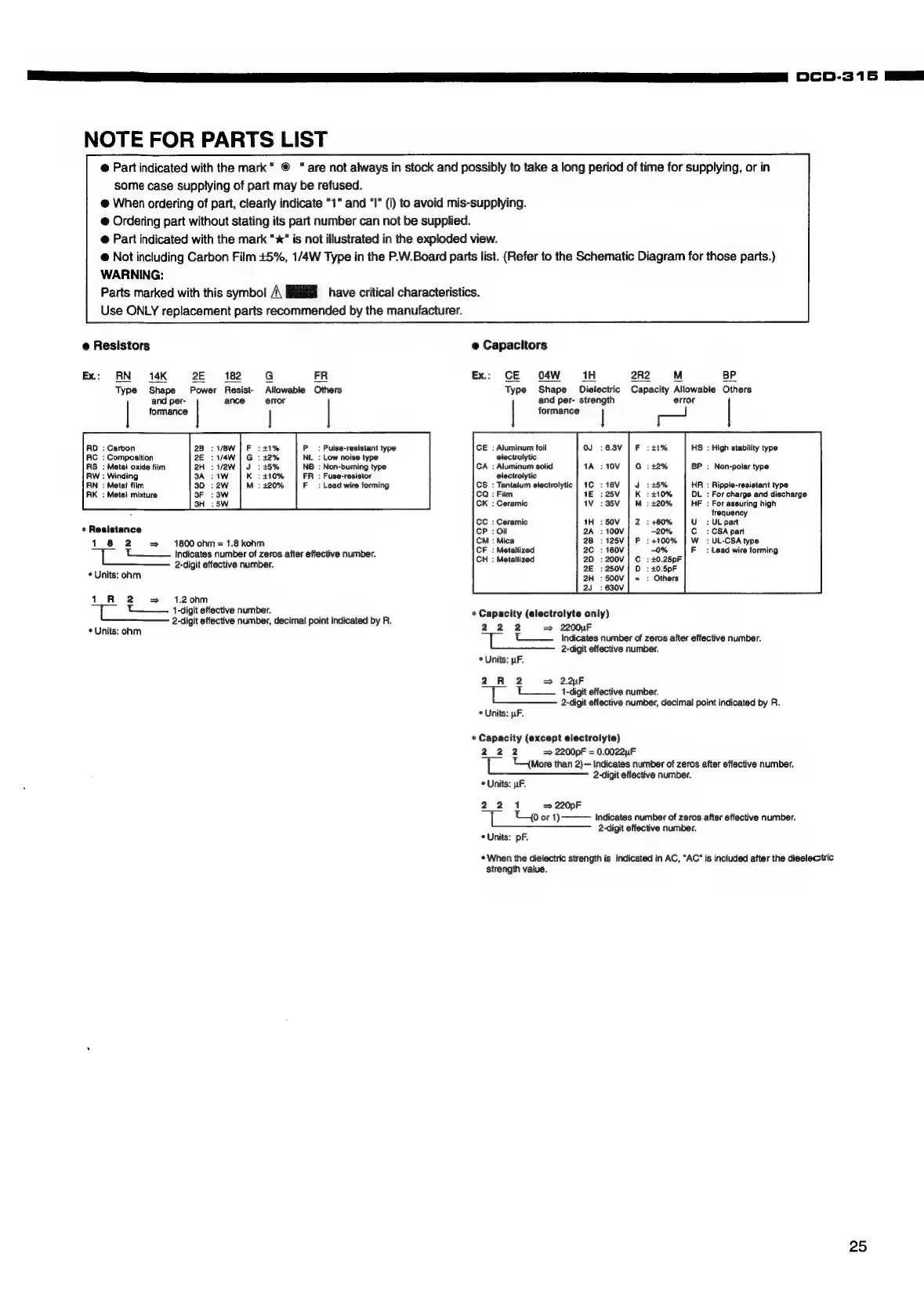

NOTE FOR PARTS LIST
@ Part indicated with the mark“ © " are not always in stock and possibly to take a long period of time for supplying, or in
some case supplying of part may be refused.
@ When ordering of part, clearly indicate "1" and “I" (i) to avoid mis-supplying.
@ Ordering part without stating its part number can not be supplied.
@ Part indicated with the mark “x” is not illustrated in the exploded view.
@ Not including Carbon Film +5%, 1/4W Type in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.)
WARNING:
Parts marked with this symbol /\ Hd have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.
e Resistors e Capacitors
Ex: RN 14K 2E 182 G FR Ex: CE 04W 1H 2R2 M BP
Type Shape Power Resist- Allowable Others Type Shape Dielectric Capacity Allowable Others
and per- ance error and per- strength error
| formance | | | formance | |
; Carbon : : Pulse-resistant type : Aluminum foil : : : High stability type
: Composition : : Low noise type electrolytic
: Metal oxide film x ‘ : Non-burning type : Aluminum solid : : : Non-polar type
: Winding 3 " : Fuse-resistor electrolytic
: Metal film : : : Lead wire forming : Tantatum etectrolytic : HB : Ripple-resistant type
: Metal mixture : Film 7 : : For charge and discharge
: Ceramic é : : For assuring high
frequency
: Ceramic : ; : UL part
* Resistance : Oil : CSA pan
1 8 2 = 1800 0hm = 1.8 kohm :Mica : : : UL-CSA type —
[ ______ Indicates number of zeros after effective number. Avert: : : : Lead wire forming
2-digit effective number. een : as
* Units: ohm : : Others
1 R 2 = 1.20hm
U____. 1-ligit effective number.
2-digit effective number, decimal point indicated by R.
* Capacity (electrolyte only)
* Units: oh 22 2 => 2200pF
ee ceun | UW Indicates number of zeros after effective number.
2-digit effective number.
* Units: pF.
2R 2 => 2.2uF
| tL. 1-digit effective number.
2-digit effective number, decimal point indicated by R.
* Units: pF.
* Capacity (except electrolyte)
222 => 2200pF = 0.0022yF
[ t_More than 2)— Indicates number of zeros after effective number.
: 2-digit effective number.
* Units: pF.
2.2 1 = 220pF
lo or 1) Indicates number of zeros after effective number.
2-digit effective number.
* Units: pF.
* When the dielectric strength is indicated in AC, “AC* is included after the dieelectric
strength value.
