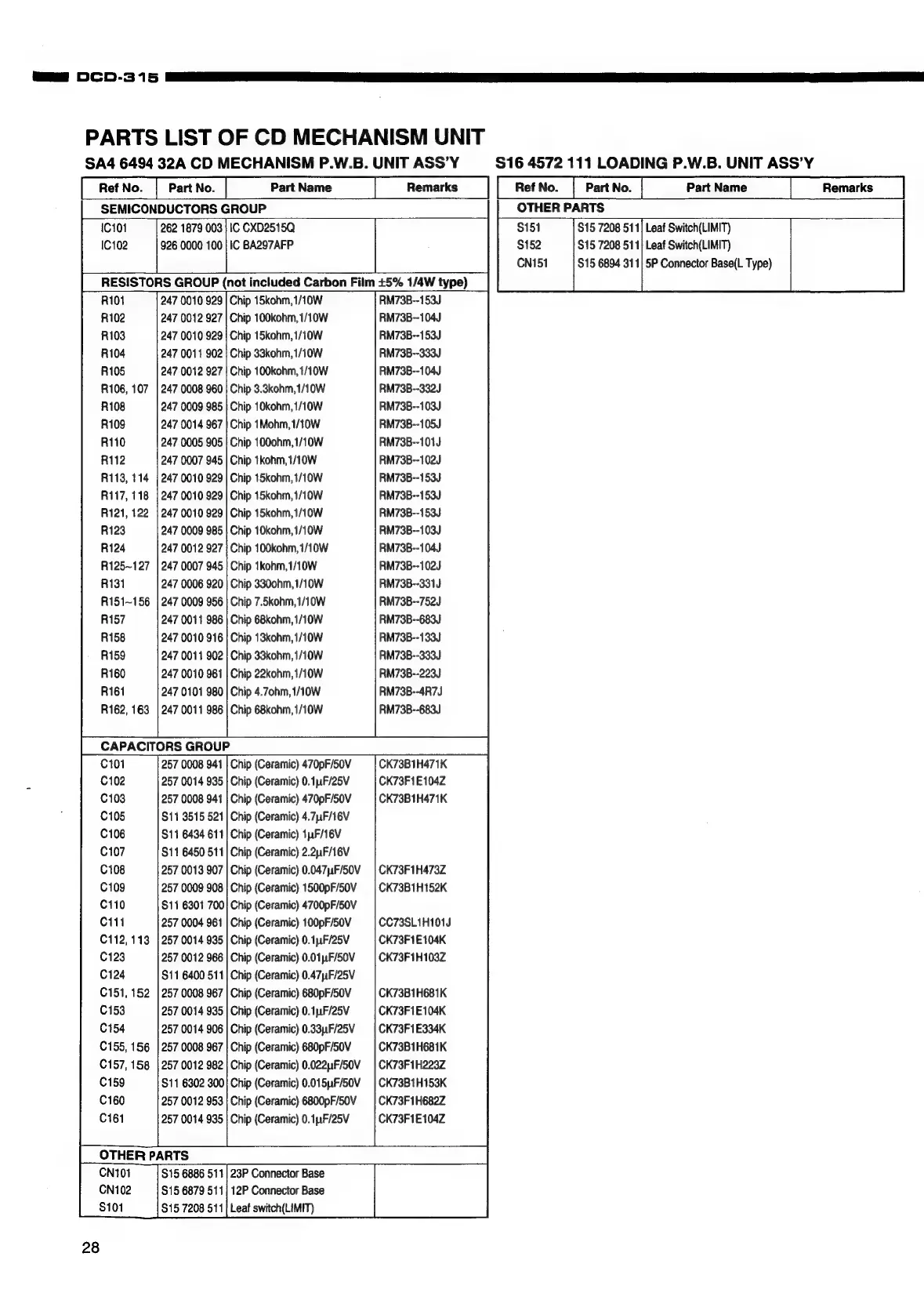

PARTS LIST OF CD MECHANISM UNIT
SA4 6494 32A CD MECHANISM P.W.B. UNIT ASS’Y — S16 4572 111 LOADING P.W.B. UNIT ASS'Y
[ RetWo. | PartNo | PartNeme | Remarks
SEMICONDUCTORS GROUP OTHER PARTS
262 1879 003 | IC CXD2515Q $15 7208 511] Leaf Switch(LIMIT)
926 0000 100 | IC BA297AFP $15 7208 511} Leaf Switch(LIMIT)
$15 6894 311| 5P Connector Base(L Type)
RESISTORS GROUP (not included Carbon Film +5% 1/4W type)
R101 247 0010 929 | Chip 15kohm,1/10W RM73B--153J
R102 247 0012 927 | Chip 100kohm, 1/10W RM73B--104J
R103 247 0010 929 | Chip 15kohm, 1/10W RM73B--153J
R104 247 0011 902 | Chip 33kohm,1/10W RM73B--333J
R105 247 0012 927 | Chip 100kohm, 1/10W RM73B--104J
R106, 107 | 247 0008 960 | Chip 3.3kohm,1/10W RM73B--332J
R108 247 0009 985 | Chip 10kohm,1/10W RM73B--103J
R109 247 0014 967 | Chip 1Mohm,1/10W RM73B--105J
R110 247 0005 905 | Chip 1000hm,1/10W RM73B--101J
R112 247 0007 945 | Chip tkohm, 1/10W RM73B--102J
R113, 114 | 247 0010 929 | Chip 15kohm,1/10W RM73B--153J
R117, 118 | 247 0010 929 | Chip 15kohm,1/10W RM73B--153J
R121, 122 | 247 0010 929] Chip 15kohm,1/10W RM73B--153J
R123 247 0009 985 | Chip 10kohm, 1/10W RM73B--103J
R124 247 0012 927 | Chip 100kohm,1/10W RM73B--104J
R125~127 | 247 0007 945 | Chip 1kohm,1/10W RM73B--102J
R131 247 0006 920 | Chip 3300hm,1/10W RM73B--331J
R151~156 | 247 0009 956 | Chip 7.5kohm,1/10W RM73B--752J
R157 247 0011 986 | Chip 68kohm,1/10W RM73B--683J
R158 247 0010 916 | Chip 13kohm,1/10W RM73B--133J
R159 247 0011 902 | Chip 33kohm, 1/10W RM73B--333J
R160 247 0010 961 | Chip 22kohm, 1/10W RM73B--223J
R161 247 0101 980 | Chip 4.7ohm,1/10W RM73B--4R7J
R162, 163 | 247 0011 986 | Chip 68kohm, 1/10W RM73B--683J
CAPACITORS GROUP
C101 257 0008 941 | Chip (Ceramic) 470pF/50V CK73B1H471K
C102 257 0014 935 | Chip (Ceramic) 0.1yF/25V CK73F1E104Z
C103 257 0008 941 | Chip (Ceramic) 470pF/50V CK73B1H471K
C105 $11 3515 521] Chip (Ceramic) 4.74F/16V
C106 $11 6434 611] Chip (Ceramic) 1F/16V
C107 $11 6450 511] Chip (Ceramic) 2.2uF/16V
C108 257 0013 907 | Chip (Ceramic) 0.047F/50V | CK73F1H473Z
C109 257 0009 908 | Chip (Ceramic) 1500pF/50V =| CK73B1H152K
C110 $11 6301 700} Chip (Ceramic) 4700pF/50V
C111 257 0004 961 | Chip (Ceramic) 100pF/50V CC73SLIH1015
C112, 113 | 257 0014 935 | Chip (Ceramic) 0.1,.F/25V CK73F1E104K
C123 257 0012 966 | Chip (Ceramic) 0.01,F/50V CK73F1H103Z
C124 $11 6400 511] Chip (Ceramic) 0.47F/25V
C151, 152 | 257 0008 967 | Chip (Ceramic) 680pF/SOV CK73B1H681K
C153 257 0014 935 | Chip (Ceramic) 0.1pF/25V CK73F1E104K
C154 257 0014 906 | Chip (Ceramic) 0.33yF/25V | CK73F1E334K
C155, 156 | 257 0008 967 | Chip (Ceramic) 680pF/50V CK73B1H681K
C157, 158 | 257 0012 982 | Chip (Ceramic) 0.022uF/50V | CK73F1H223Z
C159 $11 6302 300} Chip (Ceramic) 0.015uF/50V | CK73B1H153K
C160 257 0012 953 | Chip (Ceramic) 6800pF/50V | CK73F1H682Z
C161 257 0014 935 | Chip (Ceramic) 0.1pF/25V CK73F1E104Z
ea ewe
OTHER PARTS
$15 6886 511| 23P Connector Base
$15 6879 511] 12P Connector Base
$15 7208 511| Leaf switch(LiMIT)
