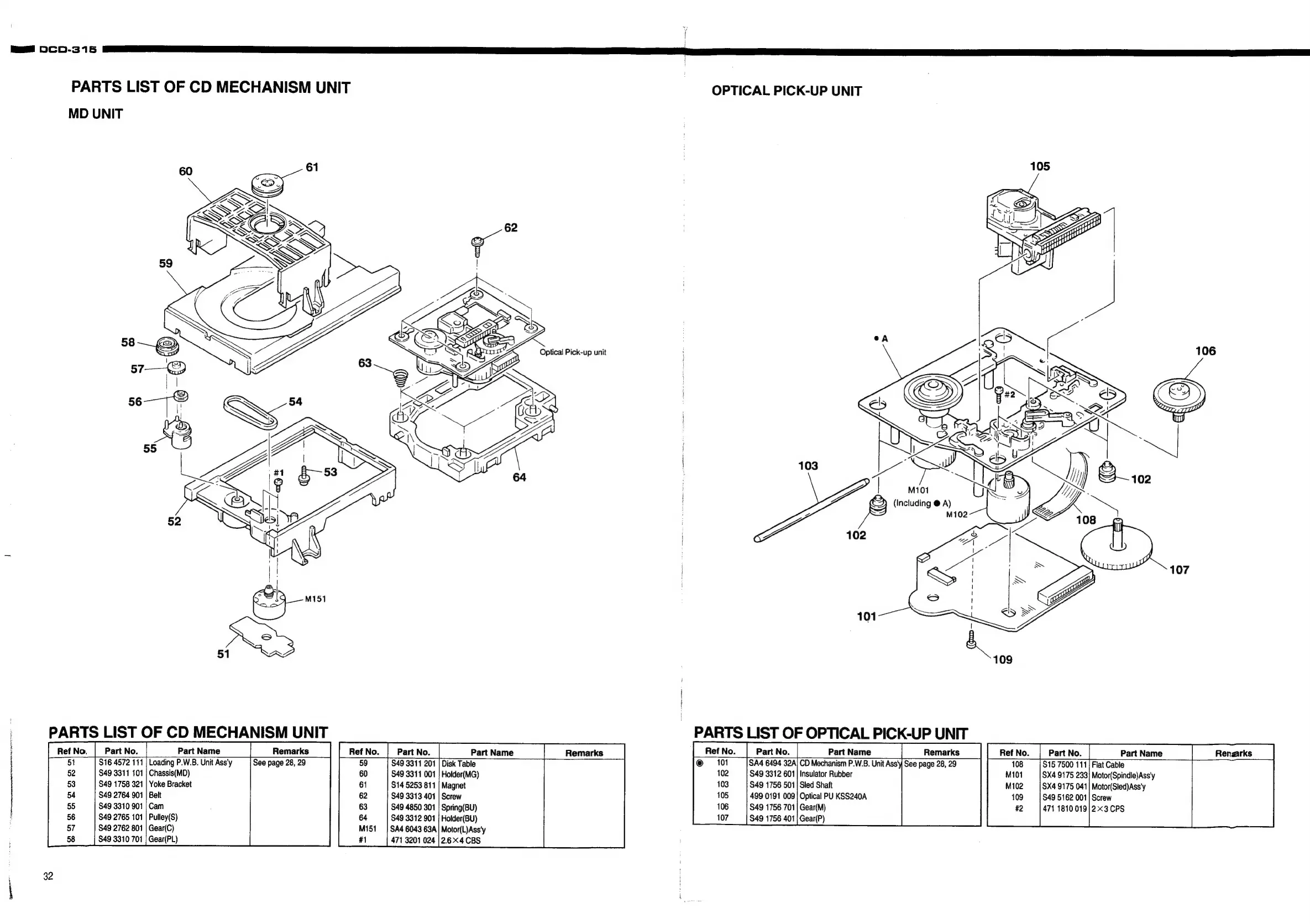

PARTS LIST OF CD MECHANISM UNIT
MD UNIT
$16 4572 111
$49 3311 101
$49 1758 321
$49 2764 901
$49 3310 901
S49 2765 101
$49 2762 801
$49 3310 701
Loading P.W.B. Unit Assy
Chassis(MD)
Yoke Bracket
Belt
Cam
Pulley(S)
Gear(C)
Gear(PL)
Remarks
See page 28, 29
Remarks
$49 3311 201 | Disk Table
$49 3311 001 | Holder(MG)
$14 5253 811 | Magnet
$49 3313 401 | Screw
$49 4850 301 | Spring(BU)
$49 3312 901 | Holder(BU)
SA4 6043 63A | Motor(L)Ass'y
471 3201 024 | 2.64 CBS
OPTICAL PICK-UP UNIT
103
(Including @ A)
M102
102
107
101
Part Name Renarks
$15 7500 111 | Flat Cable
SX4 9175 233] Motor(Spindle)Ass'y
SX4 9175 041] Motor(Sled)Ass'y
