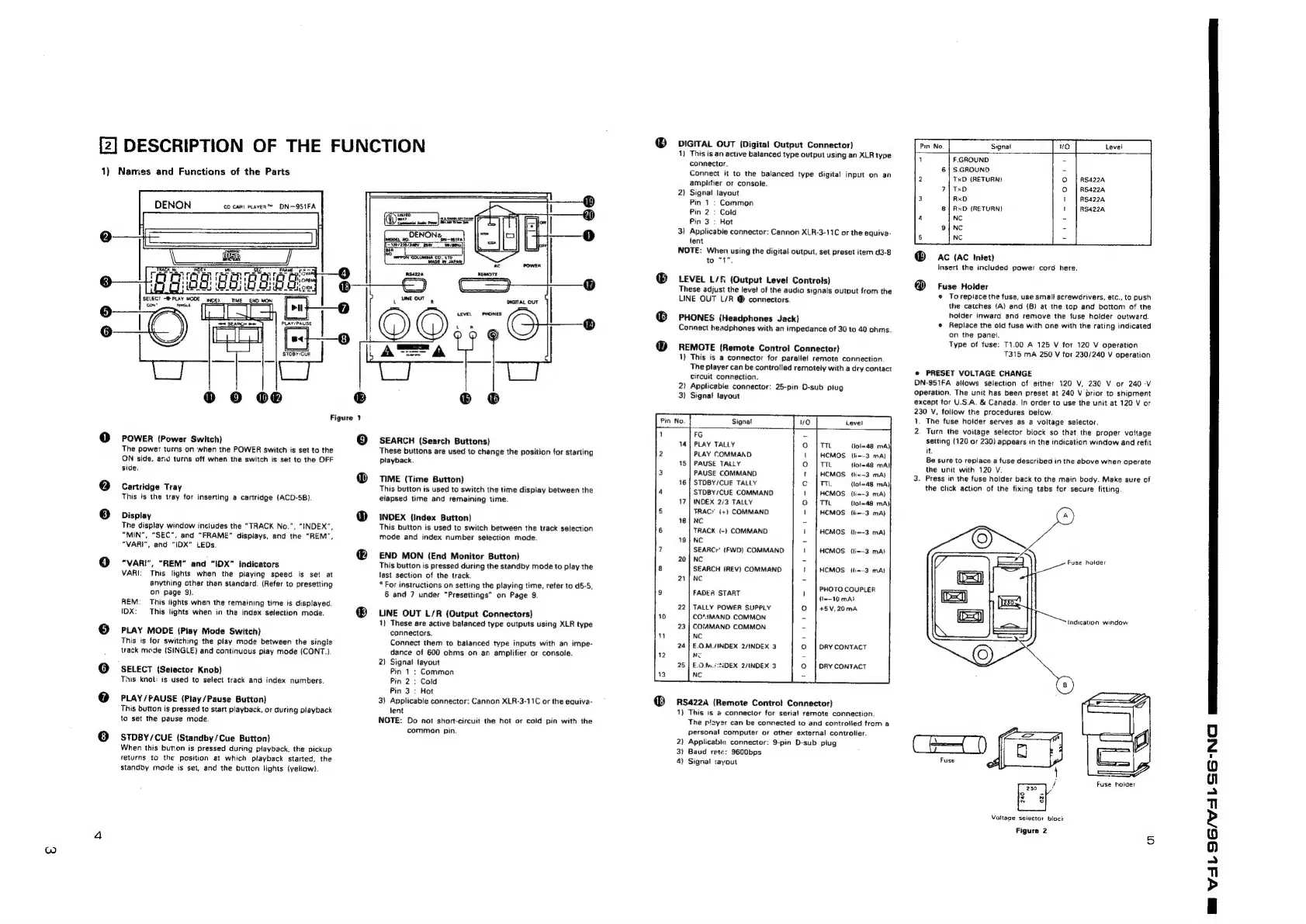

[2] DESCRIPTION OF THE FUNCTION
1) Names and Functions of the Parts
co cari PLavER™ DN—951FA
SELECT
“®PLAY
MODE
woey
TIME
END
MON
fl
Oe SEARCH oe PLAY/PAUSE
STOBY/CUE
(OEE
POWER (Power Switch)
The power turns on when the POWER switch is set to the
ON side. ard turns off when the switch is set to the OFF
side.
Cartridge Tray
This is the tray for inserting a cartridge (ACD-5B)
Display
The display window includes the “TRACK No.”, “INDEX”,
“MIN", “SEC”, and “FRAME” displays, and the "REM",
“VARI”, and “IDX” LEDs.
“VARI", “REM” and “IDX” indicators
VARI: This lights when the playing speed is set at
anything other than standard. (Refer to presetting
on page 9).
REM: This lights when the remaining time is displayed.
'DX: This lights when in the index selection mode.
PLAY MODE (Play Mode Switch)
This is for switching the play mode between the single
track mode (SINGLE) and continuous piay mode (CONT.).
SELECT (Selector Knob)
This knol: ts used to select track and index numbers.
PLAY/PAUSE (Play/Pause Button)
This button is pressed to start playback, or during playback
to set the pause mode.
STDBY/CUE (Standby/Cue Button)
When this button is pressed during playback, the pickup
returns to the position at which playback started, the
standby mode is set, and the button lights (yellow).
®
Figure 1
C3)
©
SEARCH (Search Buttons}
These buttons are used to change the position for starting
playback.
TIME (Time Button)
This button is used to switch the time display between the
elapsed time and remaining time.
INDEX {Index Button)
This button is used to switch between the track selection
mode and index number seiection mode.
END MON (End Monitor Button)
This button is pressed during the standby mode to play the
fast section of the track.
* For instructions on setting the playing time, refer to d5-5,
§ and 7 under “Presettings” on Page 9.
LINE OUT L/R (Output Connectors)
1) These are active balanced type outputs using XLR type
connectors.
Connect them to balanced type inputs with an impe-
dance of 600 ohms on an amplifier or console.
Signat layout
Pin 1: Common
Pin 2: Cold
Pin 3 : Hot
Applicable connector: Cannon XLR-3-11C or the equiva-
jent
NOTE: Do not short-circuit the hot or cold pin with the
common pin.
2
3
DIGITAL OUT (Digital Output Connector}
1) This is an active balanced type output using an XiR type
connector.
Connect it to the balanced type digitai input on an
ampiifier or console.
Signal layout
Pin 1: Common
Pin 2 : Cold
Pin 3: Hot
Applicable connector: Cannon XLR-3-11C or the equiva-
tent
NOTE: When using the digital output, set preset item d3-8
to “1”,
2
3
LEVEL L/F (Output Level Controls)
These adjust the levet of the audio signals output from the
LINE OUT L/R ® connectors.
PHONES (Headphones Jack}
Connect headphones with an impedance of 30 to 40 ohms.
REMOTE (Remote Control Connector}
1} This is a connector for paraliel remote connection
The player can be controtled remotely with a dry contact
circuit connection.
2} Applicable connector: 25-pin D-sub plug
3) Signal layout
FG -
PLAY TALLY oO j TTL (lol=a8_ mA}
PLAY COMMAND I HCMOS [lie-3 mA)
PAUSE TALLY QO | TT {iol=48 mAl}
PAUSE COMMAND | | HCMOS {lix-3 mA)
STDBY/CUE TALLY Cc Yt (lol=48 mA)
STDBY/CUE COMMAND ' HCMOS [lim=~3 mA)
INDEX 2/3 TALLY O 4TTL Qol=48 mA}
RACY (+) COMMAND ! HCMOS fii--3 mA}
NC e
TRACK (-) COMMAND ' HCMOS {It=-3 mA)
NC 7
SEARCr’ (FWD) COMMAND ' HCMOS ili=-3 mA)
NC =
SEARCH (REV) COMMAND ' HCMOS {li=—3 mA}
NC =
FADER START \ PHOTO COUPLER
{t=-10 mA}
TALLY POWER SUPPLY oO +5V, 20mA
CO'IMAND COMMON -
CO;AMAND COMMON ~
NC
E.O.M./INDEX 2/INDEX 3 DRY CONTACT
No
E.O.M./
NC
DEX 2/HNDEX 3 DRY CONTACT
RS422A (Remote Controt Connector}
1} This is @ connector for serial remote connection.
The ployer can be connected to and controiled trom a
personal computer or other external controtler.
2) Applicable connector: 9-pin D-sub ptug
3) Baud rate: 9600bps
4) Signal :ayout
Signal
F.GROUND
S.GROUND
TxD {RETURN} RS422A
TxD RS4224
RxD RS422A
RxD {RETURN} RS422A
NC
NC
NC
® Ac (Ac Iniet)
Insert the included power cord here.
@ Fuse Holder
© Toreplace the fuse, use small screwdrivers, etc., to push
the catches {A} and {B) at the top and bottom of the
holder inward and remove the fuse holder outward
© Replace the old fuse with one with the rating indicated
on the panel.
Type of fuse: T1.00 A 125 V for 120 V operation
T315 mA 250 V for 230/240 V operation
e@ PRESET VOLTAGE CHANGE
DN-951FA allows selection of either 120 V, 230 V or 240-V
operation. The unit has been preset at 240 V prior to shipment
except for U.S.A. & Canada. In order to use the unit at 120 V or
230 V, follow the procedures below.
1. The fuse holder serves as a voltage selector.
2. Turn the voitage selector biock so that the proper vaitage
setting (120 or 230) appears in the indication window and refit
it.
Be sure to replace a fuse described in the above when operate
the unit with 120 V.
3. Press in the fuse holder back to the main body. Make sure of
the click action of the fixing tabs for secure fitting.
Fuse holder
Indication window
Fuse hoide:
Voltage selector block
Figure 2
