@ DN-951FA/961FA

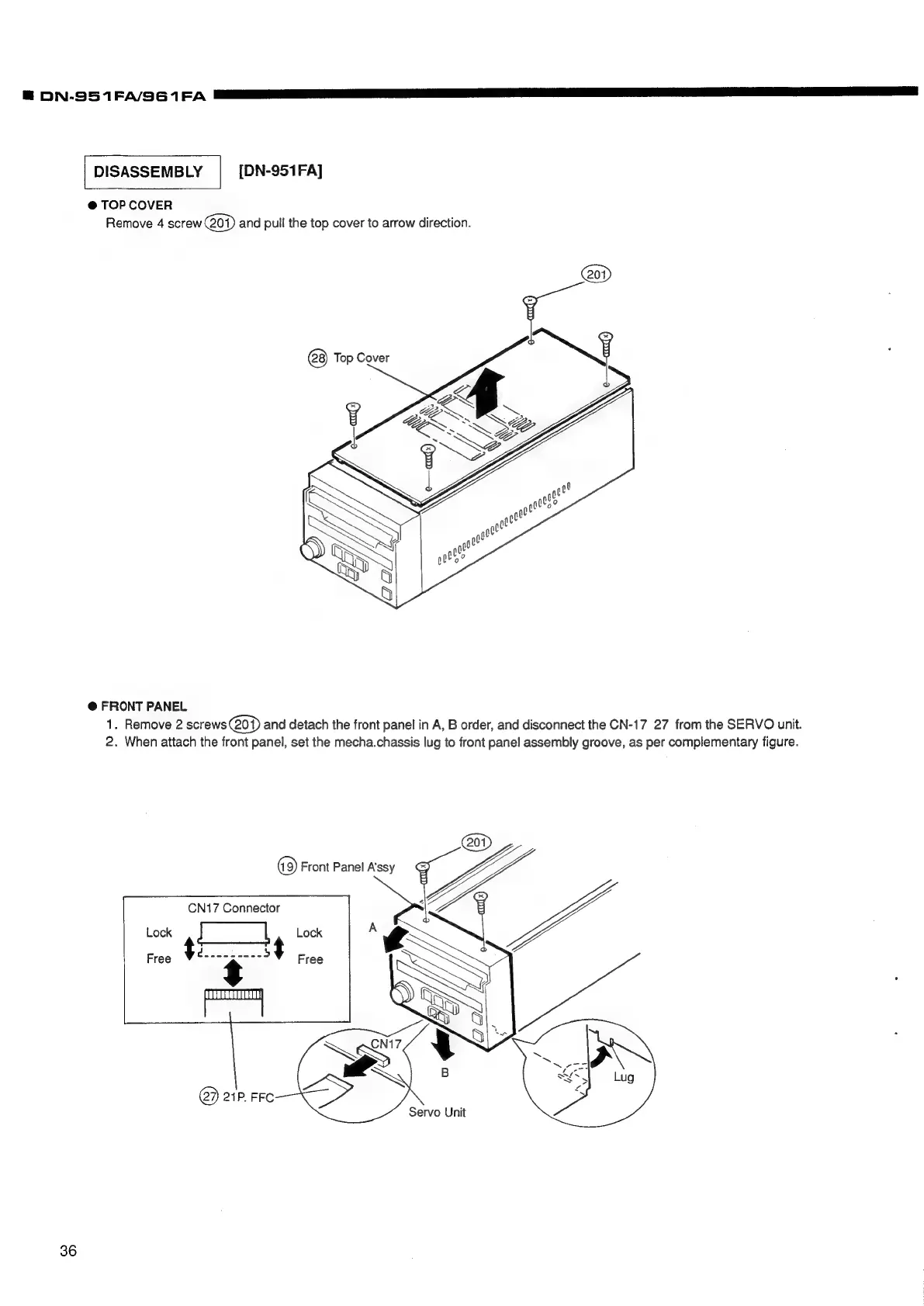

| DISASSEMBLY [DN-951FA]
@ TOP COVER
Remove 4 screw 201) and pull the top cover to arrow direction.
@ FRONT PANEL
1. Remove 2 screws(201) and detach the front panel in A, B order, and disconnect the CN-17 27 from the SERVO unit.
2. When attach the front panel, set the mecha.chassis lug to front panel assembly groove, as per complementary figure.
Servo Unit
36
