DN-9351FA/96 1FA

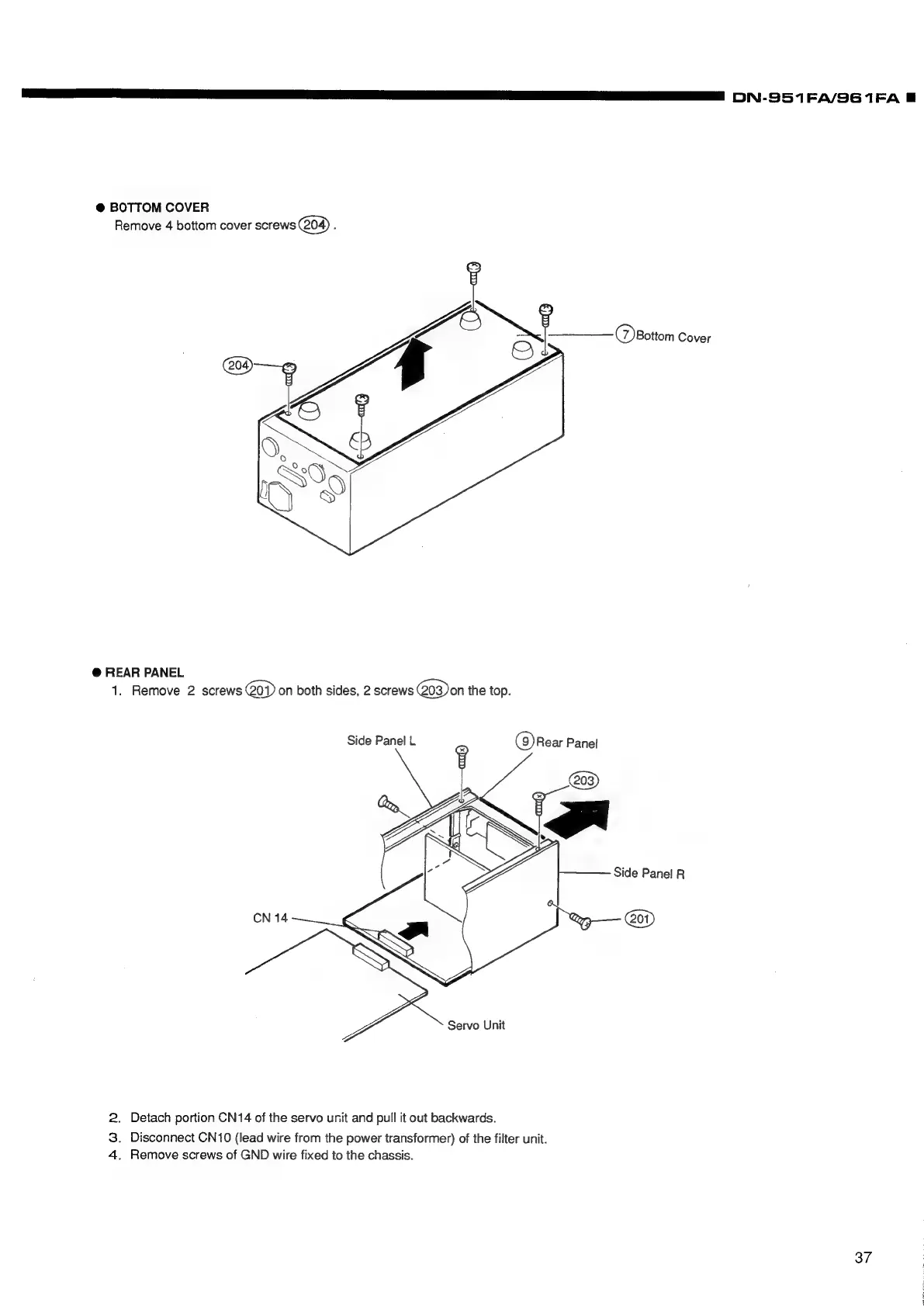

@ BOTTOM COVER
Remove 4 bottom cover screws .
@)Bottom
Cover
@ REAR PANEL
1. Remove 2 screws @oD on both sides, 2 screws @03)on the top.
Side
Panel
L
(9)Rear
Panel
Side Panel R
Servo Unit
2. Detach portion CN14 of the servo unit and pull it out backwards.
3. Disconnect CN10 (lead wire from the power transformer) of the filter unit.
4. Remove screws of GND wire fixed to the chassis.
37
