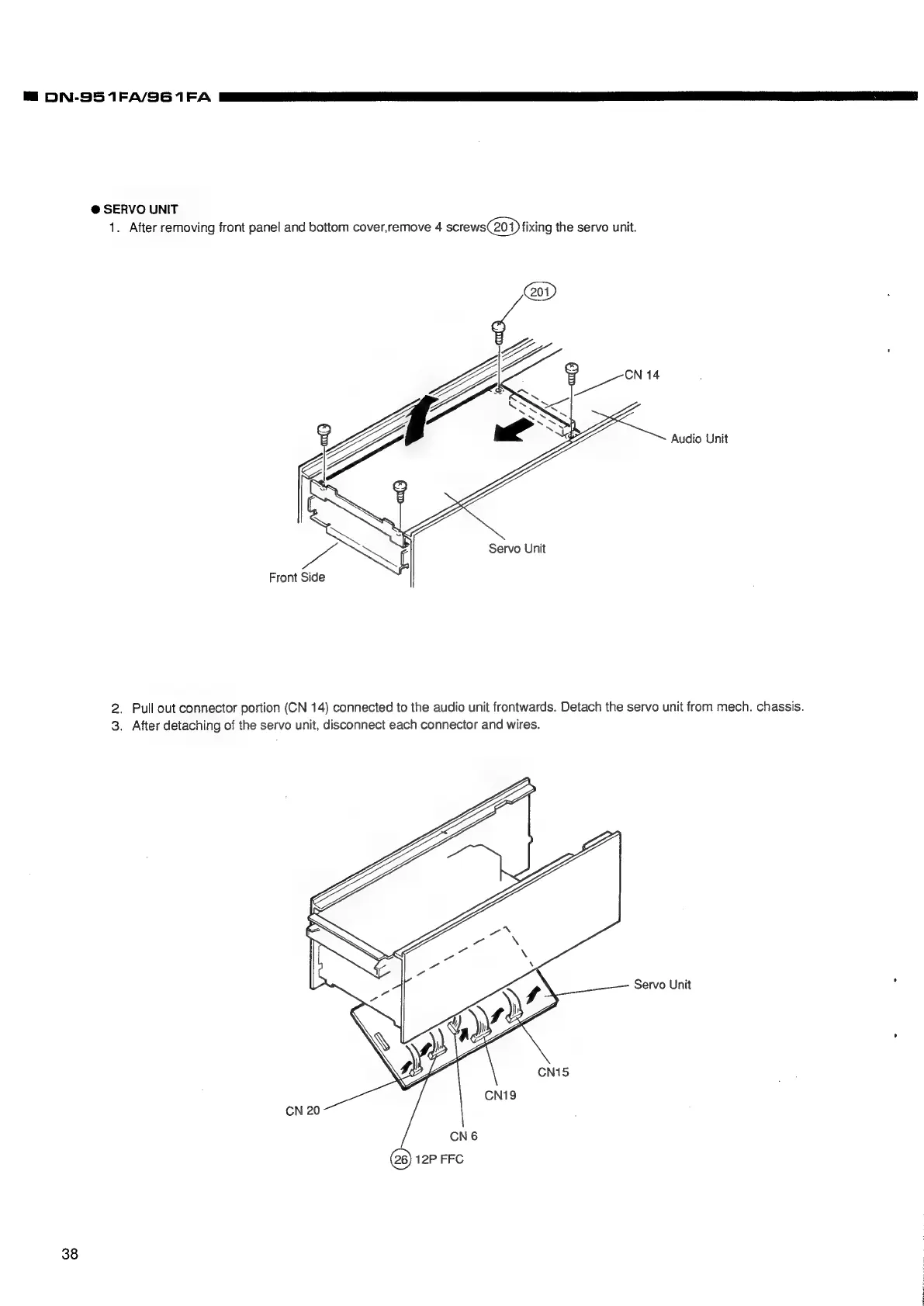

DON-95
1FA/961FA
@
SERVO
UNIT
1.
After
removing
front
panel
and
bottom
cover,remove
4
screws(201)
fixing
the
servo
unit.
Audio
Unit
Servo
Unit
Front
Side
2.
Pull
out
connector
portion
(CN
14)
connected
to
the
audio
unit
frontwards.
Detach
the
servo
unit
from
mech.
chassis.
3.
After
detaching
of
the
servo
unit,
disconnect
each
connector
and
wires.
Servo
Unit
38
