DN-93951FA/961FA mM

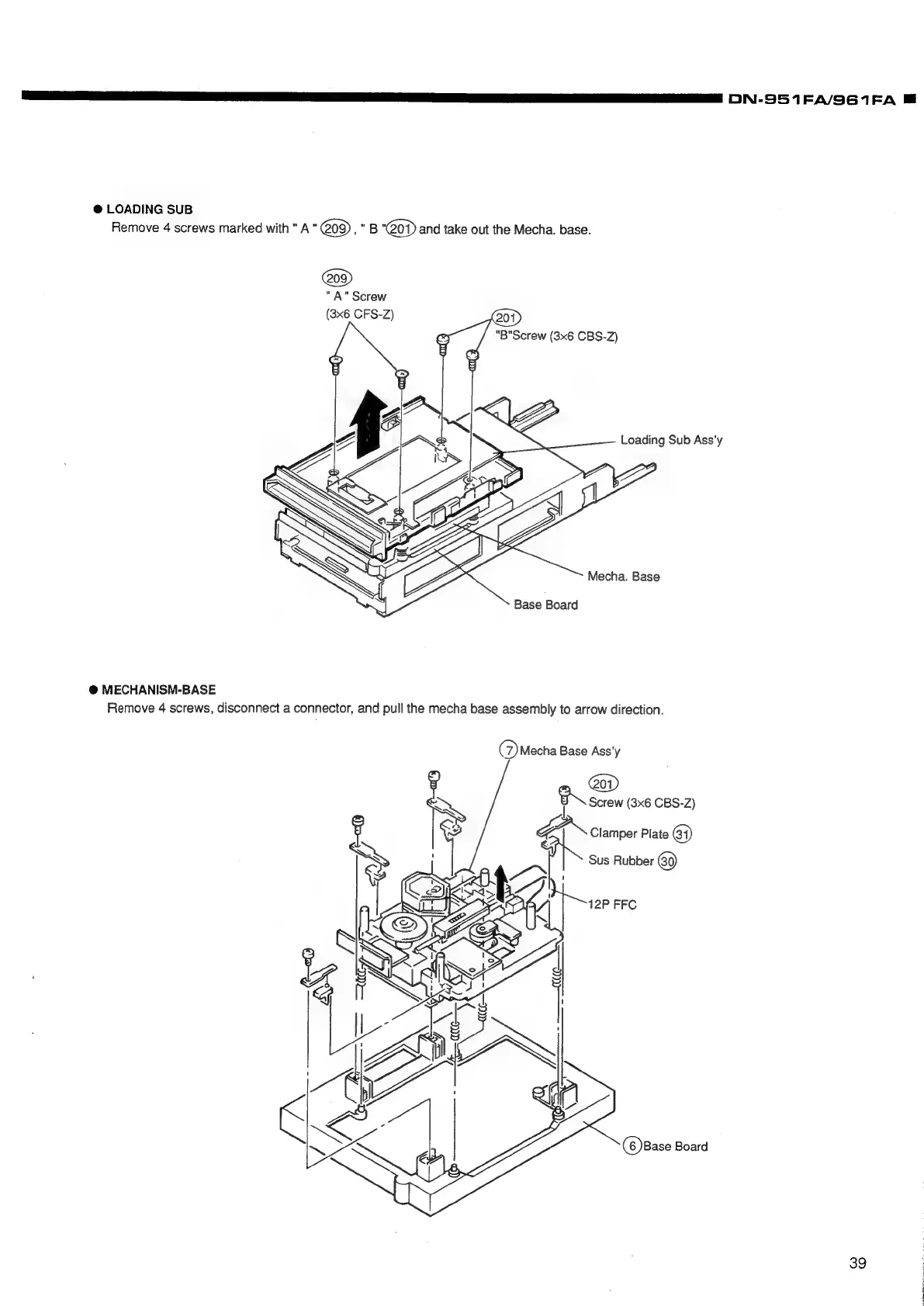

@ LOADING SUB
Remove 4 screws marked with" A" ,"B "@0D and take out the Mecha. base.
"A" Screw
(3x6 CFS-Z)
“B'Screw (3x6 CBS-Z)
Loading Sub Ass’y
Mecha. Base
Base Board
@ MECHANISM-BASE
Remove 4 screws, disconnect a connector, and pull the mecha base assembly to arrow direction.
(7) Mecha Base Ass'y
@ aw
Screw (3x6 CBS-Z)
Ar
Clamper
Plate
61)
Sus Rubber
poe FFC
(Base Board
