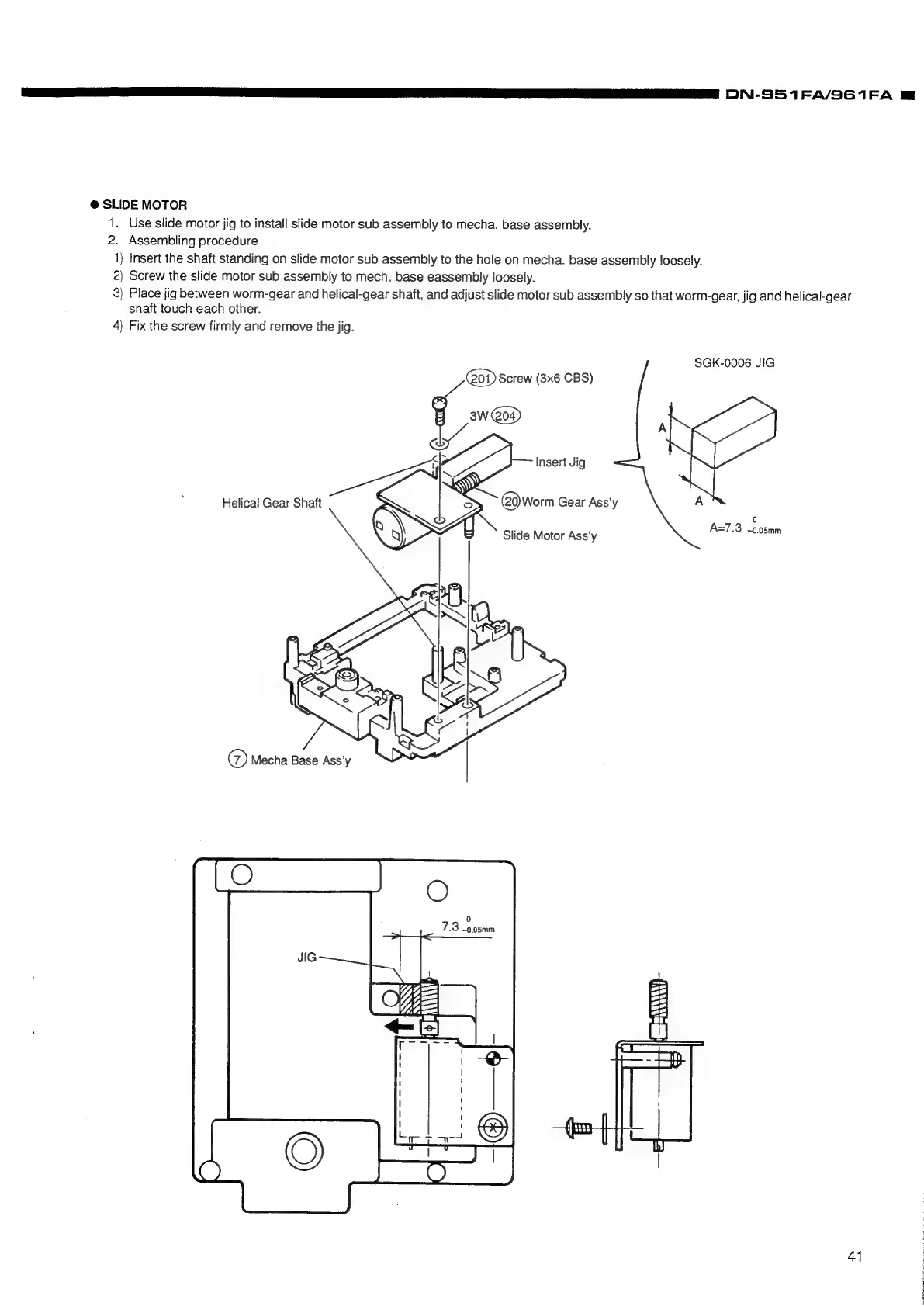

@ SLIDE MOTOR
1. Use slide motor jig to install slide motor sub assembly to mecha. base assembly.
2. Assembling procedure
1) Insert the shaft standing on slide motor sub assembly to the hole on mecha. base assembly loosely.
2) Screw the slide motor sub assembly to mech. base eassembly loosely.
3)
Place
jig
between
worm-gear
and
helical-gear
shaft,
and
adjust
slide
motor
sub
assembly
so
that
worm-gear,
jig
and
helical-gear
shaft
touch
each
other.
4) Fix the screw firmly and remove the jig.
SGK-0006 JIG
(207) Screw (3x6 CBS)
Le
:
ee
Insert
Jig
Helical
Gear
Shaft
20)
Worm
Gear
Ass'y
A
0
27° i
Slide
Motor
Ass'y
A=7.3
-0.05mm
Beene
