@ DN-95 1FA/961FA

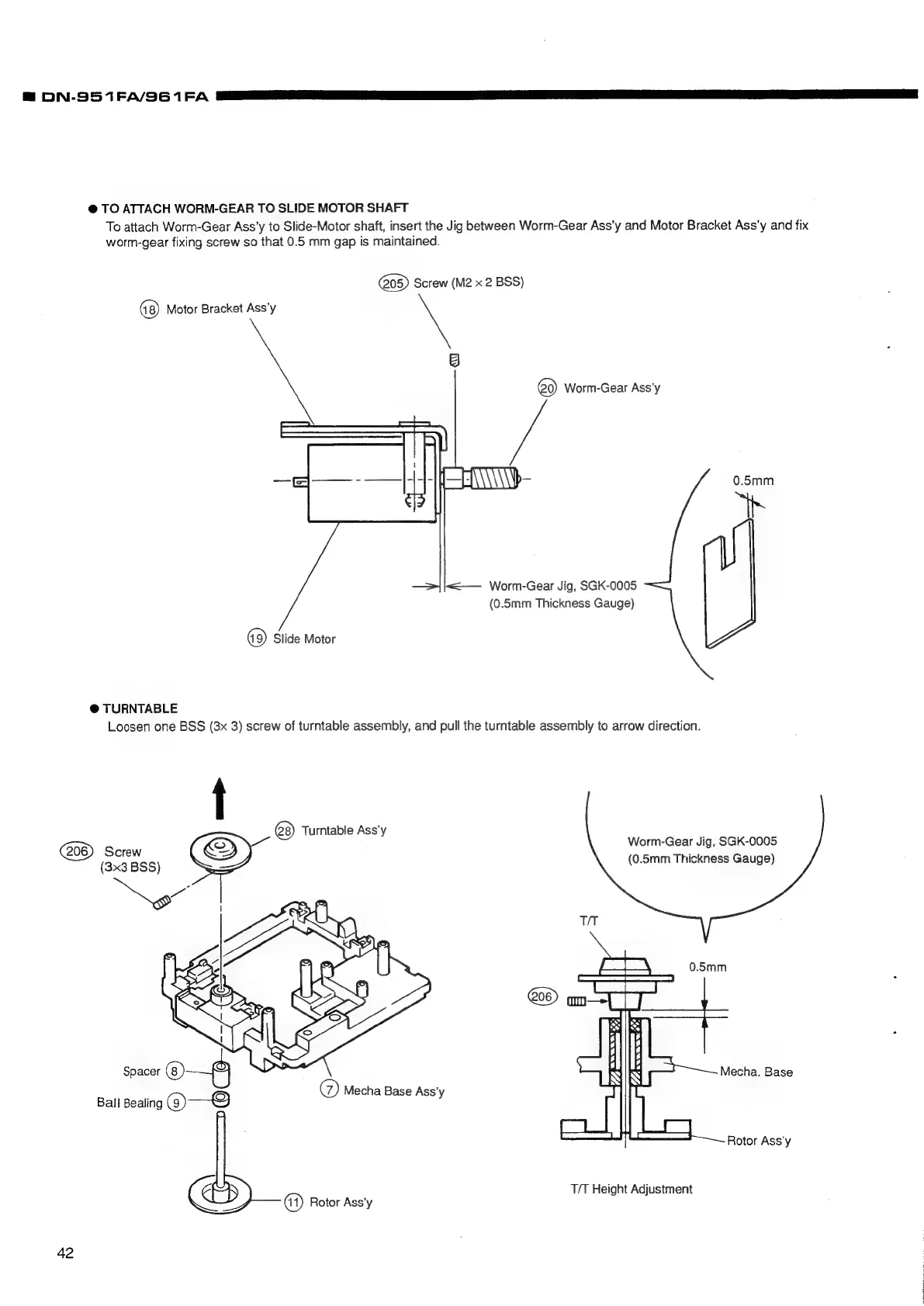

@ TO ATTACH WORN-GEAR TO SLIDE MOTOR SHAFT
To attach Worm-Gear Ass’y to Slide-Motor shaft, insert the Jig between Worm-Gear Ass’y and Motor Bracket Ass’y and fix
worm-gear fixing screw so that 0.5 mm gap is maintained.
Screw (M2 x 2 BSS)
Motor Bracket Ass'y
@o) Worm-Gear Ass’y
ae
1\\\\\\Nb-
0.5mm
<=<— Worm-Gear Jig, SGK-0005
(0.5mm Thickness Gauge)
Slide Motor
@ TURNTABLE
Loosen one BSS (8x 3) screw of turntable assembly, and pull the turntable assembly to arrow direction.
Turntable Ass’y
Worm-Gear Jig, SGK-0005
(0.5mm Thickness Gauge)
Screw
(3x3 BSS)
Mecha. Base
Mecha
B
Ass’
Ball
Bealing
(9)
—Q
(Z
Mecha
Base
Ass'y
Rotor Ass'y
T/T Height Adjustment
@) Rotor Ass’y
42
