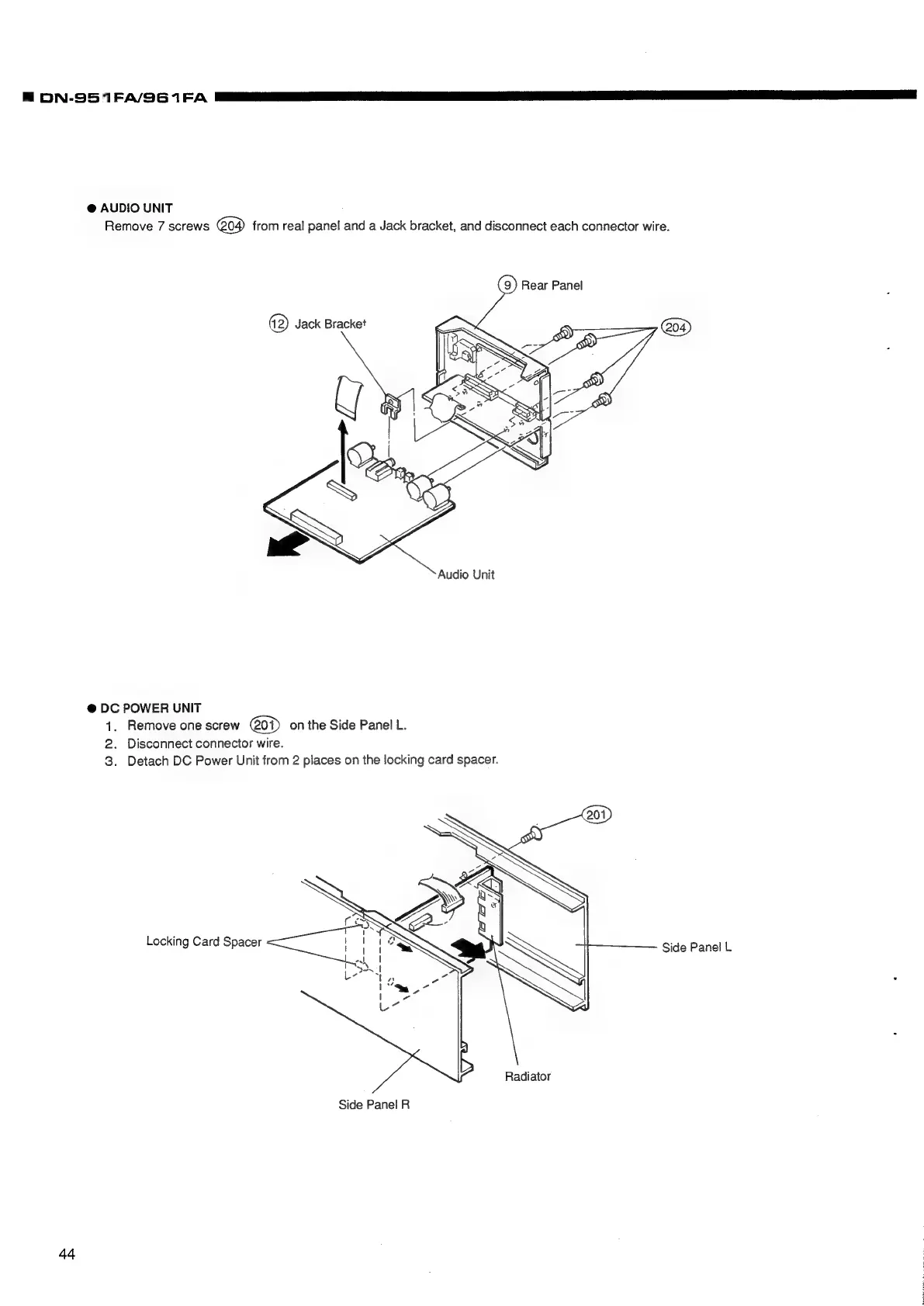

ON-95
1
EA/S
G6
1
FA
@
AUDIO
UNIT
Remove
7
screws
@04)
from
real
panel
and
a
Jack
bracket,
and
disconnect
each
connector
wire.
(9)
Rear
Panel
(2)
Jack
Bracket
Audio
Unit
@
DC
POWER
UNIT
1.
Remove
one
screw
on
the
Side
Panel
L.
2.
Disconnect
connector
wire.
3.
Detach
DC
Power
Unit
from
2
places
on
the
locking
card
spacer.
Side
Panel
L
Radiator
Side
Panel
R
