DN-951FA/961FA Ml

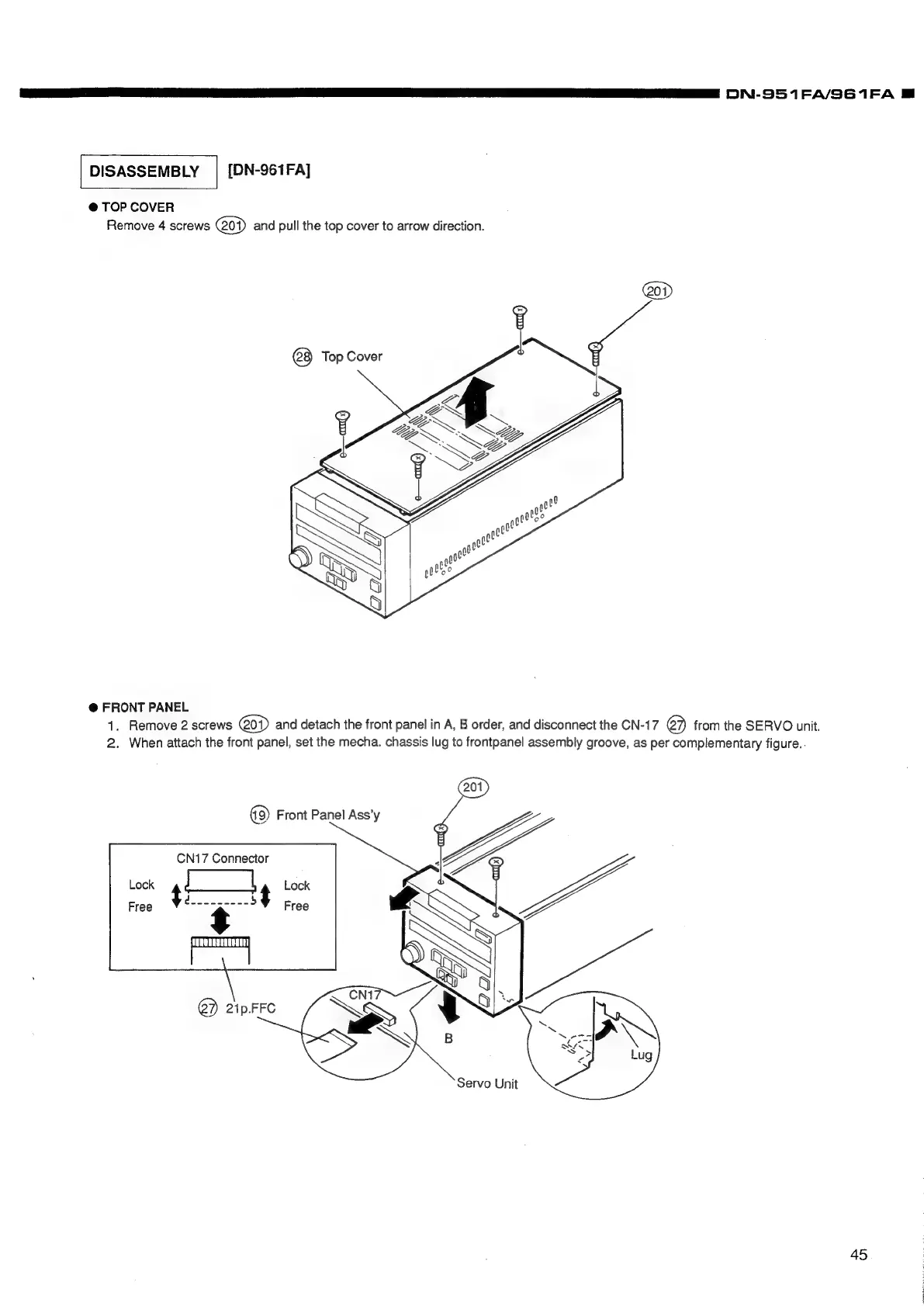

DISASSEMBLY | [DN-961FA]
@ TOP COVER
Remove 4 screws and pull the top cover to arrow direction.
@8 Top Cover
@ FRONT PANEL
1. Remove 2 screws and detach the front panel in A, B order, and disconnect the CN-17 @?) from the SERVO unit.
2. When attach the front panel, set the mecha. chassis lug to frontpanel assembly groove, as per complementary figure. .
49) Front Panel Ass’y
CN17 Connector
Free
Servo Unit
