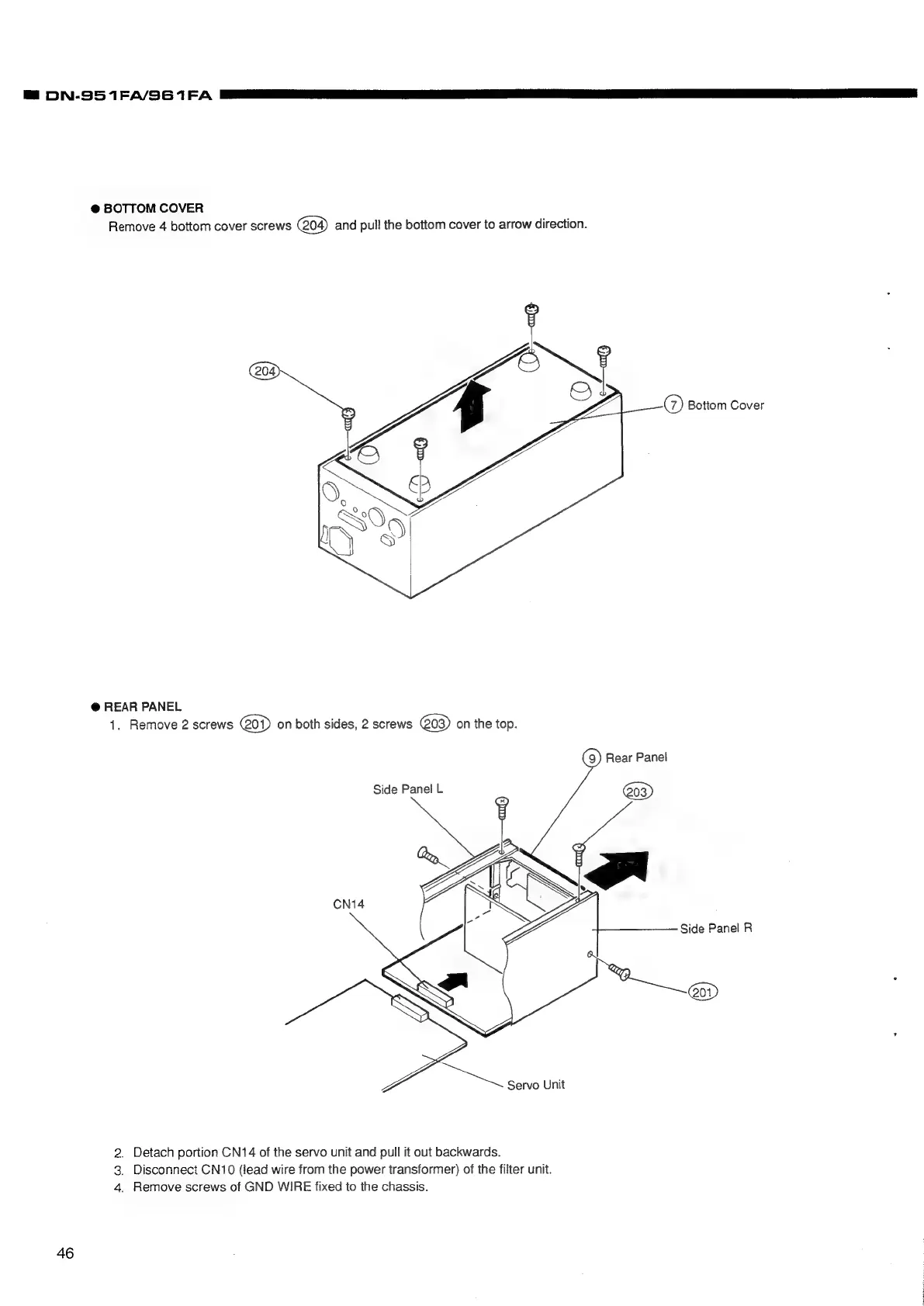

@ BOTTOM COVER
Remove 4 bottom cover screws and pull the bottom cover to arrow direction.
@ Bottom Cover
@ REAR PANEL
1. Remove 2 screws on both sides, 2 screws on the top.
Side Panel L
Side Panel R
es Servo Unit
2. Detach portion CN14 of the servo unit and pull it out backwards.
3. Disconnect CN10 (lead wire from the power transformer) of the filter unit.
4, Remove screws of GND WIRE fixed to the chassis.
