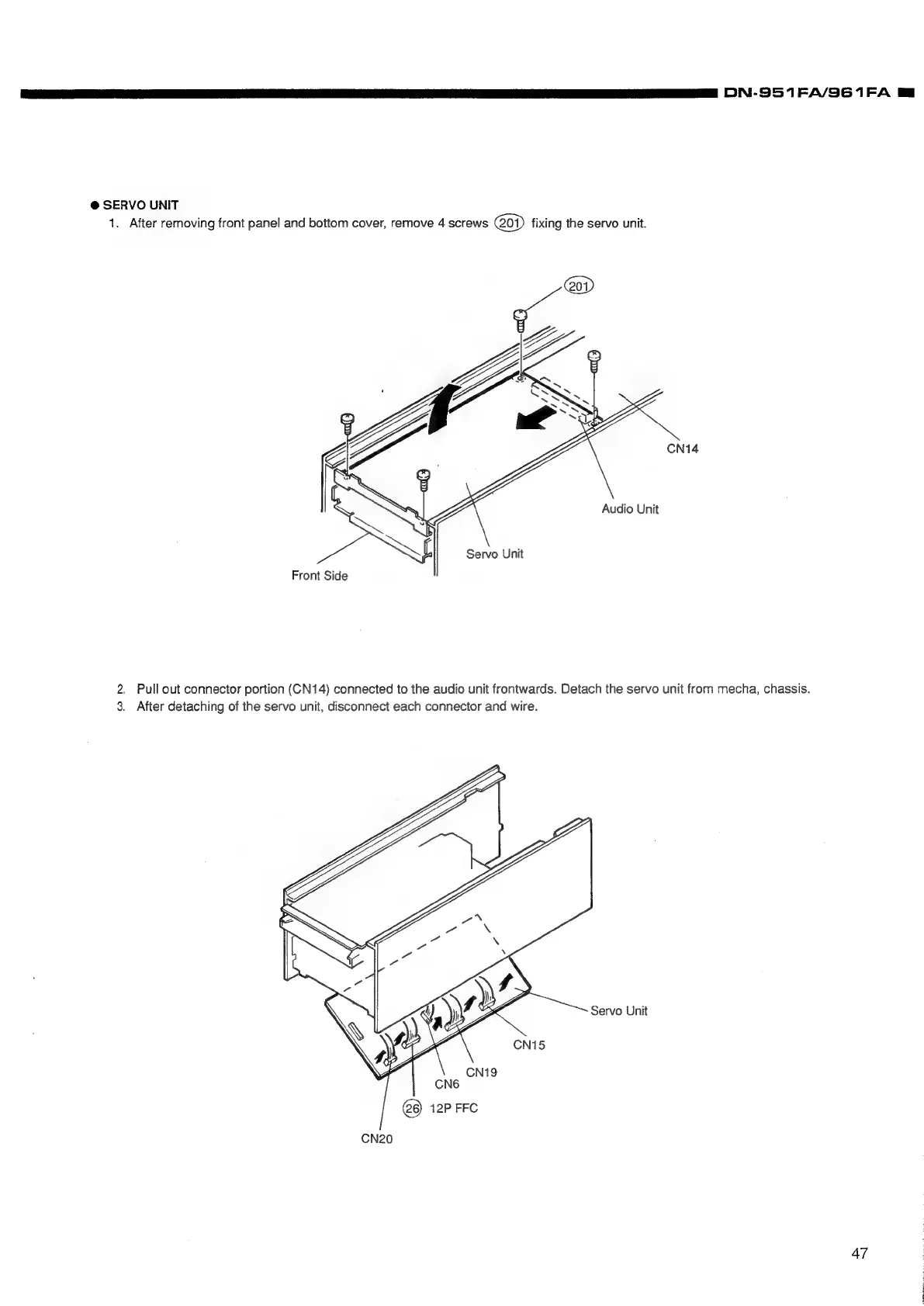

DN-951FA/961FA
Mf
@
SERVO
UNIT
1.
After
removing
front
panel
and
bottom
cover,
remove
4
screws
fixing
the
servo
unit.
CN14
Audio
Unit
Servo
Unit
Front
Side
2,
Pull
out
connector
portion
(CN14)
connected
to
the
audio
unit
frontwards.
Detach
the
servo
unit
from
mecha,
chassis.
3.
After
detaching
of
the
servo
unit,
disconnect
each
connector
and
wire.
Servo
Unit
(26)
12P
FFC
CN20
47
