BA DN-95 TEA/SG 7 FA Seana Ee ee,
48

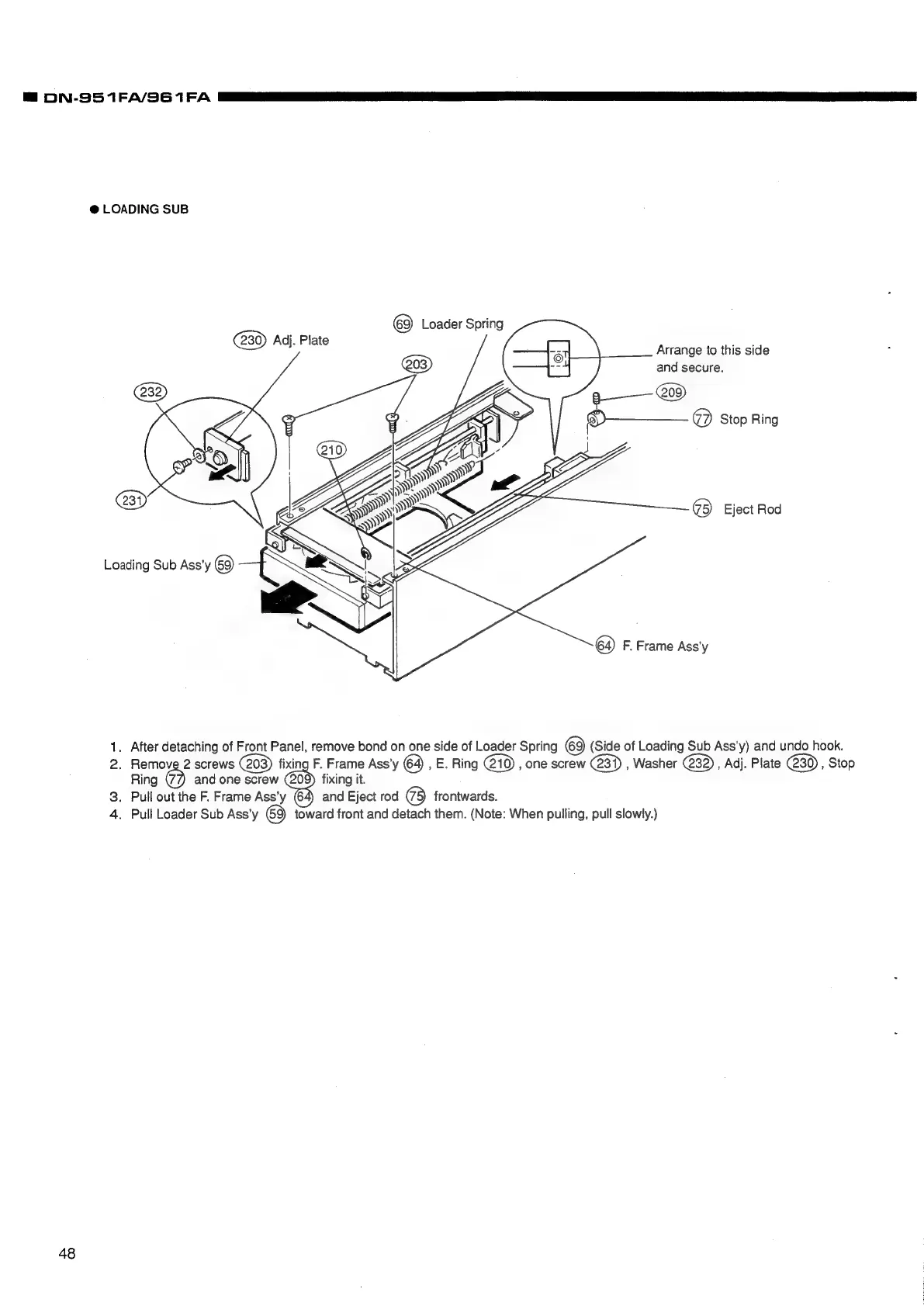

@ LOADING SUB
Loader Spring
Adj. Plate
Arrange to this side
and secure.
5— @7 Stop Ring
@5) Eject Rod
F. Frame Ass'y
1. After detaching of Front Panel, remove bond on one side of Loader Spring (Side of Loading Sub Ass’y) and undo hook.
2. Remove 2 screws fixing F. Frame Ass’y , E. Ring ,one screw @3) , Washer @3d) , Adj. Plate , Stop
Ring and one screw (209) fixing it.
3. Pull out the F. Frame Ass’y and Eject rod ) frontwards.
4. Pull Loader Sub Ass’y toward front and detach them. (Note: When pulling, pull slowly.)
