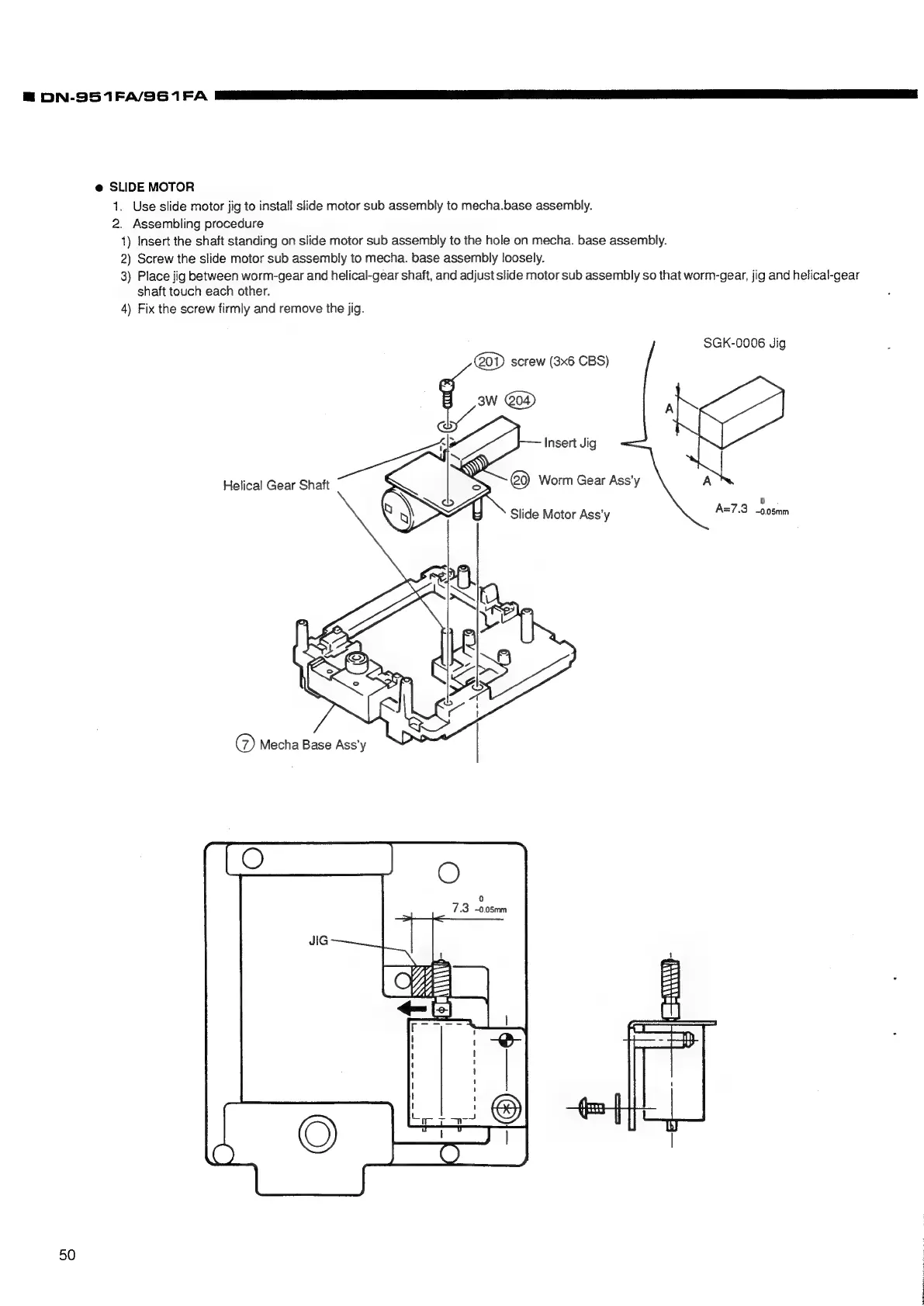

e@ SLIDE MOTOR
1. Use slide motor jig to install slide motor sub assembly to mecha.base assembly.
2. Assembling procedure
1) Insert the shaft standing on slide motor sub assembly to the hole on mecha. base assembly.
2) Screw the slide motor sub assembly to mecha. base assembly loosely.
3) Place jig between worm-gear and helical-gear shaft, and adjust slide motor sub assembly so that worm-gear, jig and helical-gear
shaft touch each other.
4) Fix the screw firmly and remove the jig.
SGK-0006 Jig
screw (3x6 CBS)
3W :
dy”
A
Insert
Jig
Worm Gear Ass'y A
6
Helical Gear Shaft
0
A=7.3 ~o.05mm
Slide Motor Ass’y
y
ESS
