DN-951FA/S61FA Hl

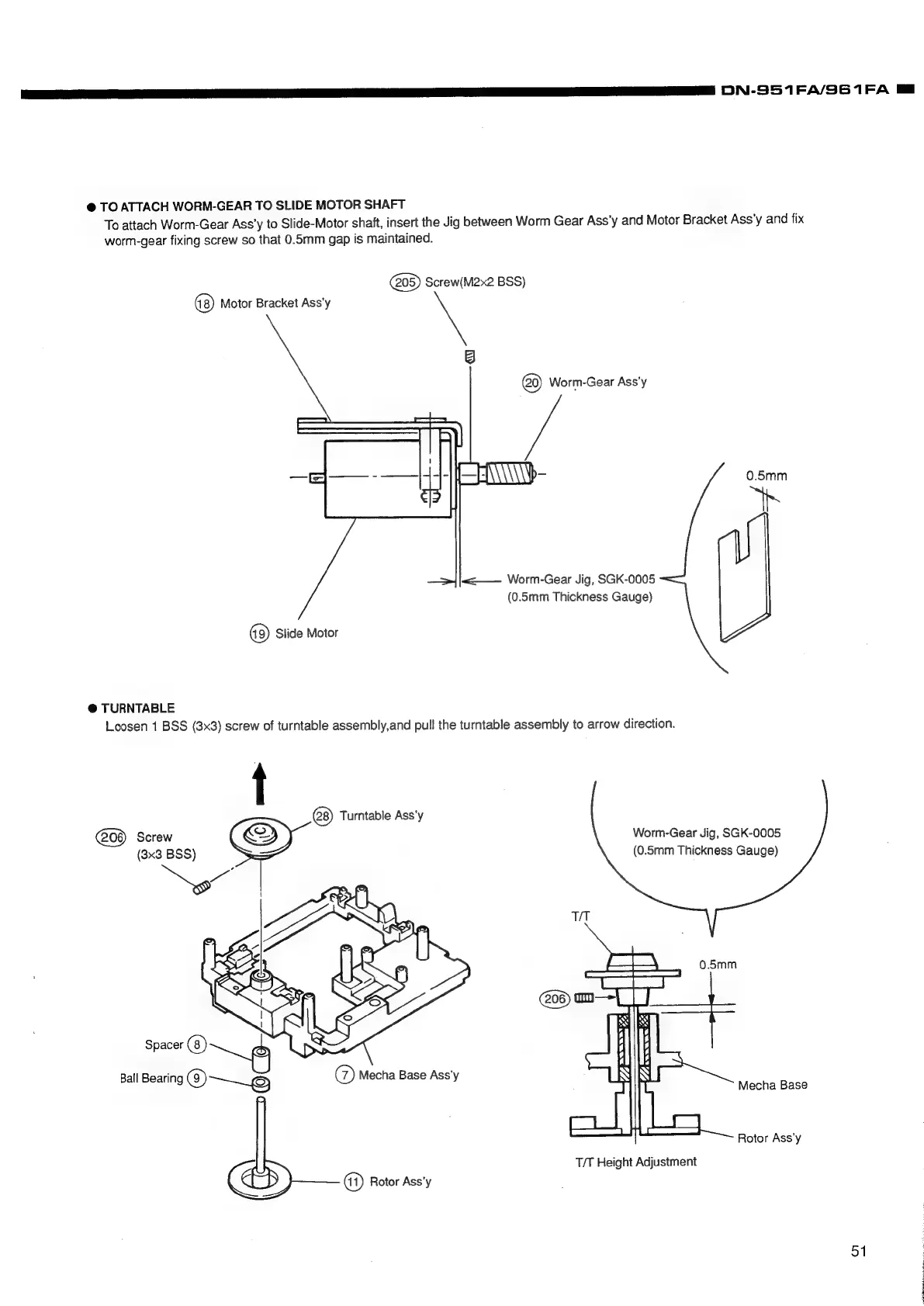

@ TO ATTACH WORM-GEAR TO SLIDE MOTOR SHAFT
To
attach
Worm-Gear
Ass’y
to
Slide-Motor
shaft,
insert
the
Jig
between
Worm
Gear
Ass'y
and
Motor
Bracket
Ass’y
and
fix
worm-gear
fixing
screw
so
that
0.5mm
gap
is
maintained.
Screw(M2x2 BSS)
Motor Bracket Ass'y
xn]
Worm-Gear Ass'y
ame
1—F\\\b-
0.5mm
j<z<—_— Worm-Gear Jig, SGK-0005
(0.5mm Thickness Gauge)
Slide Motor
@ TURNTABLE
Loosen 1 BSS (3x3) screw of turntable assembly,and pull the turntable assembly to arrow direction.
Worm-Gear Jig, SGK-0005
(0.5mm Thickness Gauge)
Turntable Ass'y
Screw
(3x3 BSS) =
Nsw |
Spacer 2
Ball Bearing ©——_© @) Mecha Base Ass'y
Mecha Base
Rotor Ass'y
T/T Height Adjustment
@®) Rotor Ass’y
51
