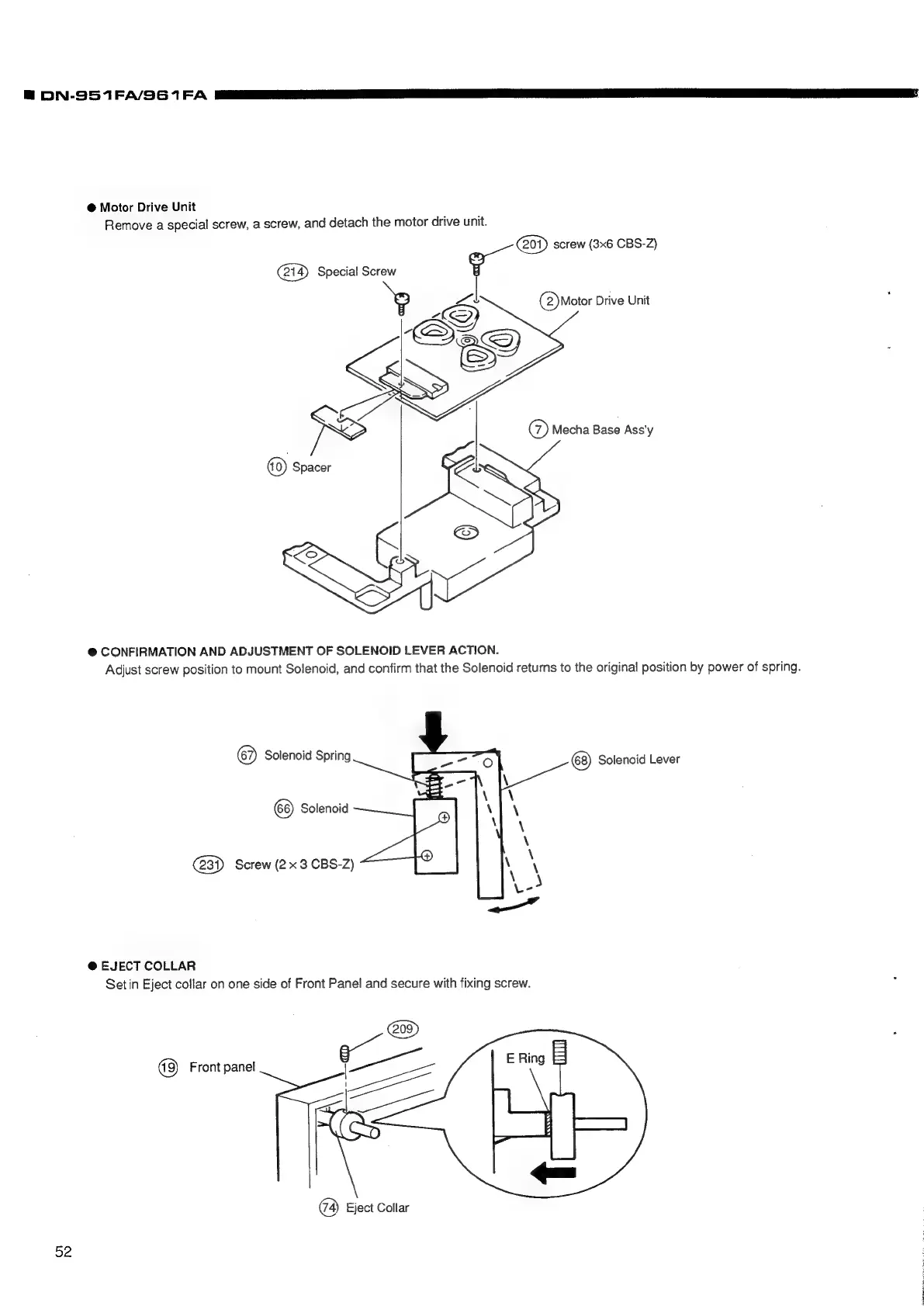

@ ON-95 1FA/96 1FA
@ Motor Drive Unit
Remove
a
special
screw,
a
screw,
and
detach
the
motor
drive
unit.
screw (3x6 CBS-Z)
Special Screw
zs
—
CC @ Mecha Base Ass'y
ee | ee
QS
@ CONFIRMATION AND ADJUSTMENT OF SOLENOID LEVER ACTION.
Adjust
screw
position
to
mount
Solenoid,
and
confirm
that
the
Solenoid
returns
to
the
original
position
by
power
of
spring.
(2) Motor Drive Unit
oS
Solenoid Spring Solenoid Lever
Solenoid
(37) Screw (2 x 3 CBS-Z)
@ EJECT COLLAR
Setin Eject collar on one side of Front Panel and secure with fixing screw.
Front panel _
2) Eject Collar
