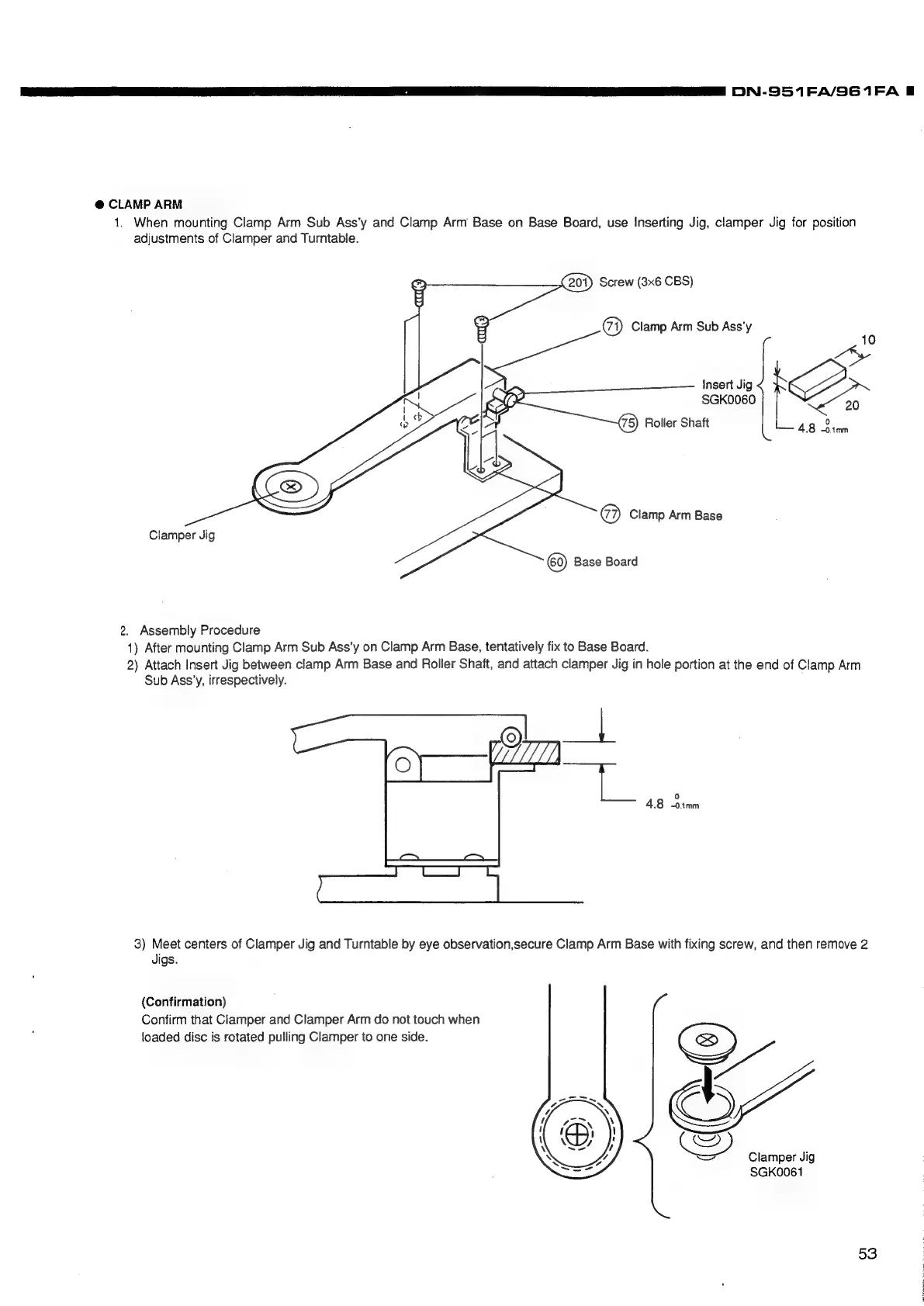

@ CLAMP ARM
1. When mounting Clamp Arm Sub Ass’y and Clamp Arm Base on Base Board, use Inserting Jig, clamper Jig for position
adjustments of Clamper and Turntable.
201) Screw (3x6 CBS)
77) Clamp Arm Sub Ass’y
Insert Jig A
SGK0060
20
Roller
Shaft
4.8
31mm
@ Clamp Arm Base
Clamper Jig
Base Board
2. Assembly Procedure
1) After mounting Clamp Arm Sub Ass’y on Clamp Arm Base, tentatively fix to Base Board.
2) Attach Insert Jig between clamp Arm Base and Roller Shaft, and attach clamper Jig in hole portion at the end of Clamp Arm
Sub Ass’y, irrespectively.
3) Meet centers of Clamper Jig and Turntable by eye observation,secure Clamp Arm Base with fixing screw, and then remove 2
Jigs.
(Confirmation)
Confirm that Clamper and Clamper Arm do not touch when
loaded disc is rotated pulling Clamper to one side.
4 Clamper Jig
SGKO0061
