Denon DN-951FA - Page 65

ee
N-951FA/I6
1FA

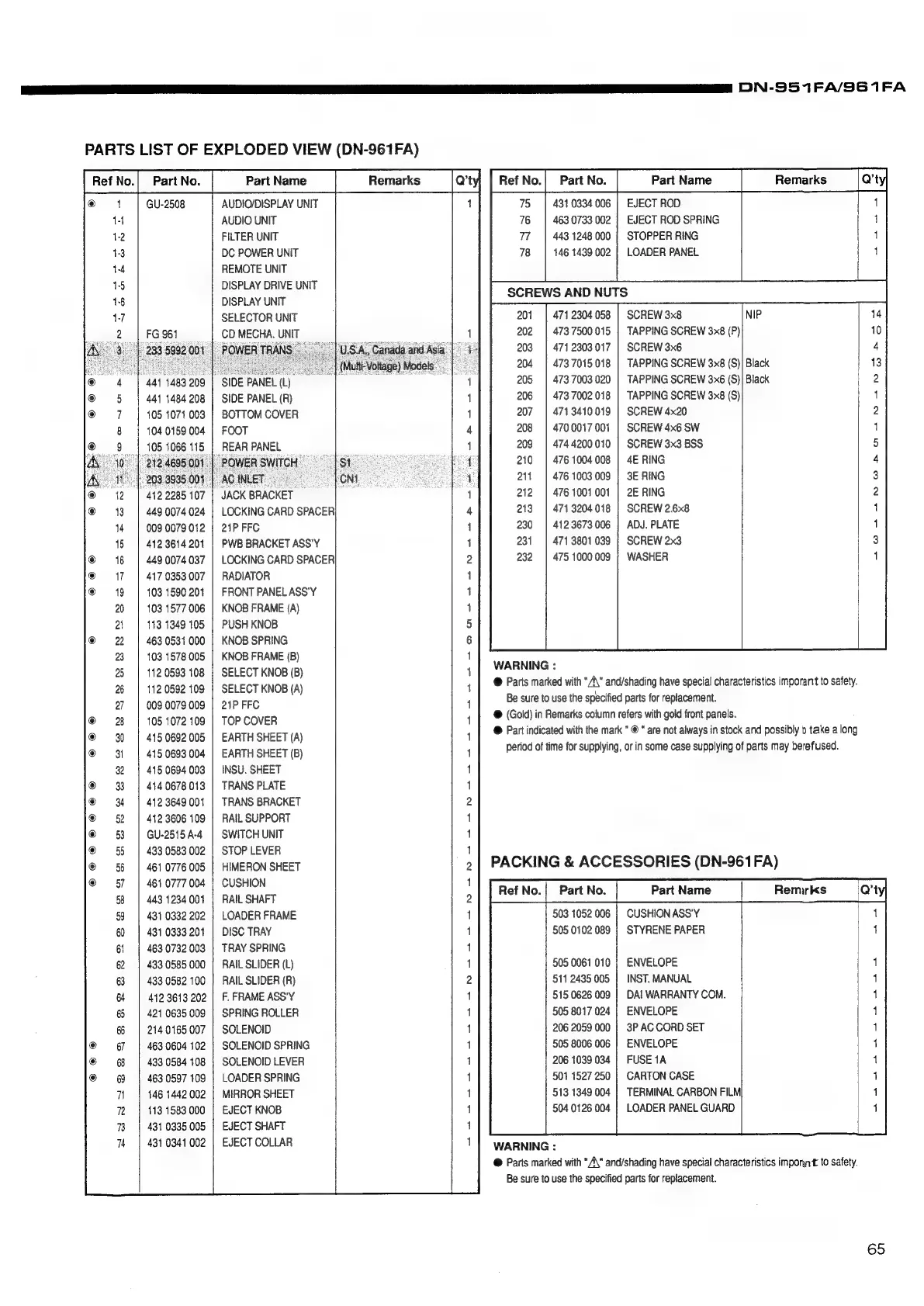

PARTS LIST OF EXPLODED VIEW (DN-961FA)
Sein] Poe; [ Pavone Remaris [0
GU-2508 AUDIO/DISPLAY UNIT
AUDIO UNIT
FILTER UNIT
DC POWER UNIT
REMOTE UNIT
DISPLAY DRIVE UNIT
DISPLAY UNIT
SELECTOR UNIT
CD MECHA. UNIT
Ref No.| Part No. Part Name Remarks
431 0334 006 | EJECT ROD
463 0733 002 | EJECT ROD SPRING
443 1248 000 | STOPPER RING
146 1439 002 | LOADER PANEL
SCREWS AND NUTS
471 2304 058 | SCREW 3x8
473 7500015 | TAPPING SCREW 3x8 (P)
471 2303017 | SCREW 3x6
473 7015018 | TAPPING SCREW 3x8 (S)| Black
473 7003 020 | TAPPING SCREW 3x6 (S)| Black
473 7002 018 | TAPPING SCREW 3x8 (S)
471 3410019 | SCREW 4x20
470 0017 001 | SCREW 4x6 SW
474 4200010 | SCREW 3x3 BSS
476 1004008 | 4E RING
476 1003 009 | 3E RING
476 1001001 | 2E RING
471 3204018 | SCREW 2.6x8
412 3673006 | ADJ. PLATE
471 3801 039 | SCREW 2x3
475 1000 009 | WASHER
ao >
441 1483 209 | SIDE PANEL (L)
441 1484 208 | SIDE PANEL (R)
105 1071 003 | BOTTOM COVER
104 0159 004 | FOOT
105 1066 115 | REAR PANEL
: NER SWITCH
“412 2285 107
449 0074 024 | LOCKING CARD SPACER
009.0079 012 | 21P FFC
4123614201 | PWB BRACKET ASS'Y
449 0074037 | LOCKING CARD SPACER
4170353007 | RADIATOR
103 1590 201 | FRONT PANEL ASS'Y
103 1577006 | KNOB FRAME (A)
113 1349 105 | PUSH KNOB
463 0531 000 | KNOB SPRING
103 1578005 | KNOB FRAME (B)
112.0593 108 | SELECT KNOB (B)
112.0592 109 | SELECT KNOB (A)
009 0079 009 | 21P FFC
105 1072 109 | TOP COVER
415.0692.005 | EARTH SHEET (A)
415.0693 004 | EARTH SHEET (B)
415 0694 003 | INSU. SHEET
414.0678. 013 | TRANS PLATE
412.3649 001 | TRANS BRACKET
412 3606 109 | RAIL SUPPORT
GU-2515.A-4 | SWITCH UNIT
433 0583 002 | STOP LEVER
4610776 005 | HIMERON SHEET
4610777004 | CUSHION
443 1234001 | RAIL SHAFT
431 0332 202 | LOADER FRAME
431 0333 201 | DISC TRAY
463 0732003 | TRAY SPRING
433 0585 000 | RAIL SLIDER (L)
433 0582 100 | RAIL SLIDER (R)
412.3613 202 | F. FRAME ASS'Y
421.0635 009 | SPRING ROLLER
2140165007 | SOLENOID
463.0604 102 | SOLENOID SPRING
433 0584 108 | SOLENOID LEVER
463 0597 109 | LOADER SPRING
146 1442002 | MIRROR SHEET
{13 1583000 | EJECT KNOB
431 0335005 | EJECT SHAFT
431 0341 002 | EJECT COLLAR
—~oOo8 ou wOR Mo = PD
WARNING :
@ Parts marked with "/A\" and/shading have special characteristics imporant to safety.
Be sure to use the specified parts for replacement.
@ (Gold) in Remarks column refers with gold front panels.
@ Part indicated with the mark " ® " are not always in stock and possibly 0 take a long
period of time for supplying, or in some case supplying of parts may berefused.
PACKING & ACCESSORIES (DN-961FA)
Part No. Part Name Remirks
503 1052 006 | CUSHION ASS'Y
505 0102 089 ; STYRENE PAPER
505 0061010 | ENVELOPE
511 2435 005 | INST. MANUAL
515 0626 009 | DA! WARRANTY COM.
505 8017 024 | ENVELOPE
206 2059 000 | 3P AC CORD SET
505 8006 006 | ENVELOPE
206 1039 034 | FUSE 1A
501 1527 250 | CARTON CASE
513 1349 004 | TERMINAL CARBON FILM
504 0126 004 | LOADER PANEL GUARD
WARNING :
@ Parts marked with "/A\" and/shading have special characteristics imporynt to safety.
Be sure to use the specified parts for replacement.
65
