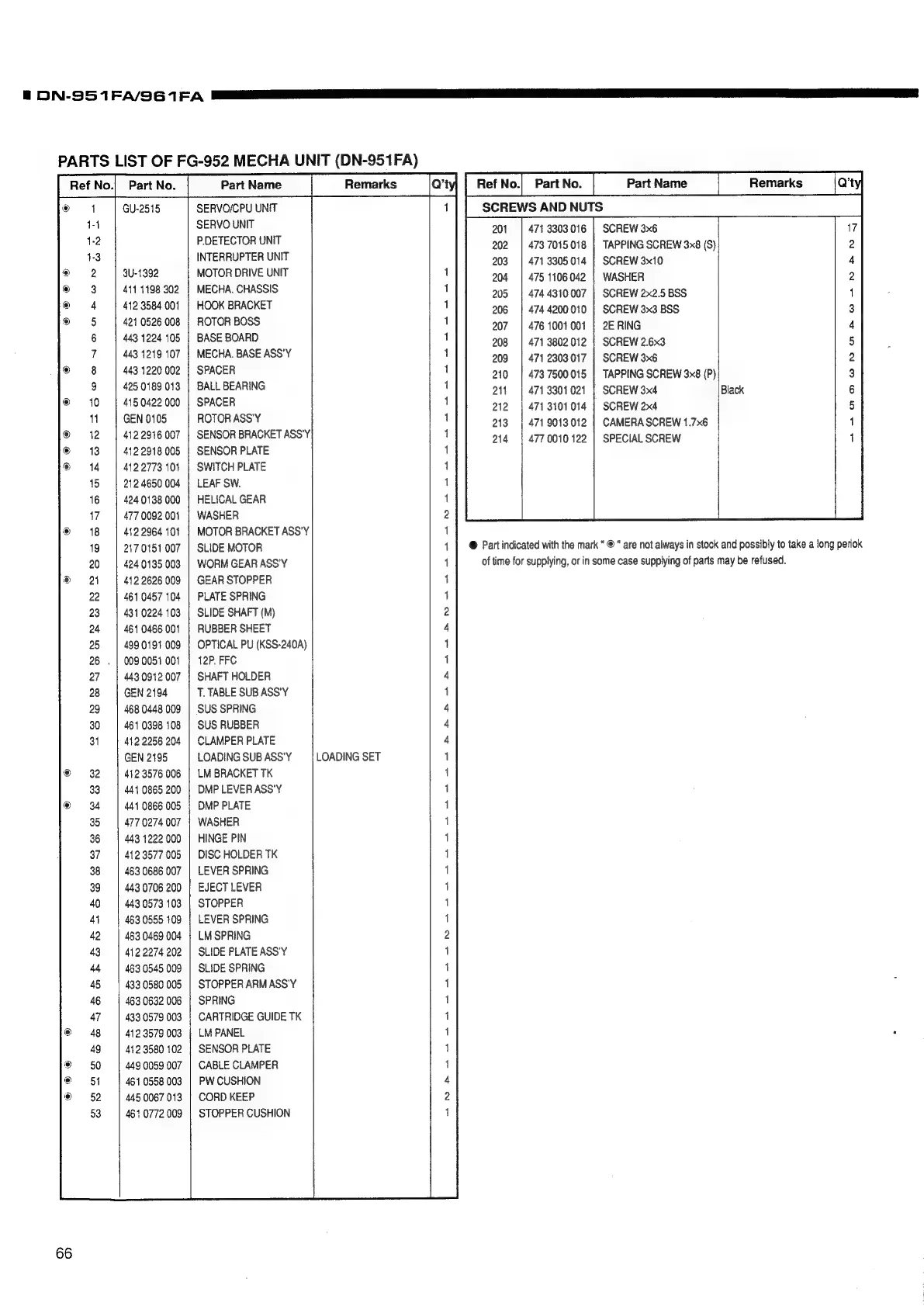

PARTS LIST OF FG-952 MECHA UNIT (DN-951FA)
Ref No.| Part No. Part Name | Remarks [Q'ty
SERVO/CPU UNIT
SERVO UNIT
P.DETECTOR UNIT
INTERRUPTER UNIT
3U-1392 MOTOR DRIVE UNIT
4111198 302 | MECHA. CHASSIS
412 3584 001 | HOOK BRACKET
421 0526 008 | ROTOR BOSS
443 1224 105 | BASE BOARD
443 1219 107 | MECHA. BASE ASS'Y
443 1220 002 | SPACER
425 0189 013 | BALL BEARING
4150422 000 | SPACER
GEN 0105 ROTOR ASS'Y
412 2916 007 | SENSOR BRACKET ASS'Y
412 2918005 | SENSOR PLATE
412.2773 101 | SWITCH PLATE
212 4650 004 | LEAF SW.
424.0138 000 | HELICAL GEAR
477 0092 001 | WASHER
412 2964 101 | MOTOR BRACKET ASS'Y
2170151007 | SLIDE MOTOR
424.0135 003 | WORM GEAR ASS'Y
412 2626 009 | GEAR STOPPER
4610457 104 | PLATE SPRING
431 0224 103 | SLIDE SHAFT (M)
4610466001 | RUBBER SHEET
499 0191009 | OPTICAL PU (KSS-240A)
0090051001 | 12P. FFC
4430912007 | SHAFT HOLDER
GEN 2194 T. TABLE SUB ASS'Y
468 0448 009 | SUS SPRING
461 0398 108 | SUS RUBBER
412 2256 204 | CLAMPER PLATE
GEN 2195 LOADING SUB ASS'Y LOADING SET
412 3576 006 | LM BRACKET TK
4410865 200 | DMP LEVER ASS'Y
441 0866 005 | DMP PLATE
477 0274 007 | WASHER
443 1222 000 | HINGE PIN
412 3577005 | DISC HOLDER TK
463 0686 007 | LEVER SPRING
443 0706 200 | EJECT LEVER
443 0573 103 | STOPPER
463 0555 109 | LEVER SPRING
463 0469 004 | LM SPRING
412 2274 202 | SLIDE PLATE ASS'Y
463 0545 009 | SLIDE SPRING
433 0580 005 | STOPPER ARMASS'Y
463 0632 006 | SPRING
433 0579 003 | CARTRIDGE GUIDE TK
4123579003 | LM PANEL
412 3580 102 | SENSOR PLATE
449 0059 007 | CABLE CLAMPER
461 0558003 | PW CUSHION
445 0067013 | CORD KEEP
4610772009 | STOPPER CUSHION
Ref No.| Part No. Part Name Remarks
SCREWS AND NUTS
471 3303 016 | SCREW 3x6
473 7015 018 | TAPPING SCREW 3x8 (S}
471 3305 014 | SCREW 3x10
475 1106 042 | WASHER
474 4310 007 | SCREW 2x2.5 BSS
474 4200 010 | SCREW 3x3 BSS
476 1001 001 | 2E RING
471 3802 012 | SCREW 2.6x3
471 2303017 | SCREW 3x6
473 7500 015 | TAPPING SCREW 3x8 (P)
471 3301021 | SCREW 3x4
471 3101014 | SCREW 2x4
471 9013012 | CAMERA SCREW 1.7x6
477 0010 122 | SPECIAL SCREW
—-~ SF oO DMWNnN Ok WwW — PY Sf PT
@ Part indicated with the mark “ © " are not always in stock and possibly to take a long periok
of time for supplying, or in some case supplying of parts may be refused.
