Denon DN-C635 - EXPLODED VIEW OF CD MECHANISM UNIT (CD11 FT3 NF); PARTS LIST OF CD MECHANISM UNIT

40
40
DN-C635

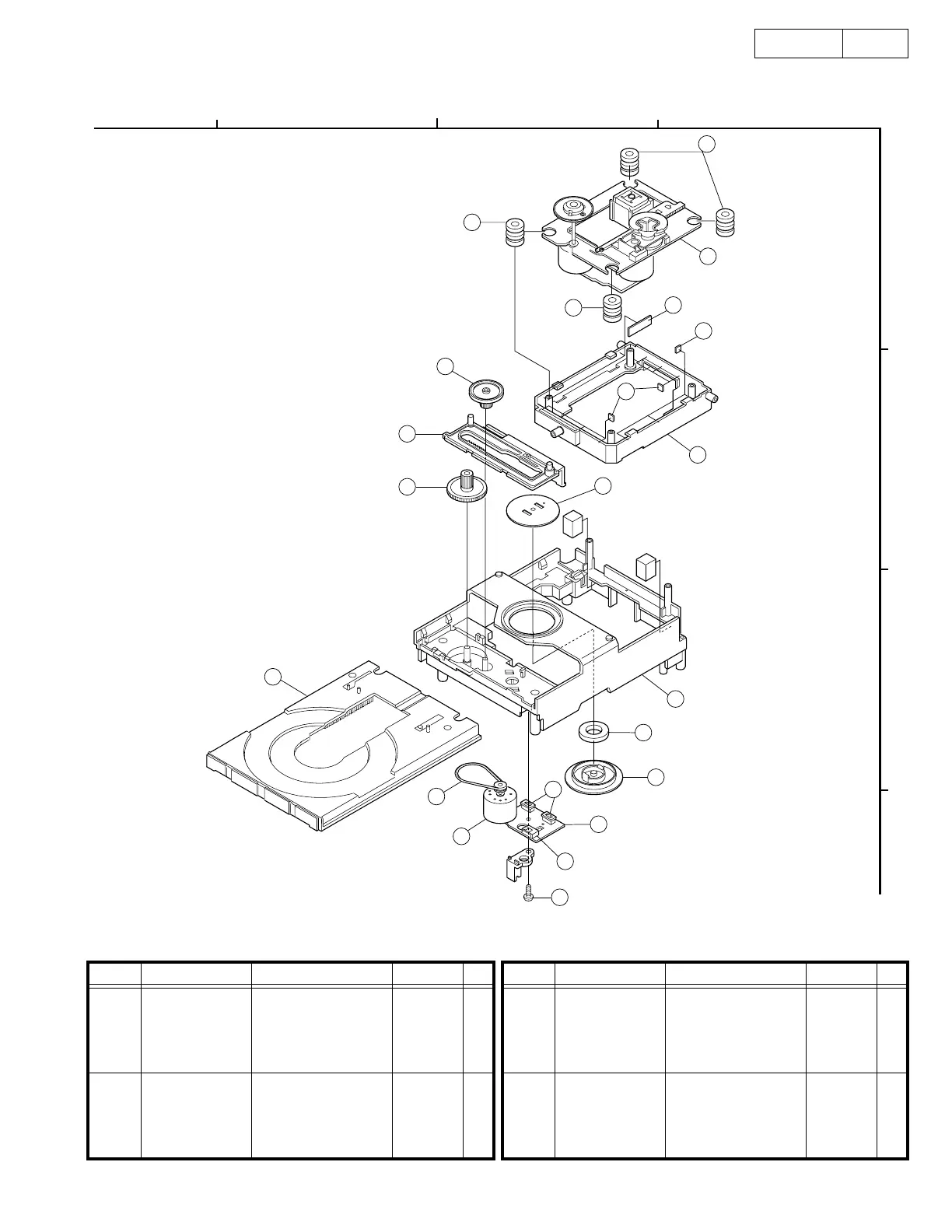

EXPLODED VIEW OF CD MECHANISM UNIT (CD11FT3NF)
4
20
3
3
17
16
11
16
8
7
6
2
1
10
5
9
12
13
19
14
18
15
C
B
A
4
32
1
PARTS LIST OF CD MECHANISM UNIT
Ref. No. Part No. Part Name Remarks Q'ty
1 00D 964 0009 006 Frame chassis 1
2 00D 964 0009 103 Magnet plate 1
3 00D 964 0009 200 Rubber cushion 2
4 00D 964 0009 307 Rubber cushion 2
5 00D 964 0009 404 Magnet holder 1
6 00D 964 0009 501 Drive gear 1
7 00D 964 0009 608 Slide gear 1
8 00D 964 0009 705 Pulley gear 1
9 00D 964 0009 802 Square belt 1
10 00D 964 0009 909 Magnet 1
11 00D 964 0010 008 Mecha filter 1
12 00D 964 0010 105 Loading table 1
13 00D 964 0010 901 Loading moter 1
14 00D 964 0010 202 5P Pulg 1
15 00D 964 0010 309 Push switch 2-1 2
16 00D 964 0010 406 Cushion 9
17 00D 964 0010 503 Cushion 2
18 00D 964 0010 600 Motor P.W.B. 2
19 00D 964 0010 707 Screw 3x8 SCR S-TPG BIN 1
20 00D 964 0011 007 Mecha DA11T3CNF 1
Ref. No. Part No. Part Name Remarks Q'ty
