Denon DN-C635 - Exploded view of CD Mechanism unit (CD11 FT3 NF)

49
49
DN-C635

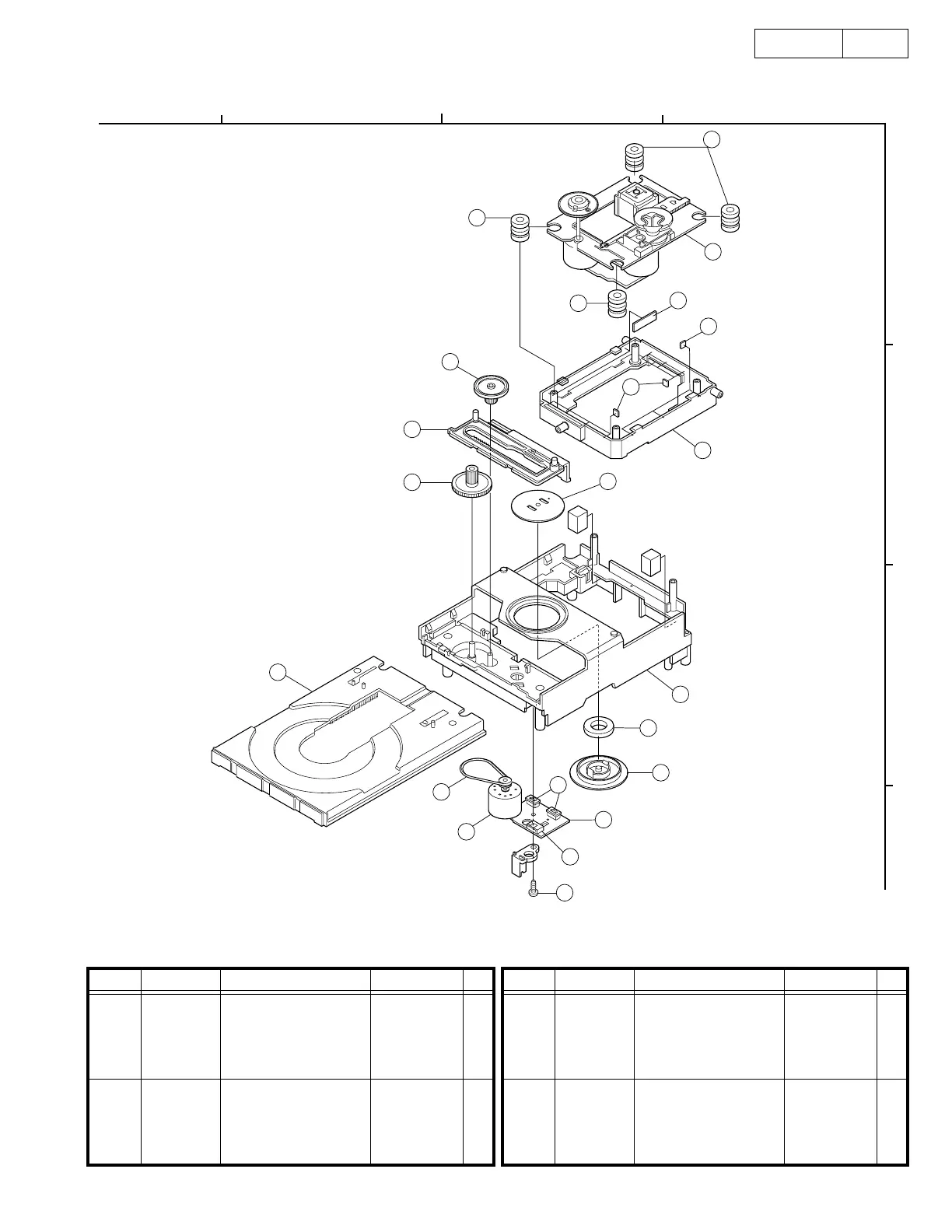

Exploded view of CD Mechanism unit (CD11FT3NF)
Details of Recycle parts for CD Mechanism unit
＊ You have to remove the parts that marked “WEEE Mark ◆ “ when the recycling processing. (Europe model only)
4
20
3
3
17
16
11
16
8
7
6
2
1
10
5
9
12
13
19
14
18
15
C
B
A
4
32
1
◆
◆
Ref. No. WEEE Mark Part Name Material Q'ty
1 Frame chassis ABS 1
2 Magnet plate Steel 1
3 Rubber cushion Rubber 2
4 Rubber cushion Rubber 2
5 Magnet holder ABS 1
6Drive gearPOM1
7 Slide gear ABS 1
8 Pulley gear POM 1
9 Square belt Rubber 1
10 Magnet Steel 1
11 Mecha filter ABS 1
12 Loading table ABS 1
13 Loading moter Complex 1
14 5P Pulg Complex 1
15 Push switch 2-1 Complex 2
16 Cushion Rubber 9
17 Cushion Rubber 2
18
◆
Motor P.W.B. Complex 2
19 Screw 3x8 SCR S-TPG BIN Steel 1
20
◆
Mecha DA11T3CNF Complex 1
Ref. No. WEEE Mark Part Name Material Q'ty
