W5-W8
R0Q8-W1
i W5-W8
r,t
Q1-Q7
W2-W4
•Please use Master, Monitor, and Mix knobs on
Virtual DJ for these controls when the Output
is set to “HEADPHONES” in Virtual DJ’s Settings.

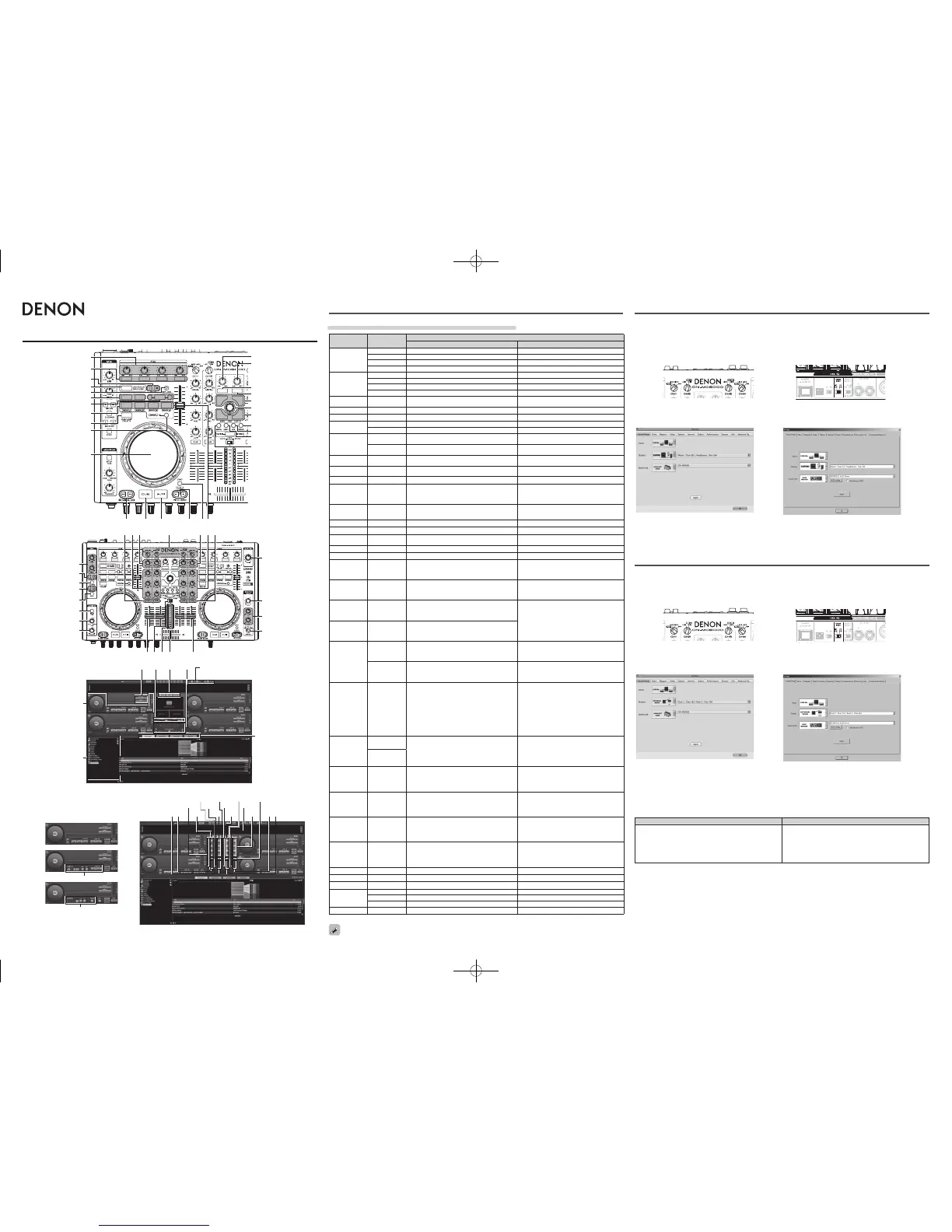

DN-MC6000 Quick Guide for Virtual DJ
D&M Holdings Inc.
Printed in China 9415 43004 330P
Function table
DN–MC6000
Button/Knob No.
DN–MC6000
CONTROLS
FUNCTIONALITY
Push / Rotate SHIFT + / (SAMP. +)
q
EFX.1 knob
Selects effect type. –
EFX.2 knob
Controls parameter1. –
EFX.3 knob
Controls parameter2. –
EFX.4 knob
Controls fi lter cutoff. – / (Controls the volume of sample.)
w
EFX.1
Switches the selected effect on and off. –
EFX.2
Effect buttons 1 (Only supported in selected effect plugins). –
EFX.3
Effect buttons 2 (Only supported in selected effect plugins). –
EFX.4
Resets fi lter (off). – / (Plays or stops sample.)
e
FX 1/2
FX1: Flanger on/off.
FX2: Beat Grid on/off.
FX1: Brake on/off
FX2: Backspin on/off
r
DECK CHG. Deck changes between A and C, or B and D. Selects PLAYER/LOOPS/EFFECTS screen on the DECK.
t
KEYLOCK Switches key lock feature on and off. TAP feature.
y
LOOP IN Sets Loop In point. Clear the LOOP.
LOOP OUT Sets Loop Out point. Clear the LOOP.
u
+/– Edits the Loop Size.
Moves the loop left/right by 4 beats. /
(Adjusts sample length by halving/doubling it.)
AUTO LOOP Switches Auto Loop feature on and off.
Switches smart loop on/off.
/ (Switches sample loop on/off)
i
CUE1–4
(SAMP.1–4)
SAMP.mode=OFF : Sets Cue point and play.
SAMP.mode=ON: Sets sample and sample play.
SAMP.mode=OFF : Clears CUE point.
SAMP.mode=ON: Stutter.
o
SHIFT
Deletes CUE or LOOP point / Shift function / Select Effect
mode.
–
Q0
SAMP. Selects CUE1–4 or SAMP.1–4. –
Q1
JOG WHEEL
Locate cue points, scratches the song playback or pitch
bend operation.
BROWSER: Scrolls fi le/folder list.
SAMPLER: Selects sample.
EFFECTS: Selects effect.
RECORD: –
Q2
FAST SEARCH +/–
Fast search feature.
+ : Forward.
– : Reverse.
+ : Bend mode (touch sense of DN–MC6000 off ) feature.
– : Vinyl mode (touch sense of DN–MC6000 on) feature.
Q3
CUE Sets current cue point, or back to current cue point. –
Q4
PLAY/PAUSE Play or Pause. –
Q5
PITCH BEND+/– Applies pitch bend.
+ : Pitch lock feature of DN–MC6000 on.
– : Pitch lock feature of DN–MC6000 off.
Q6
SYNC Automatic beat matching. Sets current Deck to the Master for SYNC feature.
Q7
PITCH FADER Adjusts the pitch. –
Q8
PARAM.1 knob
BROWSER: Selects video transition.
SAMPLER: Adjusts the sample volume on the left deck.
EFFECTS: Adjusts parameter #1 of the selected effect.
RECORD: –
BROWSER: –
SAMPLER: –
EFFECTS: –
RECORD: –
Q9
PARAM.2 knob
BROWSER: Selects video effect.
SAMPLER: Adjusts the sample volume on the right deck.
EFFECTS: Adjusts parameter #2 of the selected effect.
RECORD: –
BROWSER: Adjusts the parameter 2 for the selected effect.
SAMPLER: –
EFFECTS: –
RECORD: –
W0
PARAM.1
BROWSER: Activates selected video transition.
SAMPLER: Plays the sample on the left deck.
EFFECTS: Activates the selected effect on the left deck.
RECORD: –
BROWSER: –
SAMPLER: Stutter.
EFFECTS: –
RECORD: –
W1
PARAM.2
BROWSER: Activates selected video effect.
SAMPLER: Plays the sample on the right deck.
EFFECTS: Activates the selected effect on the right deck.
RECORD: –
W2
LOAD A
BROWSER: Loads the selected song on the deck A.
SAMPLER: Selects the sampler deck.
EFFECTS: Selects the effect deck.
RECORD: –
BROWSER: Loads the selected song on the deck C.
SAMPLER: –
EFFECTS: –
RECORD: –
LOAD B
BROWSER: Loads the selected song on the deck B.
SAMPLER: Selects the sampler deck.
EFFECTS: Selects the effect deck.
RECORD: –
BROWSER: Loads the selected song on the deck D.
SAMPLER: –
EFFECTS: –
RECORD: –
W3
Track select knob
(with SW)
ROTATE:
BROWSER: Scrolls fi le/folder list.
SAMPLER: Selects sample.
EFFECTS: Selects effect.
RECORD: –
PUSH :
BROWSER: Songs: Adds song to playlist.
z
Folders: Enters folder.
SAMPLER: Plays sample.
EFFECTS: Turns selected effect on/off.
RECORD: –
ROTATE: (Selects samples.)
PUSH :
BROWSER: Songs: Adds songs to sidelist.
z
Folders: Expands/collapses folder (If it has
subfolders.)
SAMPLER: Stutters sample.
EFFECTS: –
RECORD: Starts recording next track.
z
W4
BACK
BROWSER: Moves between folders, songs, playlist
z
and
sidelist*.
SAMPLER: Selects sample.
EFFECTS: Moves between Sound Effects, Video Effects and
Video Transitions.
RECORD: –
BROWSER: –
SAMPLER: –
EFFECTS: –
RECORD: –
FWD
W5
RECORD Jumps to RECORD slots.
MIDI channel of DN–MC6000 changes.
DECK CHG.= BLUE
DECK A = MIDI CHANNEL 13, DECK B = MIDI CHANNEL 15
DECK CHG.= RED
DECK C = MIDI CHANNEL 14, DECK D = MIDI CHANNEL 16
W6
EFX. Jumps to EFX slots.
MIDI channel of DN–MC6000 changes.
DECK CHG.= BLUE
DECK A = MIDI CHANNEL 9, DECK B = MIDI CHANNEL 11
DECK CHG.= RED
DECK C = MIDI CHANNEL 10, DECK D = MIDI CHANNEL 12
W7
SAMPLE Jumps to SAMPLE slots.
MIDI channel of DN–MC6000 changes.
DECK CHG.= BLUE
DECK A = MIDI CHANNEL 5, DECK B = MIDI CHANNEL 7
DECK CHG.= RED
DECK C = MIDI CHANNEL 6, DECK D = MIDI CHANNEL 8
W8
BROWSER Jumps to BROWSER slots.
MIDI channel of DN–MC6000 changes.
DECK CHG.= BLUE
DECK A = MIDI CHANNEL 1, DECK B = MIDI CHANNEL 3
DECK CHG.= RED
DECK C = MIDI CHANNEL 2, DECK D = MIDI CHANNEL 4
E7
CHANNEL FADER Controls the level of the selected channel. –
R0
CROSS FADER
Crossfade the output between the left and light decks.
–
R6
CHANNEL LEVEL Adjusts the level of the selected channel. –
R7
CHANNEL EQ HI Adjusts the Hi–frequency response. –
CHANNEL EQ MID Adjusts the Mid–frequency response. –
CHANNEL EQ LOW Adjusts the Low–frequency response. –
R8
CUE CH1–4 Controls PFL. –
z Function available in Virtual DJ Pro (or trial of Virtual DJ Pro, during the trial period).
Regarding Audio Setting for Mac, please refer to the “DN-MC6000_mac_confi guration_manual.pdf” in DN-MC6000
Resource CD-ROM attached.
Available for Virtual DJ control with DN-MC6000
R6,R7
E7 E7 E7E7
E9 E9 E9 E9
R6,R7 R6,R7
R8 R8 R8 R8
R6,R7
Q8
Q9
W0
W1
W2
W4
W5
W6
W8
W7
W3
Q2 Q3 Q4 Q5 Q6Q7
q
w
r
e
t
i
o
Q0
Q1
y
u
R1
R2
R3
R4
R8 R7 R6 R5 R6 R8R7
R0E7 E9E8 E7
W9
E0
E2
E1
E3
E4
E5
E6
Controlling four decks on Virtual DJ
Set the following items of DN-MC6000 and Virtual DJ.
n Setting of DN-MC6000
Channel input source switch knob (Top panel)
CH1: “MIDI” CH2: “USB1/2 + MIDI”
CH3: “USB3/4 + MIDI” CH4: “MIDI”
Mixing mode selector switch (Rear panel)
“PC MIX”
n Setting of Virtual DJ
GMacH
GPCH
Inputs: LINE INS
z
Outputs: EXTERNAL MIXER
z
(Deck1: Chan 1&2 / Deck2 : Chan 3&4)
Sound card: 4-IN
z
/4-OUT CARD (DN-MC6000)
Inputs: LINE INS
z
Outputs: EXTERNAL MIXER
z
(Deck1: Chan 1&2 / Deck 2: Chan 3&4)
Sound card: DENON DJ ASIO Driver
z Function available in Virtual DJ Pro (or trial of Virtual DJ Pro, during the trial period).
• Virtual DJ is a registered trademark of Atomix Productions.
Minimum system requirements:
Mac Platform PC Platform
• Intel
®
processor
• Mac OS X v10.5
• 1024x768 resolution
• CoreAudio compatible soundcard
• 1024MB RAM
• 50MB free on the hard drive
• Intel
®
Pentium® 4 or AMD Athlon™ XP
• 1024x768 resolution
• DirectX compatible soundcard
• 512MB RAM
• 50MB free on the hard drive
Features:
• Multi-deck support up to 99 independent zero-latency players
• One-click beat matching and synchronization (FAME algorithm)
• Time-Stretch and Master Tempo Pitch algorithms
• Automatic seamless and beat-aware LOOP functionality
• Synchronized sampler with 12 instant record and playback slots
• Real scratch simulation
• Automatic fi rst beat and last beat detection
• Automatic BPM and KEY calculation
y,u
q,w,e
DN-MC6000_QuickGuide_330_101115.indd 2 2010/11/17 11:11:50
