12
DN-S1000
SEMICONDUCTORS ／半導体一覧表
Only major semiconductors are shown, general semiconductors etc. are omitted to list.
主な半導体を記載しています。汎用の半導体は記載を省略しています。
1. IC’s

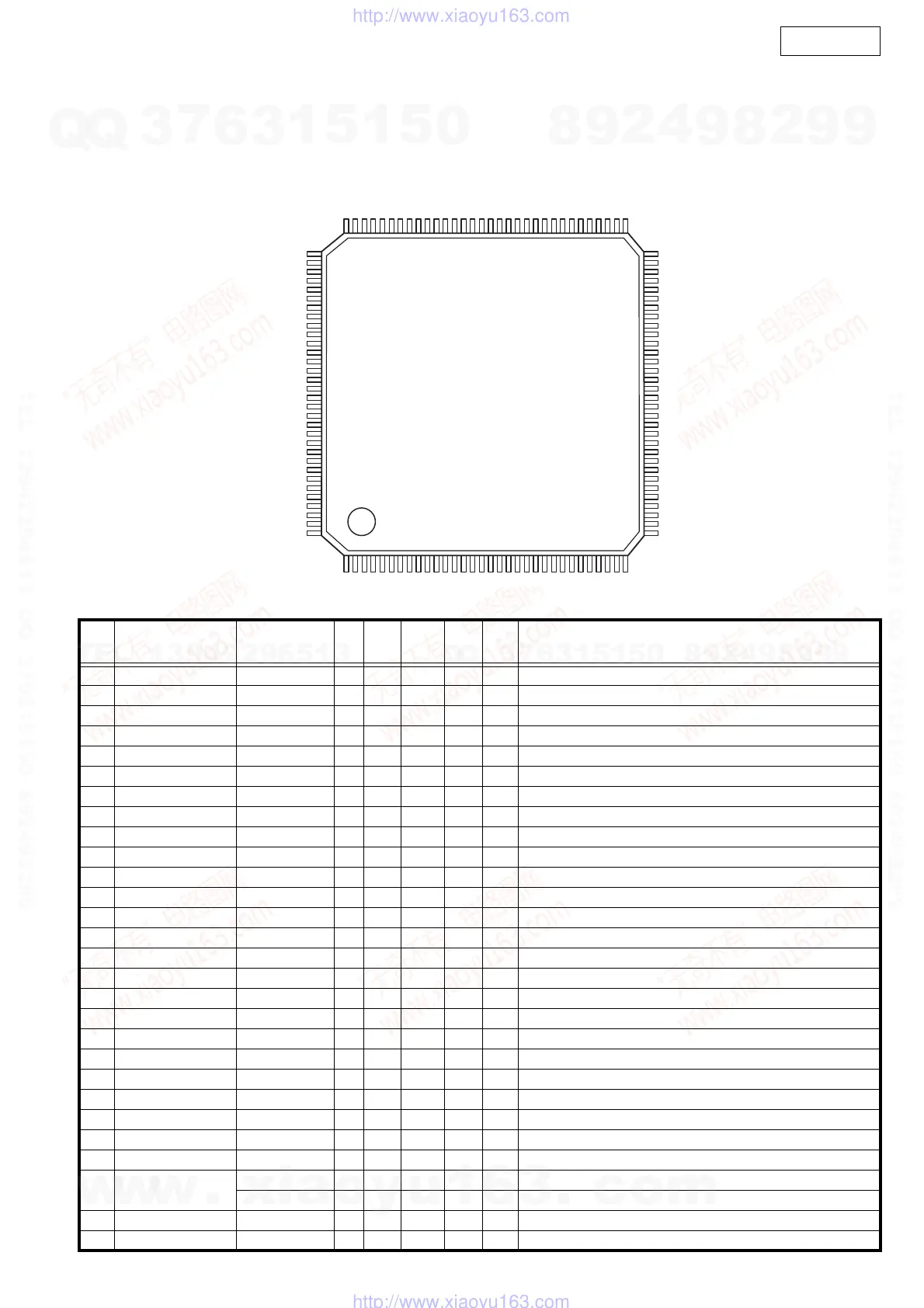

MN102H730F (IC101)
MN102H730F Terminal Function
Pin
No.
Pin Name Simbol I/O DET Ext Ini Res Function
1 CS0_ CS0_ O - Pu - - Ext. memory chip select 0 (Frash ROM CS)
2 CS1_ CS1_ O - - - - Not used
3 D00 DQ0 I/O - - - - Ext. memory data I/O 0, DSP interface 0
4 D01 DQ1 I/O - - - - Ext. memory data I/O 1, DSP interface 1
5 D02 DQ2 I/O - - - - Ext. memory data I/O 2, DSP interface 2
6 D03 DQ3 I/O - - - - Ext. memory data I/O 3, DSP interface 3
7 VDD VDD - - - - - Power (+3.3V)
8 VSS VSS - - - - - GND
9 D04 DQ4 I/O - - - - Ext. memory data I/O 4, DSP interface 4
10 D05 DQ5 I/O - - - - Ext. memory data I/O 5, DSP interface 5
11 D06 DQ6 I/O - - - - Ext. memory data I/O 6, DSP interface 6
12 D07 DQ7 I/O - - - - Ext. memory data I/O 7, DSP interface 7
13 D08 DQ8 I/O - - - - Ext. memory data I/O 8, DSP interface 8
14 D09 DQ9 I/O - - - - Ext. memory data I/O 9, DSP interface 9
15 D10 DQ10 I/O - - - - Ext. memory data I/O 10, DSP interface 10
16 PD0,DMAACK1_ DLED O - Pu H - Disc LED
17 PD1,DMAREQ1_ DSPF3 O - - L - Flag 3 for DSP (RESERVE)
18 D11 DQ11 I/O - - - - Ext. memory data I/O 11, DSP interface 11
19 D12 DQ12 I/O - - - - Ext. memory data I/O 12, DSP interface 12
20 D13 DQ13 I/O - - - - Ext. memory data I/O 13, DSP interface 13
21 D14 DQ14 I/O - - - - Ext. memory data I/O 14, DSP interface 14
22 D15 DQ15 I/O - - - - Ext. memory data I/O 15, DSP interface 15
23 WORD WORD I - - Data bus width select (H: 16bit), GND fixed
24 VDD VDD - - - - - Power (+3.3V)
25 MODE MODE I - - L L Processor mode, GND fixed
26 PC3
MODEL I - Pu L - RESERVE
MODEL I - Pd L - RESERVE
27 XI XI I - - - - Oscillation input
28 XO XO O - - - - Oscillation output
128 33
32
1
97 64
96 65
TOP VIEW
