DN-S5000

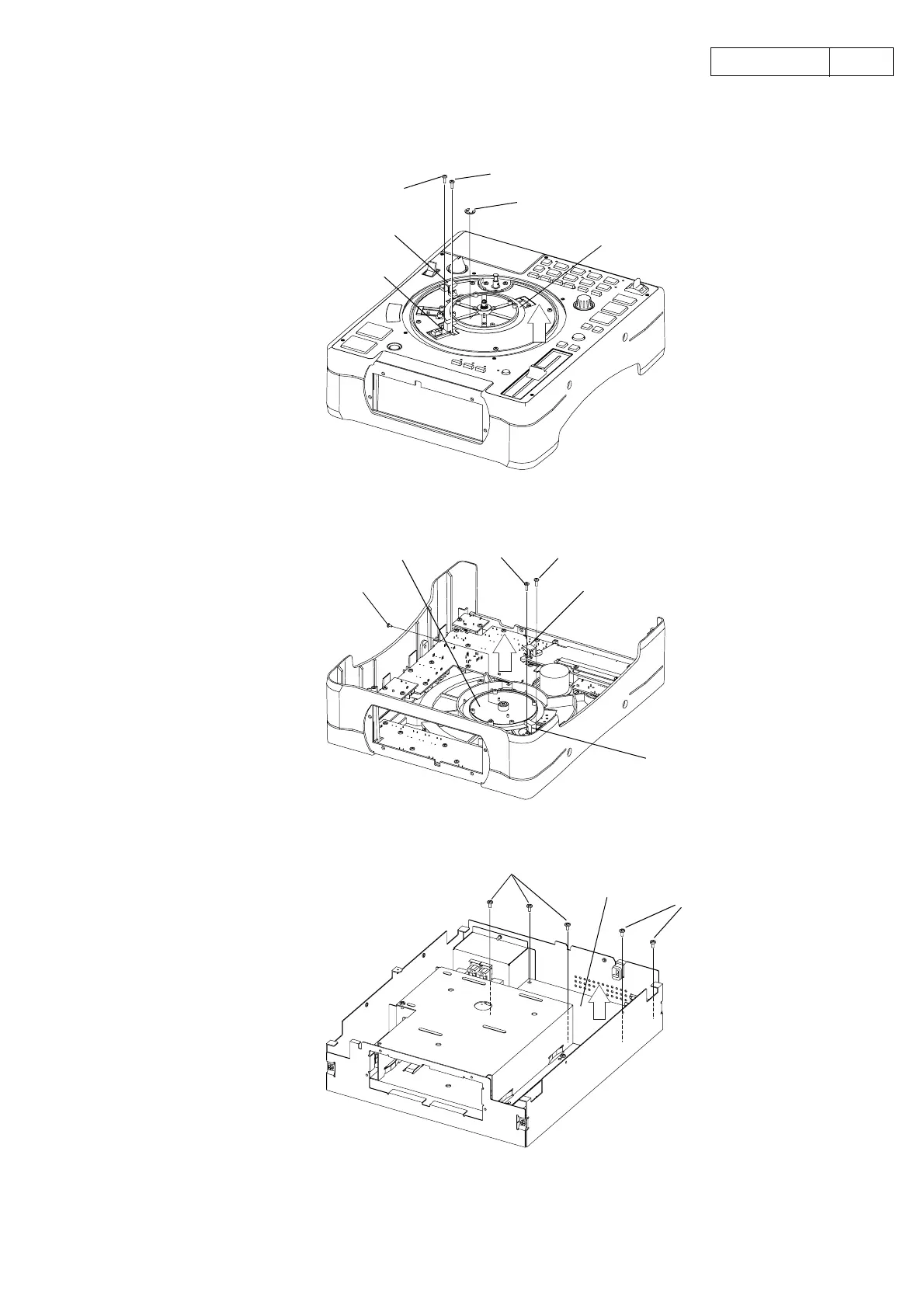

5. SENSOR AND SCALE UNITS OF PLATTER
(1) Remove 2 screws 64 and pull out Sensor Cover and Sensor unit.
(2) Remove a E Ring.
(3) Pull out Scale unit.
6. SENSOR AND SCALE UNITS OF SLIP DISC
(1) Remove 2 screws 64 and pull out Sensor Cover and Sensor unit.
(2) Remove a screw 60 and pull out Scale unit.
.
7. POWER PWB
(1) Remove 5 screw 51 and pull out Power PWB.
.
64
64
Sensor Cover
Sensor unit
E Ring
Scale unit
Scale unit
Sensor unit
Sensor Cover
60
64
64
51
51
Power PWB
