n Audio
(0 dBu=0.775 Vrms,
0 dBV =1 Vrms)
• PHONO inputs 2 Stereo
Unbalanced RCA terminal
Input impedance: 47 kΩ
Level:
–40 dBV(10 mV)
Signal to Noise ratio: 89 dB
• CD inputs 2 Stereo
Unbalanced RCA terminal
Input impedance: 10 kΩ
Level: 0 dBV
Signal to Noise ratio: 100 dB
• Equalizer (LINE) 3 Band
Channel EQ Adjustment
Range:
HI (High Range) :
–∞, –90 dB – +10 dB
MID (Medium Range) :
–∞, –90 dB – +10 dB
LOW (Low Range) :
–∞, –90 dB – +6 dB
• AUX1 Input 1 Stereo RCA Terminal
Input impedance: 10 kΩ
Level: 0 dBV
• EFX RETURN AUX2 inputs 1 Stereo RCA Terminal
Input impedance: 10 kΩ
Level: AUX2:0 dBV
EFX RETURN:
– 10 dBV
• MIC inputs Monaural
MIC: Balanced XLR
(1: Ground, 2: Hot, 3: Cold)
Input impedance: 5kΩ
Level:
– 60 – +20 dBu
EIN: -126 dBu or less
(Rs=150Ω)
CMRR: 89 dB or more (1 kHz)
• Equalizer (MIC/AUX1) 2 Band
Adjustment Range: HI (High Range) :–15 – +15 dB
LOW (Low Range) :–15 – +15dB
• USB audio inputs 4 Stereo(8 Monaural) 24 bit,
Fs:44.1/48/96 kHz
USB B
• MASTER output Balanced: Stereo, balanced XLR terminal
(1: Ground, 2: Hot, 3: Cold)
DA converter: 32 bit 128-times oversampling
advanced segment
Load impedance: Over 600 Ω
Level: + 4 dBu (Max + 24 dBu)
Frequency response: 20 Hz – 20 kHz(±0.5 dB)
THD: Less than 0.05%
Crosstalk: Less than –100 dB (1 kHz)
Unbalanced: Stereo RCA terminal
Load impedance: 10 kΩ
Level: 0 dBu (Max + 20dBu)
• EFX SEND/BOOTH Output Stereo RCA terminal
Load impedance: 10 kΩ or more
Level: BOOTH: 0dBu (Max + 20dBu)
EFX SEND:–
1 0dBV
(Max +10dBV)
• Headphone output Stereo
Load impedance: 40 Ω
Level: 100 mW
• USB audio output 4 Stereo(8 Monaural) 24bit,
44.1/48/96 kHz
USB B
n General
USB MIDI I/O: IN:1ch, OUT:1ch MIDI1.0,
MIDI Clock USB B
CH Meter: PPM 10 Point LED-20 – + 10
dB, Peak
MASTER Meter: PPM 10 Point LED-20 – + 10
dB, Peak
CH Fader: 45 mm Slim Type fader
Cross Fader: 45 mm FLEX Fader
(Fader Torque Adjustable)
• Power supply:
U.S.A. and Canada models: AC 120 V, 60 Hz
European,U.K. and Asia/
Pacific models:
AC 230 V, 50 Hz
Power consumption: 24 W
(Less than 0.3 W during
standby)
Operating temperature: +5 °C – +35 °C
Operating humidity: 25 % – 85 %
Storage temperature: –20 °C – 60 °C
n Dimensions
Width: 250 mm / 9.8”
Height: 315 mm / 12.4”
Depth: 90 mm / 3.5”
Weight: 4.0 kg (8 lbs 13.1 oz)

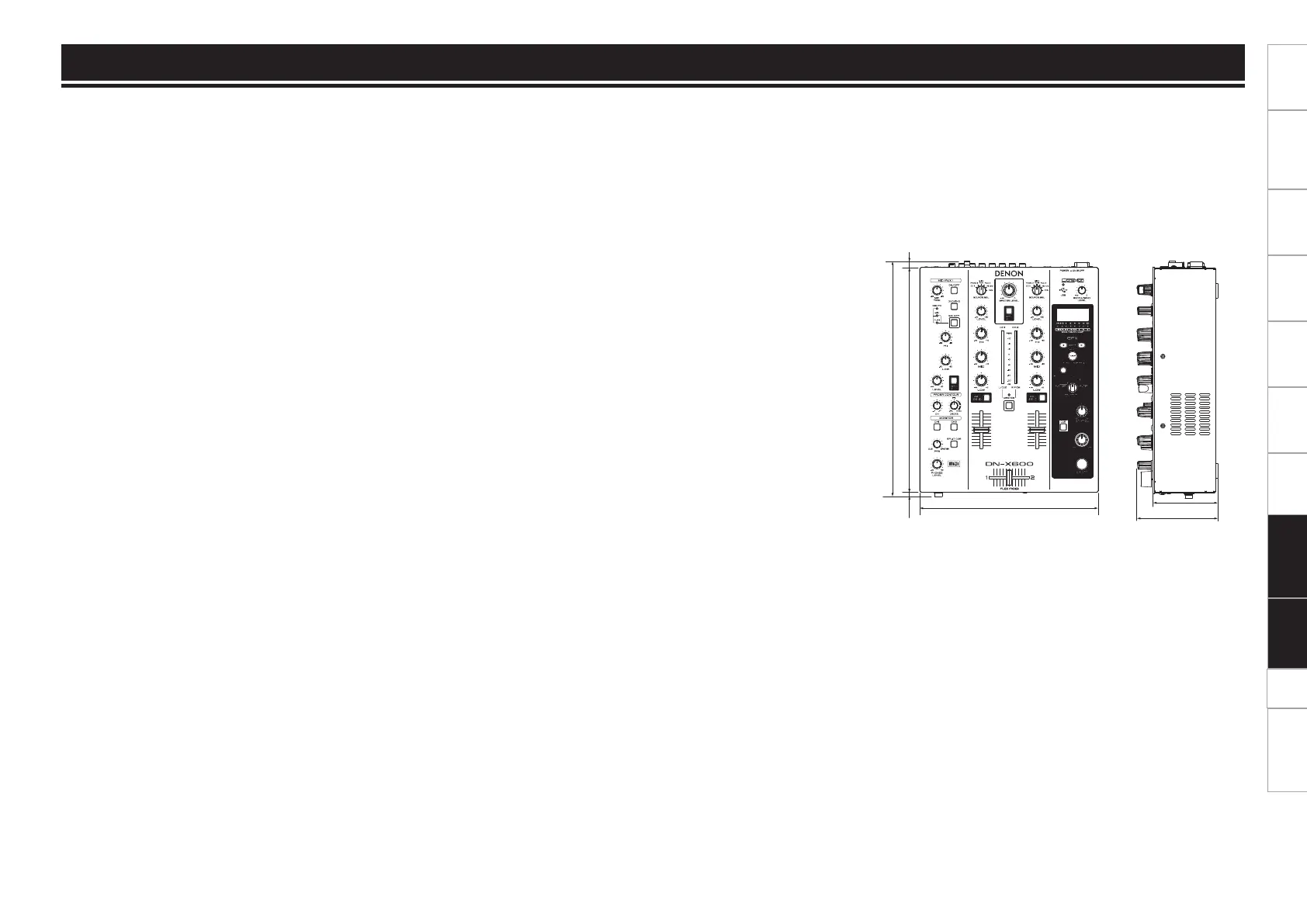

250 mm (9.8”)
6 mm
(0.24”)
315 mm (12.4”)
9 mm
(0.35”)
330 mm (13.0”)
90 mm (3.5”)
112 mm (4.4”)
Specifications
zFor the purpose of improvement, the specifications and design are subject to change without notice.
