A
Bluetooth/wireless LAN antenna connectors
Used to connect the included external antennas for Bluetooth/wireless
connectivity when connecting to a network via wireless LAN, or when
connecting to a handheld device via Bluetooth. (v p. 28)
A

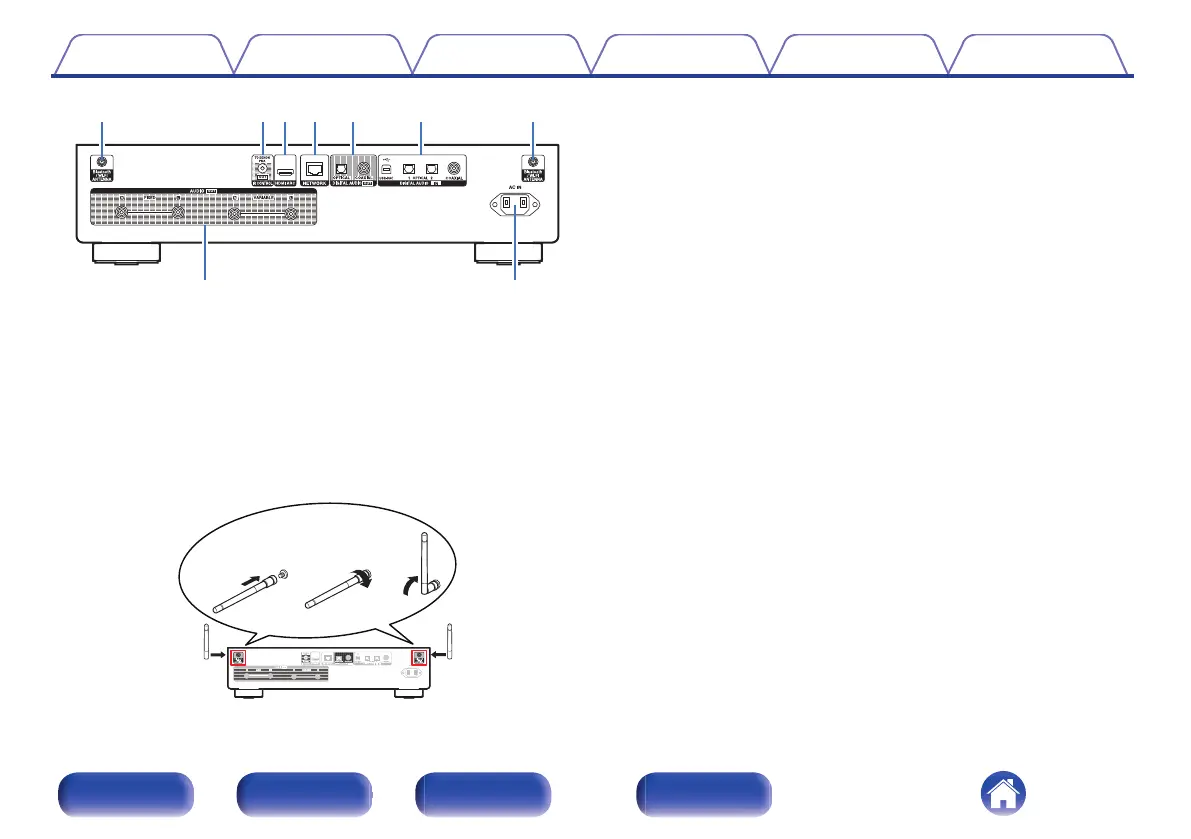

Place the external antennas for Bluetooth/wireless connectivity
evenly over the screw terminal of rear.
B
Turn clockwise until the antennas is fully connected.
C
Rotate the antenna upwards for best reception.
B
IR CONTROL connector
Connects to a Denon amplifier that is equipped with a IR CONTROL
connector. (v p. 29)
C
HDMI connector (HDMI ARC)
Used to connect an ARC function-compatible TV. (v p. 19)
D
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN
network. (v p. 27)
E
DIGITAL AUDIO OUT connectors
Used to connect an amplifier or D/A converter that has a digital input
connectors. (v p. 23)
F
DIGITAL AUDIO IN connectors
0
Used to connect a TV with an optical or coaxial digital terminal.
(v p. 21)
0
Used to connect devices equipped with digital audio output
connectors. (v p. 24)
G
AUDIO OUT connectors
Used to connect devices equipped with analog audio inputs connectors
or an external power amplifier. (v p. 18)
H
AC inlet (AC IN)
Used to connect the power cord. (v p. 30)
