Denon DP-37F Series User Manual

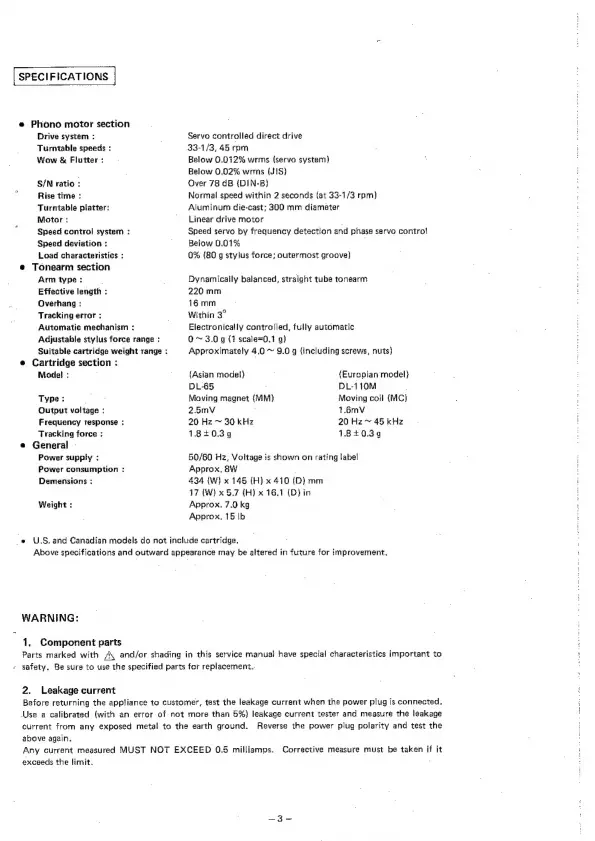

SPECIFICATIONS
Parts marked with A\ and/or shading in this service manual have special characteristics important to :
- safety. Be sure to use the specified parts for replacement.
® Phono motor section
Drive system : Servo controlled direct drive
Turntable speeds : 33-1/3, 45 rpm
Wow & Flutter : Below 0.012% wrms (servo system)
: Below 0.02% wrms (J1S}
S/N ratio : Over 78 dB {DIN-B}
g Rise time : Normai speed within 2 seconds (at 33-1/3 rpm)
Turntable platter: Aluminum die-cast; 300 mm diameter
Motor : Linear drive motor :
: Speed control system : Speed servo by frequency detection and phase servo contro!
Speed deviation : Below 0.01%
Load characteristics : 0% (80 g stylus force; outermost groove}
e Tonearm section
Arm type: Dynamicaily balanced, straight tube tonearm
Effective length : 220 mm
Overhang : 16mm
Tracking error : Within 3°
Automatic mechanism : Electronically controlled, fully automatic
Adjustable stylus force range : Q~ 3.0 g (1 scale=0.1 g)
Suitable cartridge weight range : Approximately 4.0 ~ 9.0 g {including screws, nuts)
® Cartridge section :
Made! : {Asian model) {Europian model}
DL:65 DL-110M
Type: Moving magnet (MM) Moving coil (MC)
Output voltage : 2.5mV ; 1.6mV
Frequency response : 20 Hz ~ 30 kHz 20 Hz ~ 45 kHz
Tracking force ; 1840.3g 1.84039
e General
Power supply : 50/60 Hz, Voltage is shown on rating label
Power consumption : Approx, 8W :
Demensions : 434 (W) x 145 (H) x 410 (D) mm
17 (W) x 5.7 {H) x 16.1 (BD) in :
Weight : Approx. 7.0 kg
Approx. 15 |b
_ U.S. and Canadian models do not include cartridge.
Above specifications and outward appearance may be altered in future for improvement. '
WARNING:
1. Component parts :
2. Leakage current
Before returning the appliance to customer, test the leakage current when the power plug is connected,
Use a calibrated (with an errer of not more than 5%} leakage current tester and measure the leakage
current from any exposed metal to the earth ground. Reverse the power plug polarity and test the
above again.
Any current measured MUST NOT EXCEED 0.5 milliamps. Corrective measure must be taken if it
exceeds the limit. ;
