Denon DP-72L User Manual

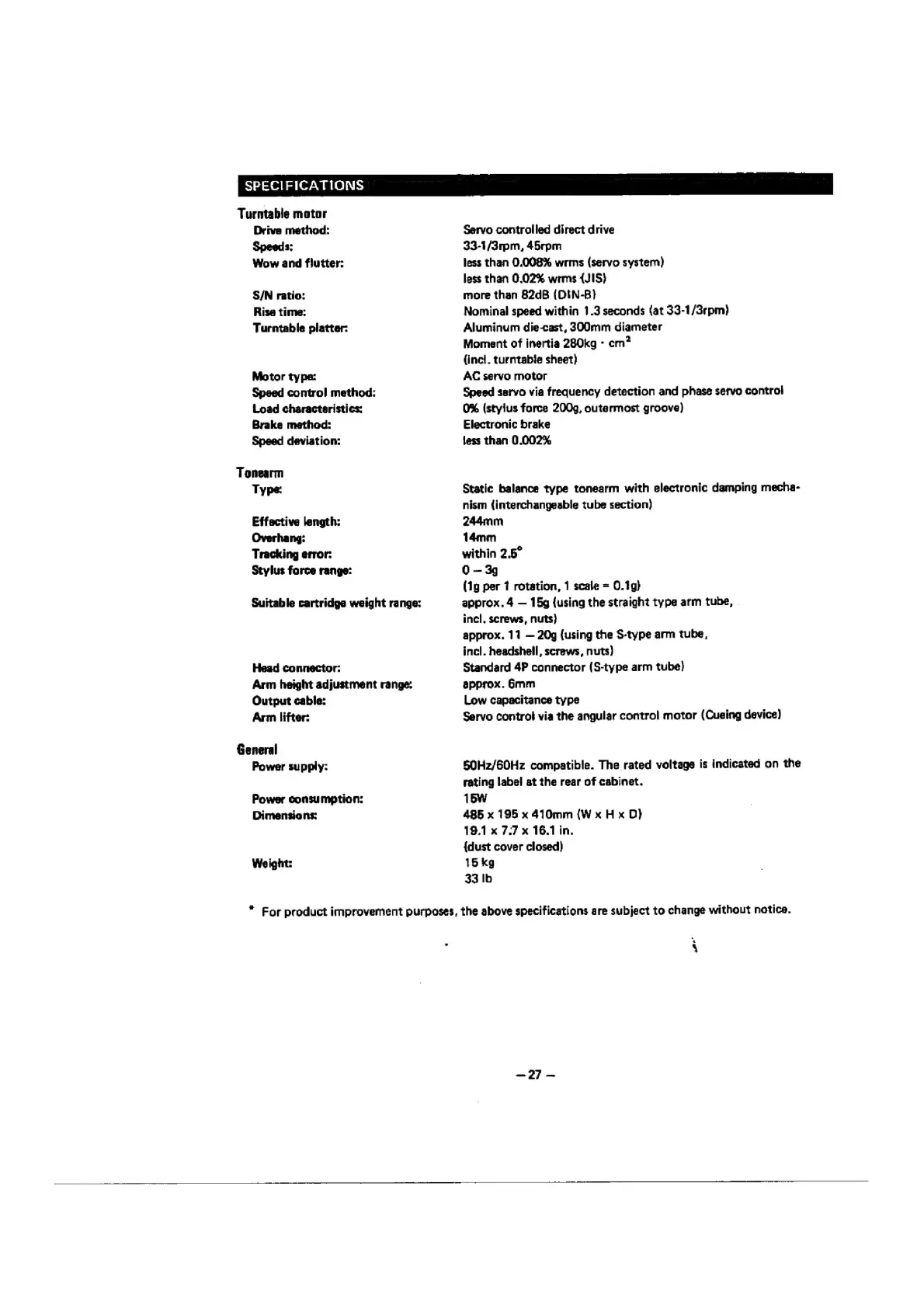

SPECIFICATIONS
Turntable motor
Drive method:
Speeds:
Wow and flutter:
S/N ratio:
Rise time:
Turntable platter:
Motor ty pa:
Speed control method:
Load characteristics:
Brake method:
Speed deviation:
Tonearm
Type:
Effective length:
Overhang:
Tracking error:
Stylus farce range:
Suitable cartridge weight range:
Head connector:
Arm height adjustment range:
Output cable:
Arm lifter:
General
Power supply:
Power consumption:
Dimensions:
Weight:
Servo controlled direct drive
33-1/3rpm, 45rpm
less than 0.008% wrms (servo system)
less than 0.02% wrims {J15}
more than 82d8 (DIN-B}
Nominal speed within 1.3 seconds (at 33-1/3rpm)
Aluminum die-cast, 300mm diameter
Moment of inertia 280kg - cm?
{incl. turntable sheet)
AC servo motor
Speed servo via frequency detection and phase servo control
0% (stylus force 200g, outermost groove)
Electronic brake
less than 0.002%
Static balance type tonearm with electronic damping mecha-
nism (interchangeable tube section)
244mm
14mm
within 2.5°
0 — 3g
(1g per 7 rotation, 1 scale = 0.19)
approx. 4 — 15g {using the straight type arm tube, |
incl, screws, nuts}
approx. 11 — 20g (using the S-type arm tube,
incl. headshell, screws, nuts)
Standard 4P connector (S-type arm tube)
approx. Gmm
Low capacitance type
Servo controt via the angular control motor (Cueing device)
50Hz/60Hz compatible. The rated voltage is indicated on the
rating label at the rear of cabinet.
15W
485 x 195 x 410mm (W x H x D}
19.1 x 7:7 x 16.1 in.
{dust cover closed)
15 kg
33 Ib
*
For
product
improvement
purposes,
the
above
specifications
are
subject
to
change
without
notice.
—37 —
