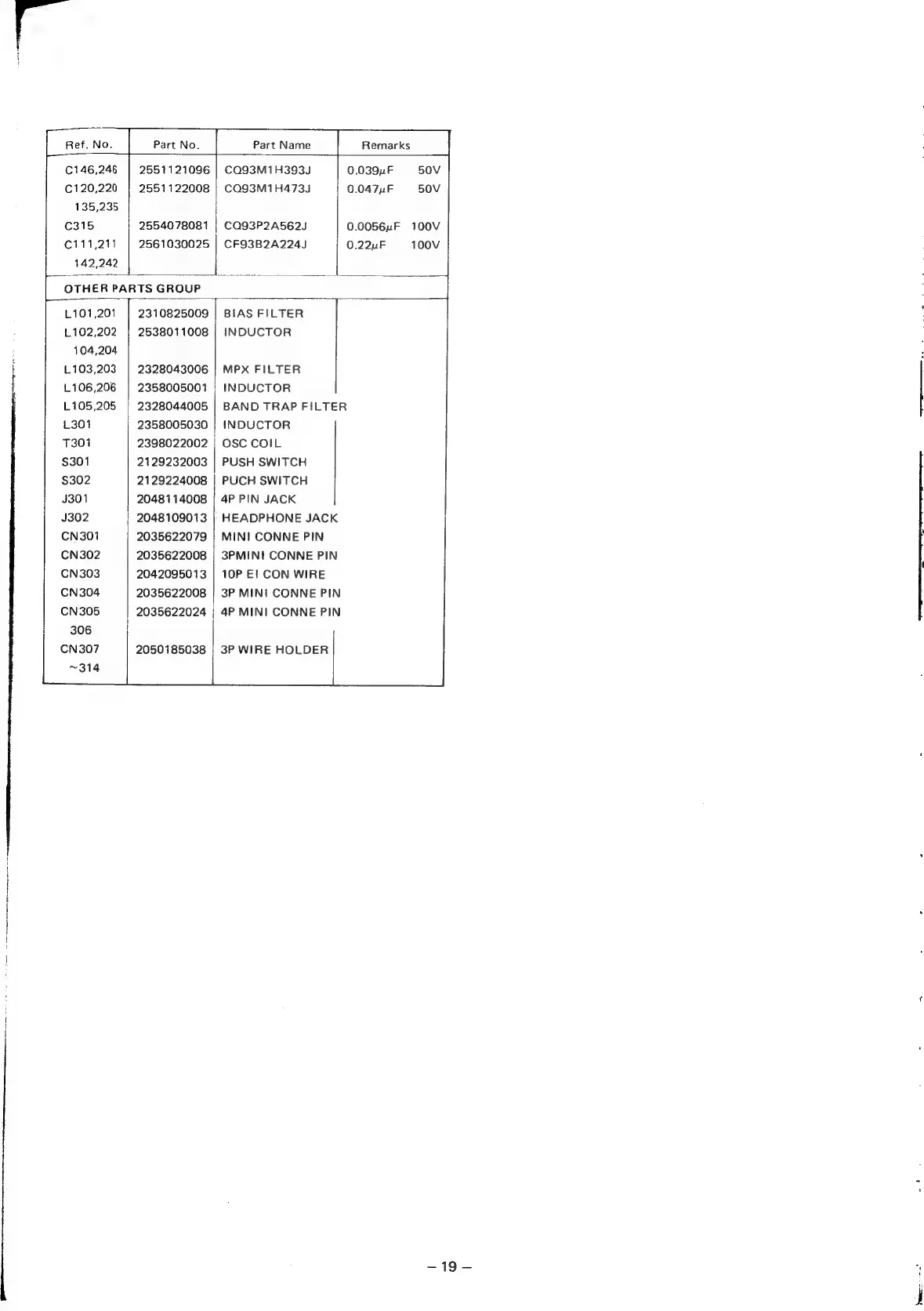

Denon DR-M22 - Page 19

Part Name Remarks
Ref. No. Part No.
C146,246 | 2551121096 | CQ93M1H393J 0.039uF 50V
€120,220 | 2551122008 | CQ93M1H473J 0.047uF 50V
135,235
C315 2554078081 | CQ93P2A5625 0.0056uF 100V
C111,211 2561030025 | CF93B2A224J 0.22uF 100V
142,242
OTHER PARTS GROUP
101,201 2310825009 | BIAS FILTER
£102,202 | 2538011008 | INDUCTOR
104,204
£103,203 | 2328043006 | MPX FILTER
L106,206 | 2358005001 | INDUCTOR
L105,205 | 2328044005 | BAND TRAP FILTER
L301 2358005030 | INDUCTOR
T301 2398022002 | OSC COIL
$301 2129232003 | PUSH SWITCH
$302 2129224008 | PUCH SWITCH
J301 2048114008 | 4P PIN JACK
J302 2048109013 | HEADPHONE JACK
CN301 2035622079 | MINI CONNE PIN
CN302 2035622008 | 3PMINi CONNE PIN
CN303 2042095013 | 10P E! CON WIRE
CN304 2035622008 | 3P MINi CONNE PIN
CN305 2035622024 | 4P MINI CONNE PIN
306
CN307
~314
2050185038
3P WIRE HOLDER
~19—
