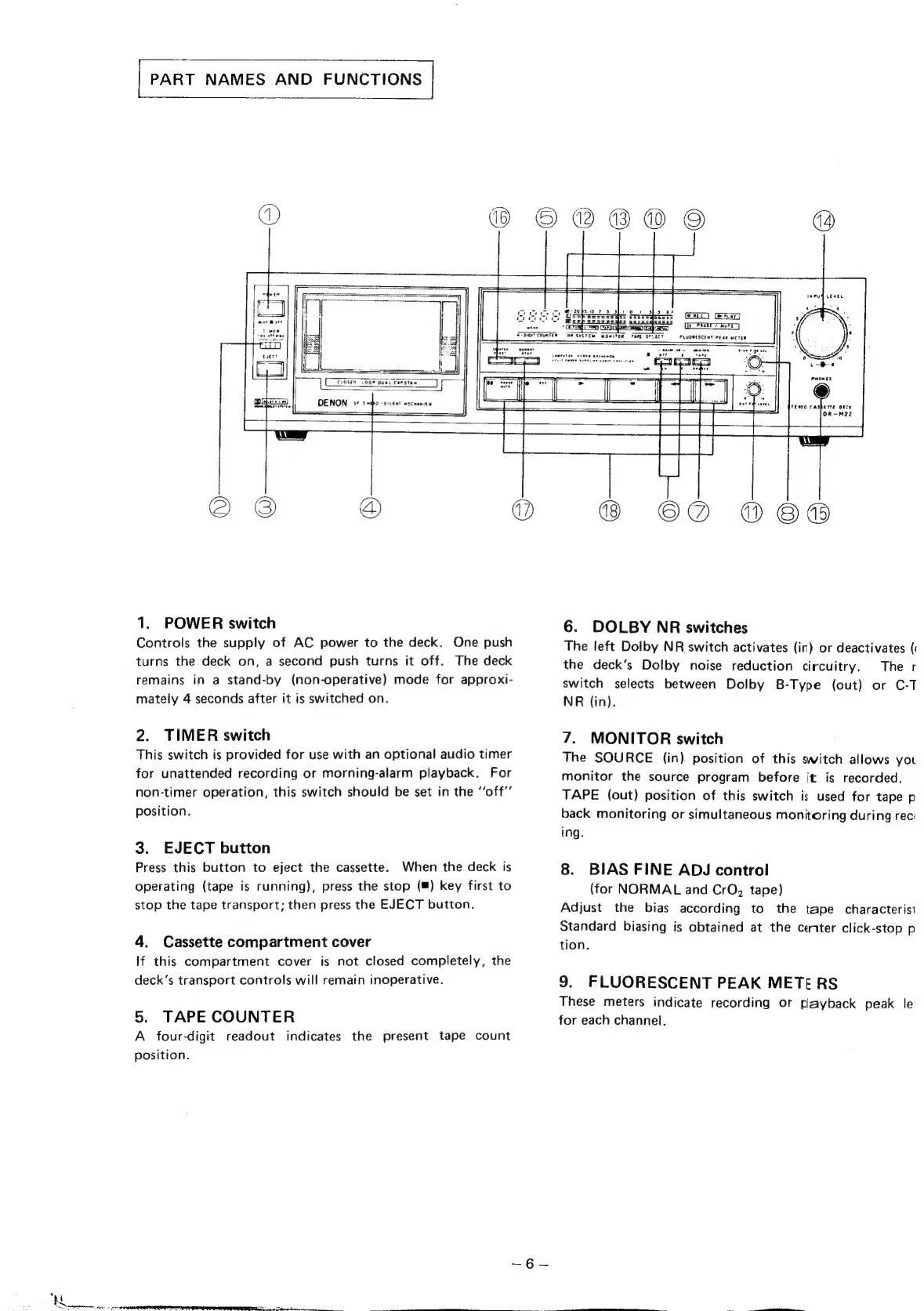

PART NAMES AND FUNCTIONS |
FLUORESCENT Peak wetER
bese ae weanten tro eye nee
s taee
segee y
Syey rete TEREO CASBETTE O€CK
P Je ener DENON 5° smcho-sivent wecnanis a
ie
OR-M22
© @ @
1. POWER switch
Controls the supply of AC power to the deck. One push
turns the deck on, a second push turns it off. The deck
remains in a stand-by (non-operative) mode for approxi-
mately 4 seconds after it is switched on.
2. TIMER switch
This switch is provided for use with an optional audio timer
for unattended recording or morning-alarm playback. For
non-timer operation, this switch should be set in the ‘‘off’’
position.
3. EJECT button
Press this button to eject the cassette. When the deck is
Operating (tape is running), press the stop (™) key first to
stop the tape transport; then press the EJECT button.
4. Cassette compartment cover
If this compartment cover is not closed completely, the
deck’s transport controls will remain inoperative.
5. TAPE COUNTER
A four-digit readout indicates the present tape count
position.
OD DO O®
6. DOLBY NR switches
The left Dolby NR switch activates (in) or deactivates («
the deck’s Dolby noise reduction circuitry. The r
switch selects between Dolby B-Type (out) or C-T
NR (in).
7. MONITOR switch
The SOURCE (in). position of this switch allows yo
monitor the source program before it is recorded.
TAPE (out) position of this switch is used for tape p
back monitoring or simultaneous monitoring during rec:
ing.
8. BIAS FINE ADJ control
(for NORMAL and CrO, tape)
Adjust the bias according to the tape characterisi
Standard biasing is obtained at the center click-stop p
tion.
9. FLUORESCENT PEAK METE RS
These meters indicate recording or playback peak le
for each channel.
