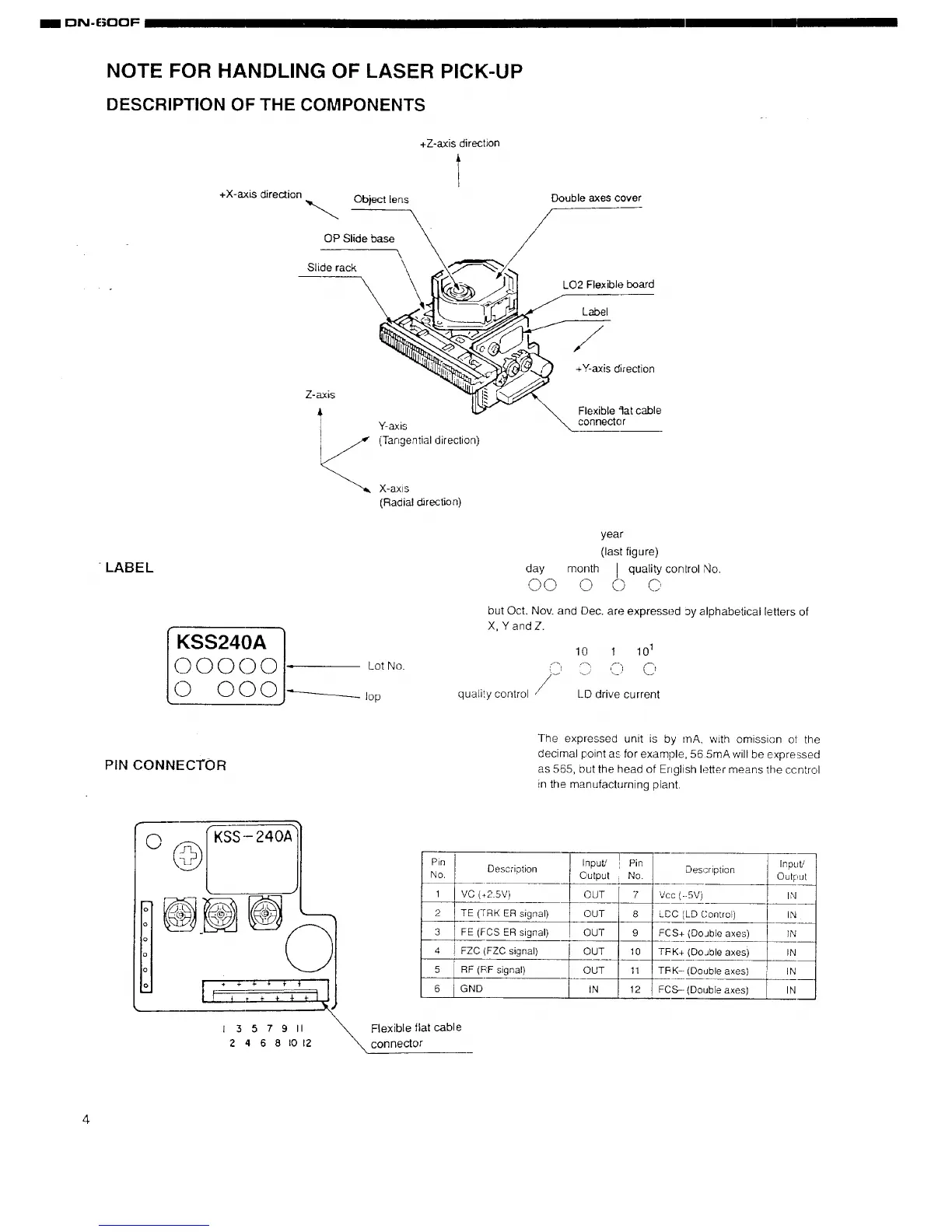

NOTE FOR HANDLING OF LASER PICK-UP
DESCRIPTION OF THE COMPONENTS
+X-axis direction
+Z-axis direction
Object lens
\
OP Slide base
\
Slide rack
Z-axis
A Y-axis
(Tangential direction)
X-axis
(Radial direction)
Double axes cover
/
LO2 Flexible board
Label
//
+Y-axis direction
Flexible fiat cable
connecter
-LABEL
KSS240A
(D O O () O Lot No.
C_) O (_) O lop
year
(last figure)
day month I quality con[rol XIo.
O O 0 0 C'
but Oct. Nov. and Dec. are expressed ay alphabetical letters of
X, YandZ.
quality control /_
I 0 I 101
() _" C,
LD drive current
PIN CONNECTOR
The expressed unit is by mA, with omission ol the
decimal point as for example, 56 5mA will be expressed
as 565, but the head of English letter means tile ccntrol
in the manufacturning plant.
o
If t T t _ _ +
1357911
2 4 681012
Pin
No. Description
1 VC (+2.5V}
2 TE (TRK ER signal)
3 FE (FCS ER signal)
4 ! FZC (FZC signal)
5 RF (RF signal)
6 GND
I
InPut'/ l
Output i
OUT
OUT
QUT
OUT
OUT
! iN
Pin
No.
7 Vc
8 LC
9 FC
10 TF
11 TIq
12 FC
Input/
Description ! Output
l-- vi
(LD C.ontral) IN
(Doable axes) IN
(DoJble axes) IN
(Double axes)
(Double axes) IN
_, lexible flat cable
connector
To Next Page
