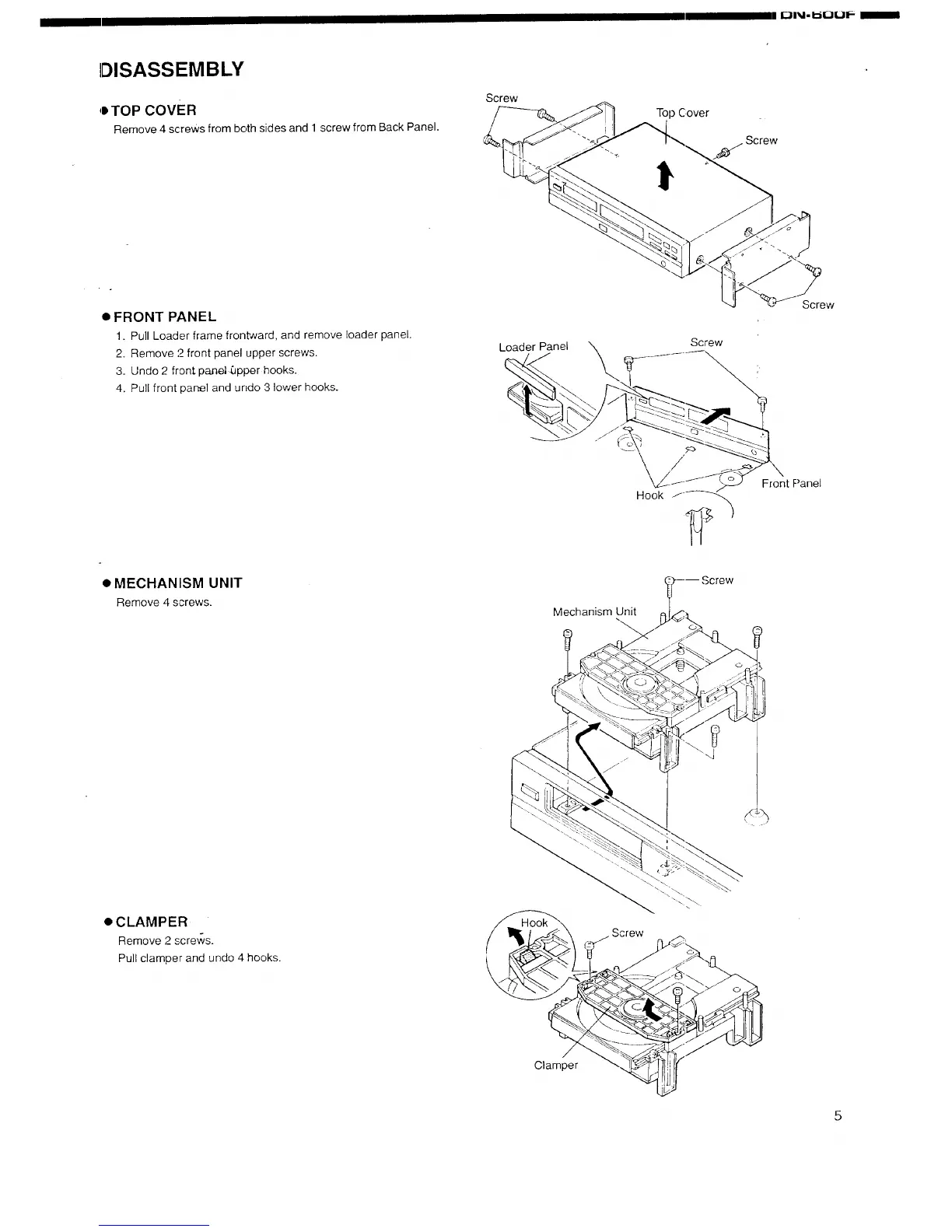

IDISASSEMBLY
,DTOP COVER
Remove 4 screws from both sides and 1 screw from Back Panel.
Screw
Top Cover
t
Screw
• FRONT PANEL
1. Pull Loader frame frontward, and remove loader panel.
2. Remove 2 front panel upper screws.
3. Undo 2 front panel 5pper hooks.
4. Pull front panel and undo 3 lower hooks.
Loader Panel
Screw
Screw
• MECHANISM UNIT
Remove 4 screws.
• CLAMPER
Remove 2 screws.
Pull cJamper and undo 4 hooks.
Clamper
Mechanism Unit
Few
Front Panel
5
