Denon S-102 - Waveform Analysis

36
S-102
(2) 波形図
 




 


  


















(2) WAVEFORM

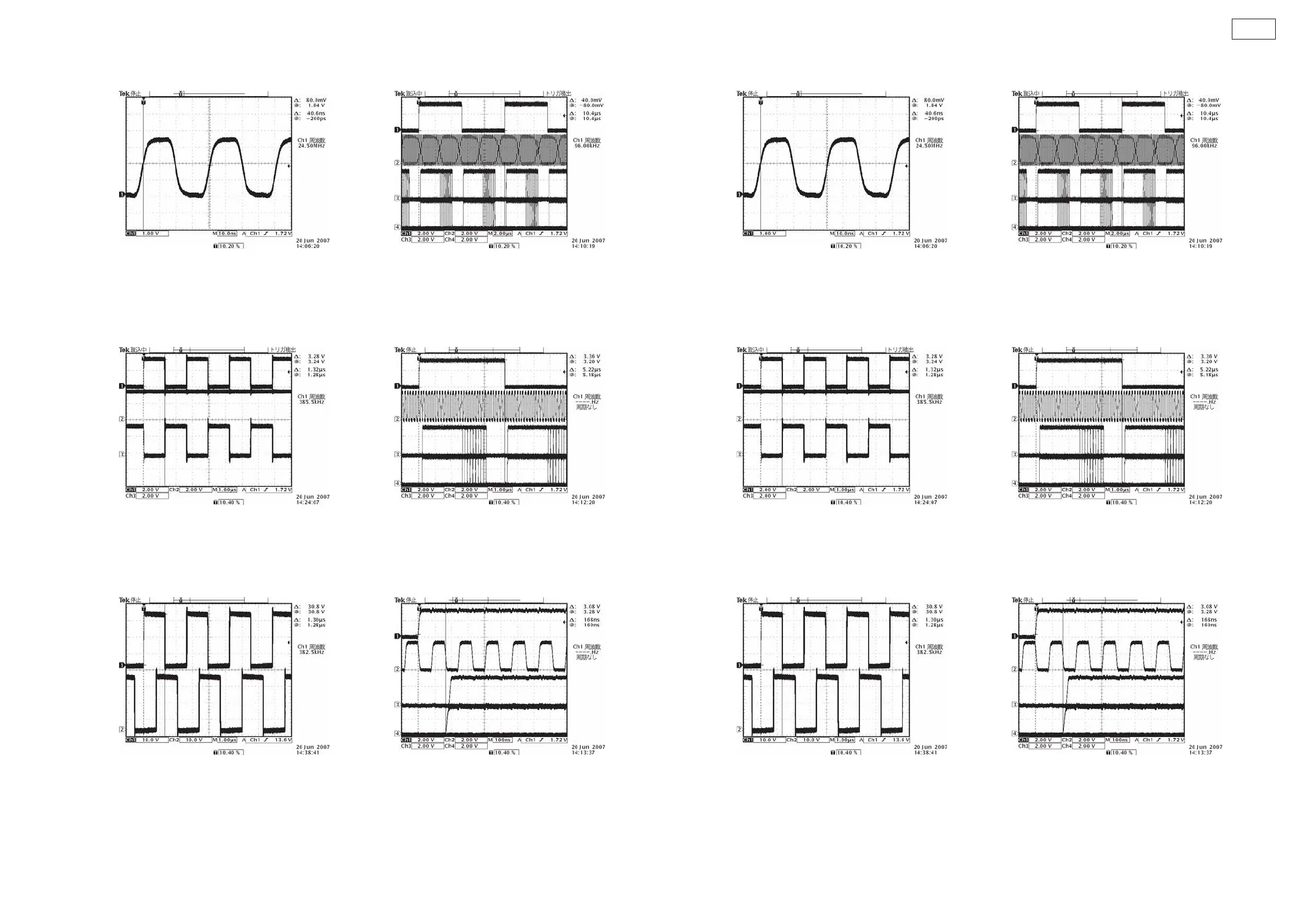

Waveform 1:Clock Waveform(24.576MHz) Waveform 4:ADWaveform1
Waveform 5:ADWaveform2(Magnification)
Waveform 6:AD Waveform3(Magnification)
Waveform 2:PWM Signal (Pulse width changed by input signal)
Waveform 3:Digital amp carrier Waveform
CH1:IC206 33pin, IC206 26pin, IC206 29pin
CH2:IC206 30pin,
IC206 25pinIC206 22pin,
CH1:IC206 4pin, IC20 6 14pin, IC207 2pin
CH2:IC206 5pin,
IC207 4pinIC206 15pin,
CH3:IC206 6pin,
IC207 1pinIC206 16pin,
CH1:IC201 24pin
CH2:IC201 23pin
CH3:IC201 21pin
CH4:IC201 19pin
CH1:IC201 24pin
CH2:IC201 23pin
CH3:IC201 21pin
CH4:IC201 19pin
CH1:IC201 24pin
CH2:IC201 23pin
CH3:IC201 21pin
CH4:IC201 19pin
