Q8 AUX IN jack ················································ (19)
Q9 Headphones jack ( ) ································ (13)
W0 Remote control sensor ································(2)
W1 Display
For buttons not explained here, see the page indicated in parentheses ( ).
Part Names and Functions

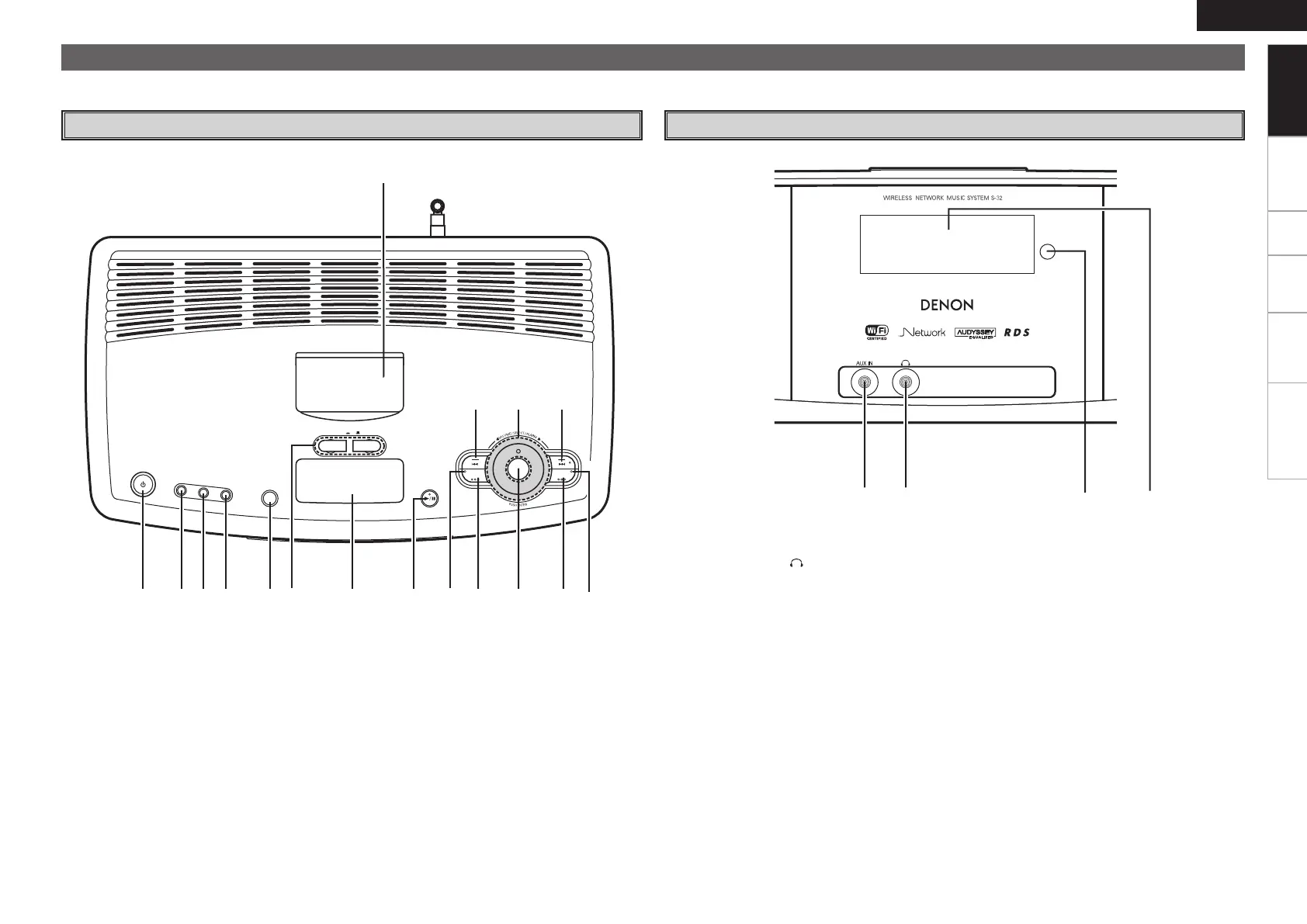

Top Panel
q Power operation button
(FUNCTION ON / OFF) ····························· (12)
w ALARM SETTING button·························· (20)
e SLEEP button ············································ (21)
r DIMMER button ········································ (13)
t DISPLAY button ········································ (13)
y ALARM1, 2 ON / OFF buttons ················· (20)
u MUTE / SNOOZE button ···················· (12, 20)
i PLAY / PAUSE button (1/3) ···················· (16)
o SOURCE indicator ···································· (12)
Q0 SOURCE button ·········································· (8)
Front Panel
Q1 ENTER button ·············································(8)
Q2 RETURN button ···········································(8)
Q3 RETURN indicator······································(12)
Q4 Forward-skip /
Fast-forwarding button (9) ··················(15)
TUNING + button·······································(17)
Q5 Multi jog dial /
Master volume control ·························· (8, 12)
Q6 Reverse-skip /
Fast-reversing button (8) ·····················(15)
TUNING – button ······································· (17)
Q7 Dock for iPod ················································(5)
Getting Started
RETURN
FUNCTION
ON / OFF
ALARM
SETTING
SLEEP
DIMMER
iPod
PLAY/PAUSE
SOURCE
MUTE / SNOOZE
ALARM ON OFF
ALARM
1
ALARM
2
DISPLAY
q wer t u o Q0
Q6
Q2
Q4
Q3
Q7
Q1iy
Q5
