Denon S-52 - Main Block Disassembly

15
S-52/S-52DAB/S-32
5. MAINBLOCK
(1) 後面側からの 106 のねじ5 本と 108 ねじ５本をはずす。
(2) MAINUNITの [CX101] から10PZH-JBCON.CORD をは
ずす。
(3) MAINUNITの [CX131] から13PPH-PHSHIELDCORD を
はずす。

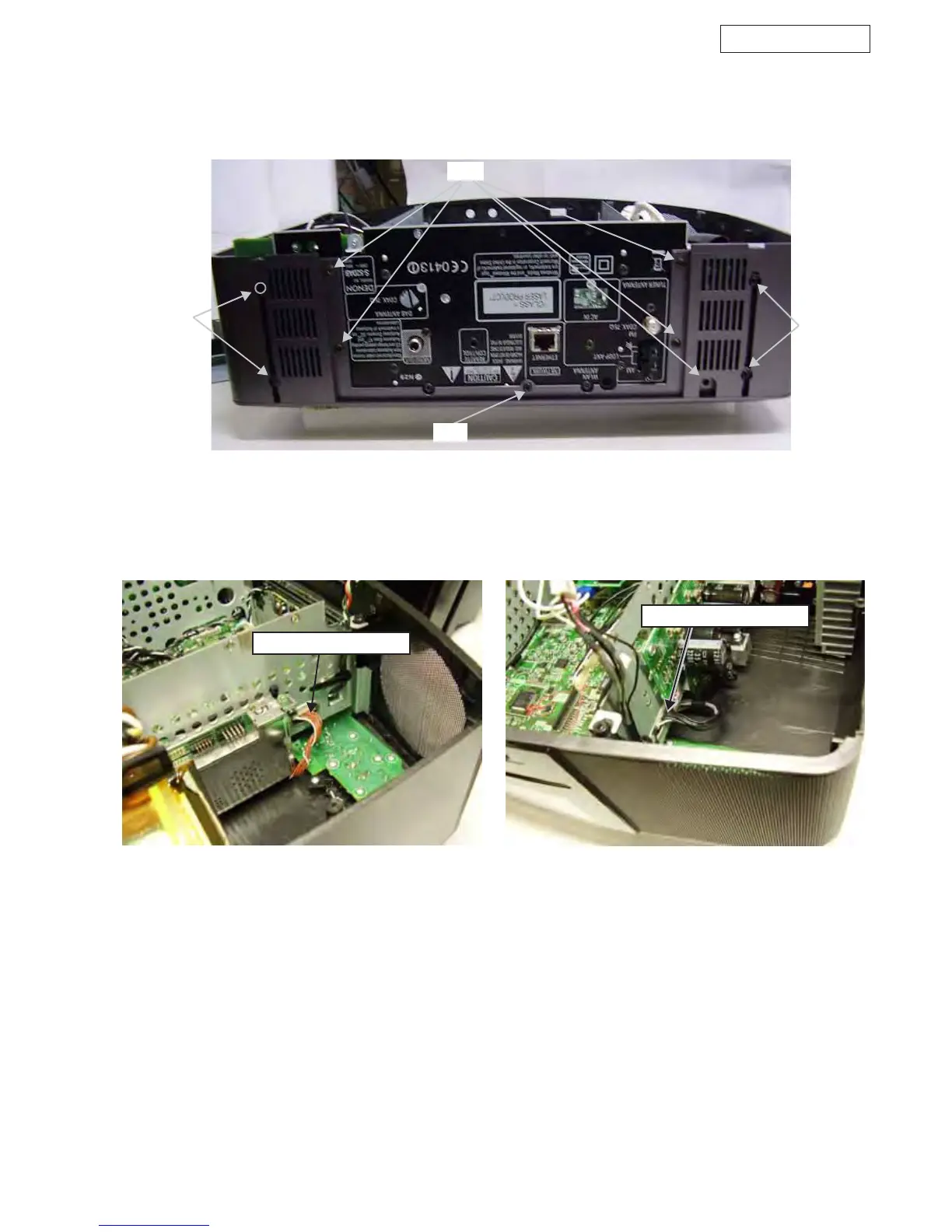

5. MAIN BLOCK
(1) Remove the 5 screws 106 and the 5 screws 108 on the
rear.
(2) Disconnect the 10P ZH-JB CON.CORD from the [CX101]
on the MAIN UNIT.
(3) Disconnect the 13P PH-PH SHIELD CORD from the
[CX131] on the MAIN UNIT.
108
108
108
106
10P ZH-JB CON. CORD
13P PH-PH SHIELD CORD
