S-52/S-52DAB/S-32
7. POWERTRANS
(1) 後面側から、105 のねじ 4 本をはずす。
8. 1U-3847-1POWERAMPUNIT
(1) POWERAMPUNIT の [CY062] から6PPH-PHSHIELD
CORD をはずす。
(2) POWERAMPUNIT の [CX021] から1PSINEHCONN
CORD をはずす。
(3) POWERAMPUNIT の [CY041] から4PPH-PHCON.CORD
をはずす。
(4) MAINUNIT の [CX303] から3PZH-SANCON.CORDをは
ずし、矢印方向に引き抜く。

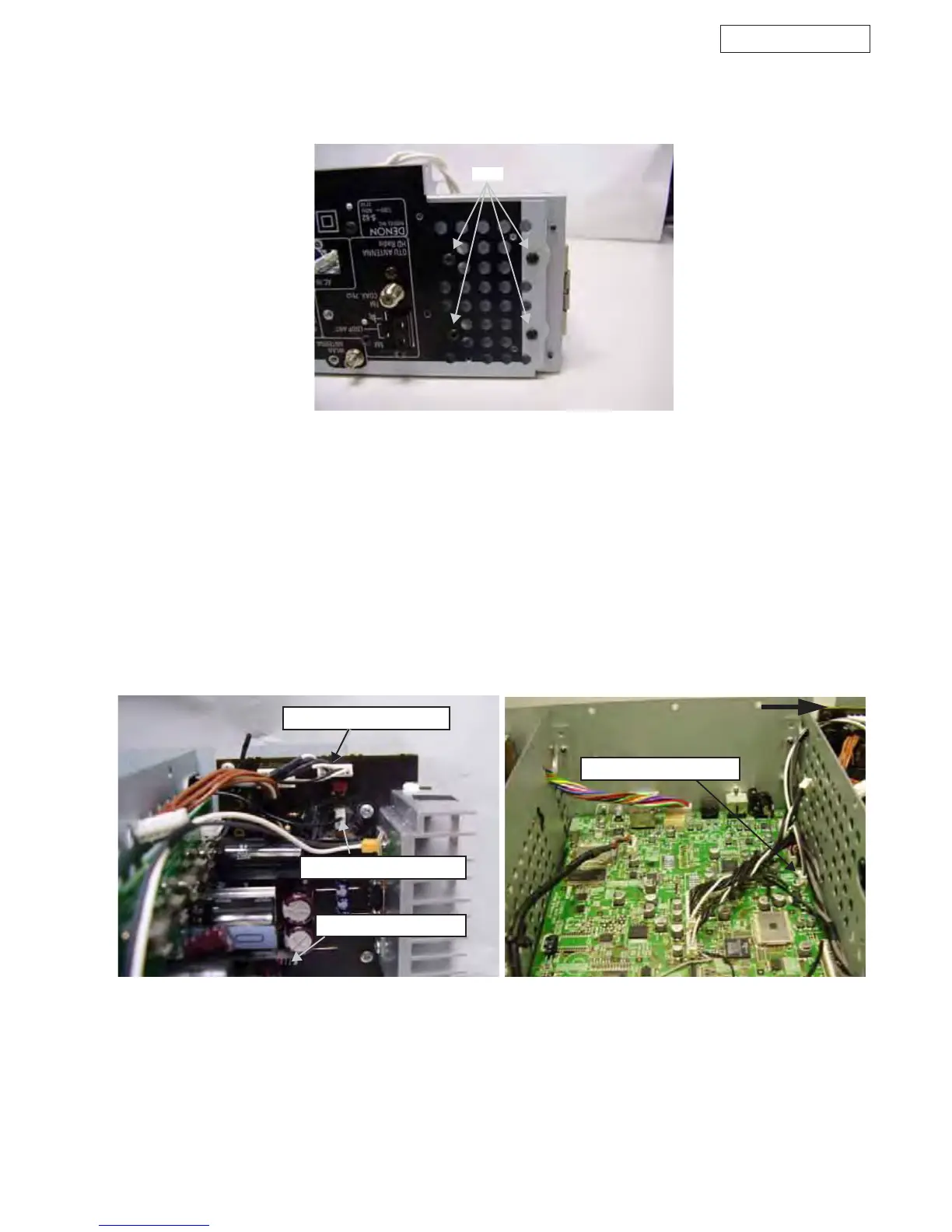

7. POWER TRANS
(1) Remove the 4 screws 105 on the rear.
8. 1U-3847-1 POWER AMP UNIT
(1) Disconnect the 6P PH-PH SHIELD CORD from the
[CY062] on the POWER AMP UNIT.
(2) Disconnect the 1P SIN EH CONN CORD from the
[CY021] on the POWER AMP UNIT.
(3) Disconnect the 4P PH-PH CON.CORD from the [CY041]
on the POWER AMP UNIT.
(4) Disconnect the 3P ZH-SAN CON.CORD from the the
[CX303] on the MAIN UNIT and pull out in the direction of
the arrow.
105
6P PH-PH SHIELD CORD
1P SIN EH CONN CORD
4P PH-PH CON. CORD
3P ZH SIN CON. CORD
