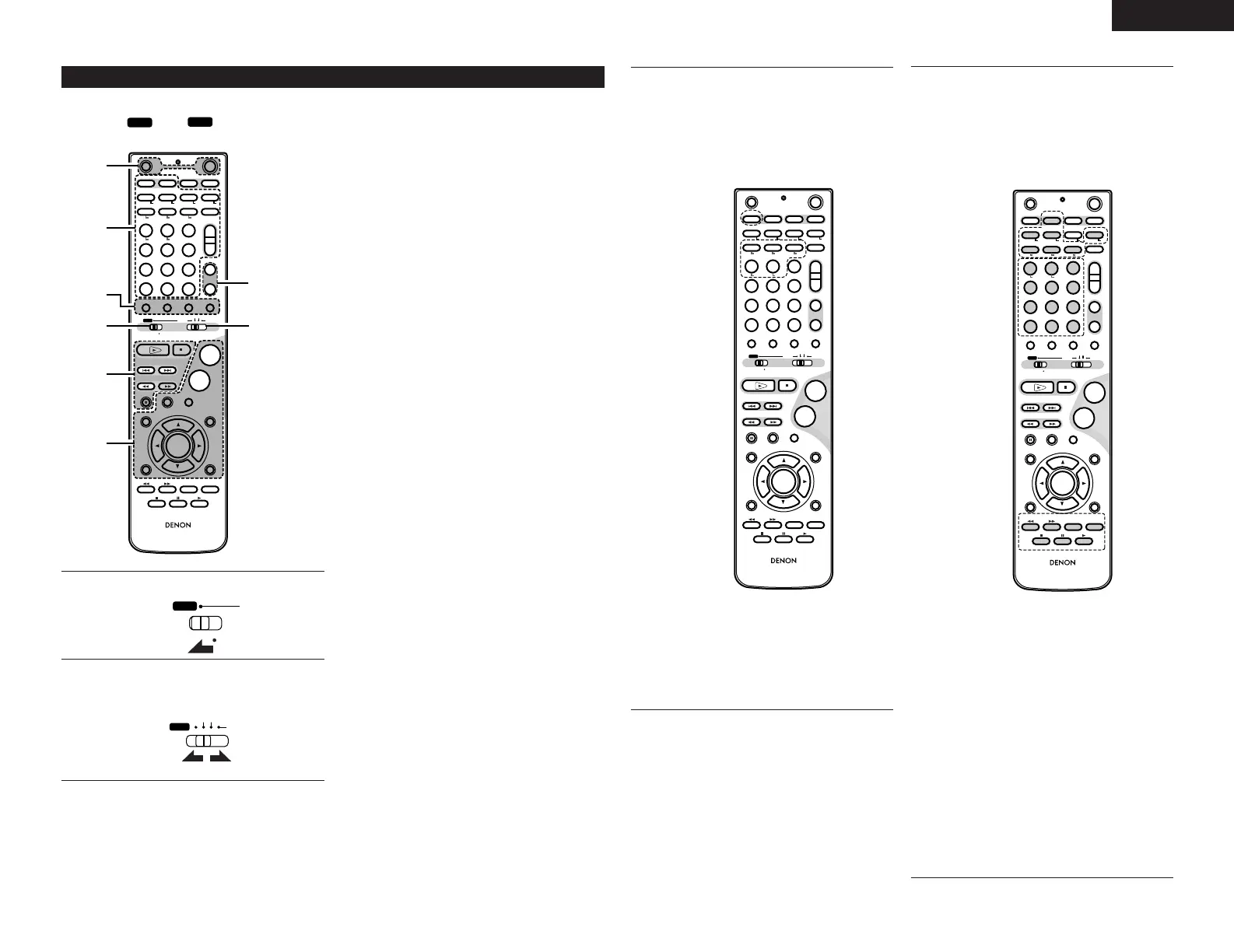

(4) Names and functions of remote control unit buttons on the ADV-500SD
• Buttons in sections q ~ e can be operated regardless of the position of mode switches 1 and 2.
• Consider and as standard positions, and switch as necessary to operate.
DVD
A / V
+
-
+
-
+
-
-
+
-
+
RC-973
A / V
A-B REPEAT
ONOFF
REPEAT RANDOM
CLEAR ZOOM
PROG/ DIRECT
MEMO BANDMODE
STAT U S
RETURN
ANGLE AUDIO
SUB TITLE
SETUP TONE /DIMMER
FUNCTIONSURROUNDINPUT MODETEST TONE
DVD
TUNER
CH
321
654
987
0
/
10
ENTER
MUTING
+
10
DISPLAY MENU TOP MENU
TUNER TV / VCR
NTSC/PAL
SLEEP
TV IN
TUNING /
TV VOL
TV CH TV CH
VCR CH
AV AMPDVD
VCR PWR PWR TV
PBC
CALL
CH SELECT
CT RTPTYRDS
TV
DVD TUNER
VIDEO 1 VIDEO 2
3
12
q
w
e
q
q
1
2
Set mode switch 1 to the “A/V” position.
Set mode switch 2 to the position of the
function you want to operate (DVD, TUNER or
AV AMP).
A / V
TUNER TV / VCR
AV AMP DVD
q Surround amplifier control buttons
ON : Turns the ADV-500SD’s power on.
OFF : Turns the ADV-500SD’s power off.
FUNCTION : Function selection (in order)
SURROUND : Surround mode selection
INPUT MODE : Input mode selection
TEST TONE : Test tone on/off
+ : Main volume up
– : Main volume down
MUTING : Muting on/off
STATUS : Status display selection
TONE/DIMMER : Tone/DIMMER selection and
setting
SET UP : Setup mode on/off
CH SELECT : Channel level selection and
setting
•, ª, 0, 1 : Cursor up, down, left and right
ENTER : Enter setting
w DVD control buttons
1 : Play (auto power on and auto
function selection)
2 : Stop
8, 9 : Skip (cueing)
6, 7 : Search (fast-reverse and fast-
forward)
3 : Pause and frame-by-frame
e Tuner control buttons
CH +/– : Preset channel up/down
(auto power on and auto function
selection)
3
Operate the ADV-500SD.
[1] Surround amplifier system buttons
(Operated with mode switch 2 set to
“AV AMP”)
• These operations are possible with
mode switch 1 at any position.
The operations in gray print can be
performed.
+
-
+
-
+
-
-
+
-
+
RC-973
A / V
A-B REPEAT
ONOFF
REPEAT RANDOM
CLEAR ZOOM
PROG/ DIRECT
MEMO BANDMODE
STAT U S
RETURN
ANGLE AUDIO
SUB TITLE
SETUP TONE /DIMMER
FUNCTIONSURROUNDINPUT MODETEST TONE
DVD
TUNER
CH
321
654
987
0
/
10
ENTER
MUTING
+
10
DISPLAY MENU TOP MENU
TUNER TV / VCR
NTSC/PAL
SLEEP
TV IN
TUNING /
TV VOL
TV CH TV CH
VCR CH
AV AMPDVD
VCR P WR PWR TV
PBC
CALL
SURROUNDSURROUND
PARAMEAMETER
CH SELECT
CT RTPTYRDS
TV
DVD TUNER
VIDEO 1 VIDEO 2
SLEEP : Sleep on/off
DVD : Function DVD
TUNER : Function TUNER
TV : Function TV
VIDEO-1 : Function VIDEO-1
VIDEO-2 : Function VIDEO-2
[2] DVD system buttons
(Operated with mode switch 2 set to
“DVD”)
+
-
+
-
+
-
-
+
-
+
RC-973
A / V
A-B REPEAT
ONOFF
REPEAT RANDOM
CLEAR ZOOM
PROG/ DIRECT
MEMO BANDMODE
STAT U S
RETURN
ANGLE AUDIO
SUB TITLE
SETUP TONE /DIMMER
FUNCTIONSURROUNDINPUT MODETEST TONE
DVD
TUNER
CH
321
654
987
0
/
10
ENTER
MUTING
+
10
DISPLAY MENU TOP MENU
TUNER TV / VCR
NTSC/PAL
SLEEP
TV IN
TUNING /
TV VOL
TV CH TV CH
VCR CH
AV AMPDVD
PWR TV
PBC
CALL
CH SELECT
CT RTPTYRDS
TV
DVD TUNER
VIDEO 1 VIDEO 2
VCR P WR
NTSC/PAL : NTSC/PAL selection
ZOOM : Zoom on/off
A-B REPEAT : A-B repeat playback
setting
CLEAR : Program clear
RANDOM : Random play on/off
REPEAT : Repeat play setting
PROG/DIRECT : Program/direct play
selection
CALL : Program call
0 ~ 9, +10 : Number buttons
TOP MENU : Top menu call
MENU : Menu call
DISPLAY : Display call/selection
RETURN : Menu return
SUBTITLE : Subtitle language
selection
AUDIO : Audio language
selection
ANGLE : Angle selection
