S-VIDEO or VIDEO jacks
S-VIDEO connection is your second choice and is superior to the standard composite video connection.
If the component has a S-VIDEO jack, connect them with a high quality S-VIDEO cable.
S-VIDEO OUT S-VIDEO IN (TV)
If neither COMPONENT VIDEO nor S-VIDEO is available, connect the component with a high quality RCA
cable designed for video applications.
VIDEO OUT VIDEO IN (TV)
VIDEO IN
S-VIDEO IN
B
R OUT
VIDEO
OUT
L
AUDIO
R OUT IN
AUDIO
VIDEO
OUT
IN
LRL
L
R
R
L
R
RL L
R
RLL
R
L
R
L
TV
ADV-500SD
B
C
C

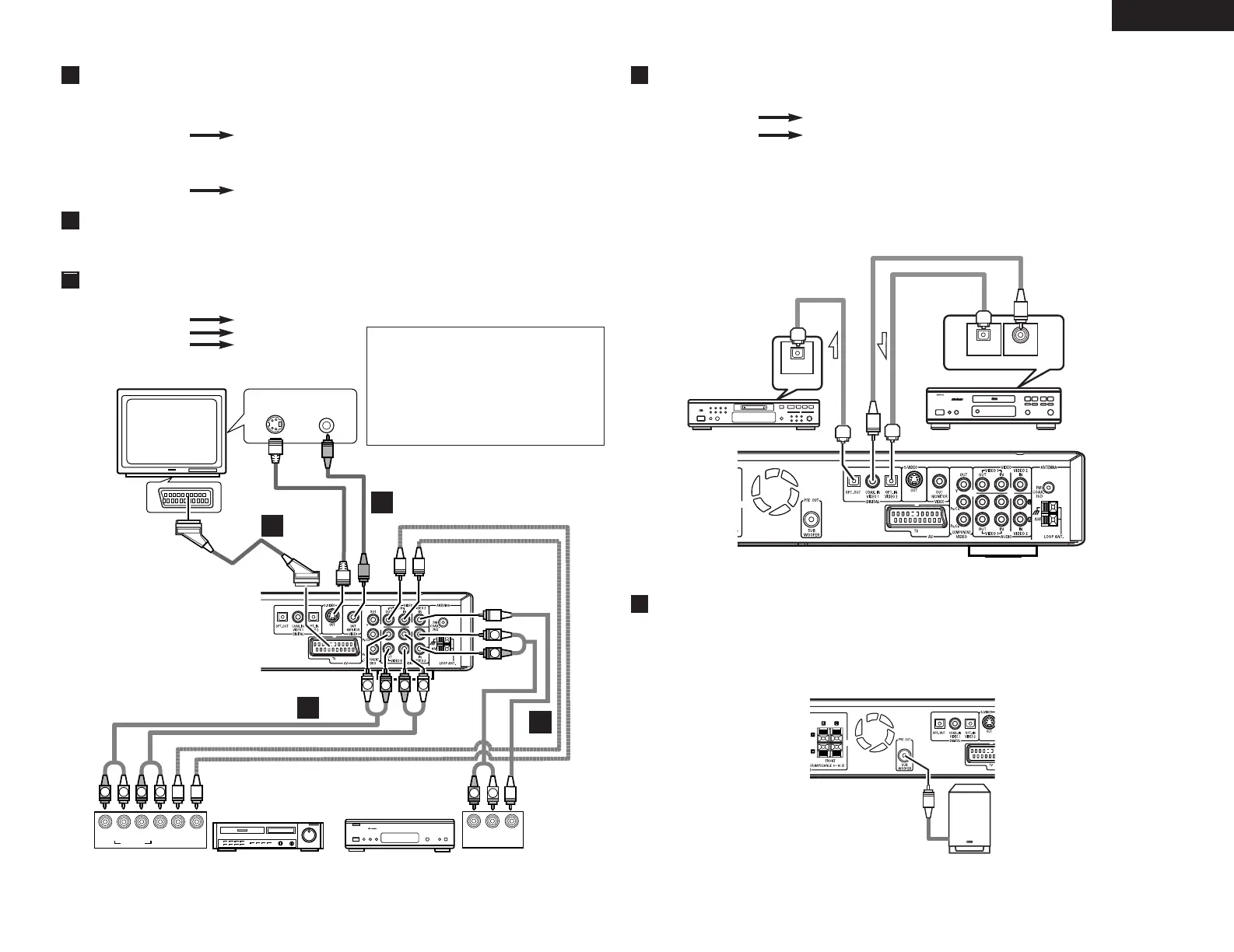

AV Connector (SCART jack)
SCART jack on the unit to the SCART IN jack on the TV using the Scart Cable.
D
VIDEO1, VIDEO2 jack
Connect the component with RCA cords. Make sure to connect :
white plug white jack (L : left)
red plug red jack (R : right)
yellow plug yellow jack
D
D
VCR, etc.
CS tuner, etc.
E
DIGITAL IN/OUT jacks
Connect the component with optional coaxial cables or optical cables.
DIGITAL IN DIGITAL OUT(CD, etc.)
DIGITAL OUT DIGITAL IN(CD-R, MD, etc.)
• Connect any one of the DIGITAL terminals. (OPTICAL or COAXIAL)
• To record digitally, connect the source(CD player, etc.) to DIGITAL IN and the recorder(CD-R, MD, etc.) to
DIGITAL OUT.
• When an optical fiber cable is used for connection, remove the caps protecting both ends of the optical cable.
CAUTION:
Connect either OPTICAL or COAXIAL with suitable jack.
OUTPUT
OPTICAL COAXIAL
DIGITAL AUDIODIGITAL AUDIO
INPUT
OPTICAL
B
ADV-500SD
MD, CD-R, etc.
CD Player, etc.
OPTICAL
CABLE
F
SUBWOOFER PRE OUT jack
Use Subwoofer jack to connect in case you had additional active subwoofer.
You can connect a larger active subwoofer to the system. Connect the active subwoofer to the SUBWOOFER
PRE-OUT jack using a shielded audio cable.
ADV-500SD
ACTIVE SUBWOOFER
Cautions during analog recording of DVDs
or digital input sources:
• Do not switch the INPUT mode or
SURROUND mode, and do not plug or
unplug headphone during recording. Doing
so will interrupt the sound being recorded.
We recommend setting the SURROUND
mode to “STEREO”.
To Next Page
