LOADING THE STERILIZATION CHAMBER

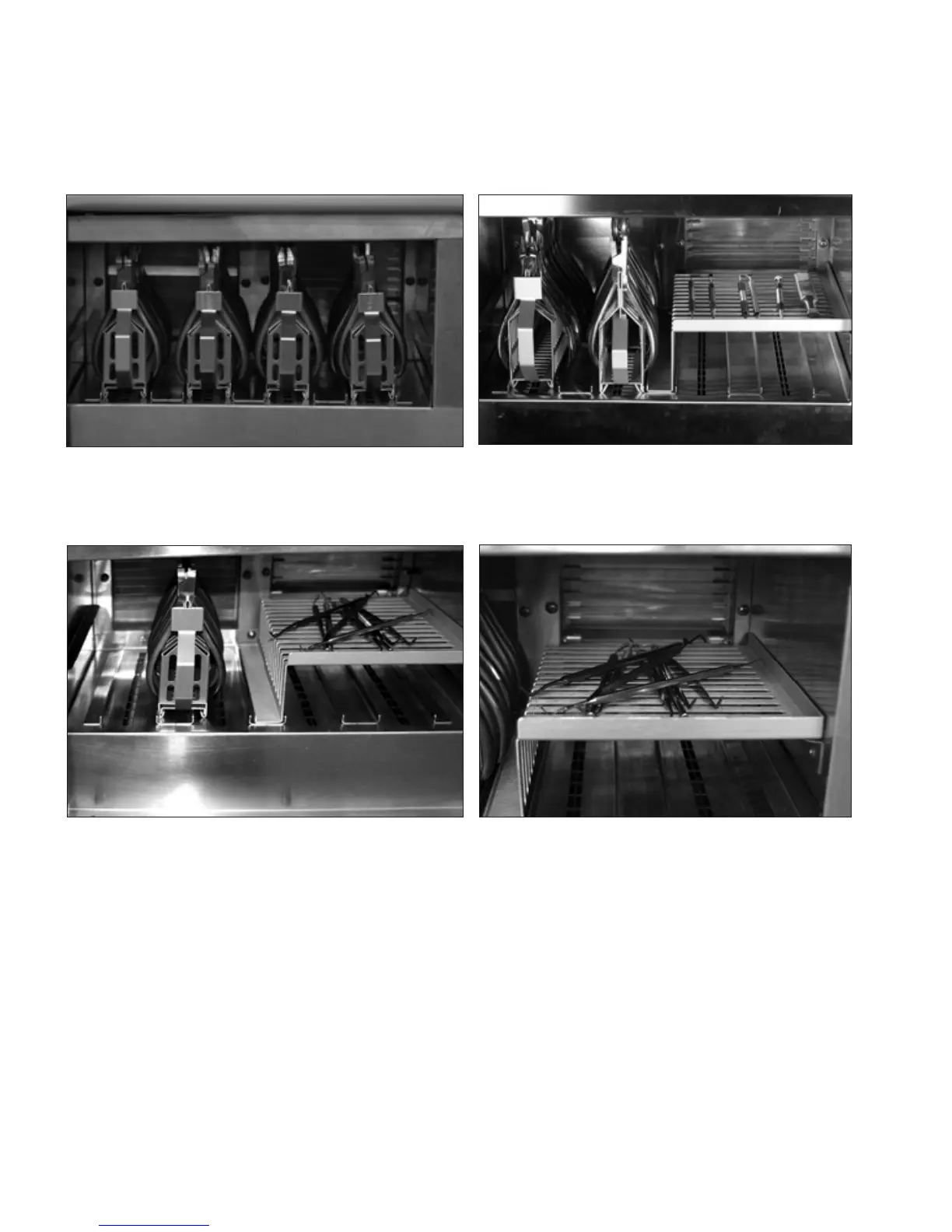

Example of proper and improper loadings

Figure 7A: Properly Loaded DDS 7000 with Figure 7B: Properly Loaded DDS 7000

four Plier Racks. with Half-Tray and two Plier Racks.

Figure 7C: Improperly loaded Half Tray with Figure7D: Close up of improperly loaded

Plier Rack. The Plier Rack is not in the proper half tray. Instruments should be placed so

rack channel and covers the air vents. This that they do not touch one another or extend

will impede airow around the instruments. over the tray periphery.

ALSO AVAILABLE: FULL TRAY FOR HAND INSTRUMENTS.
