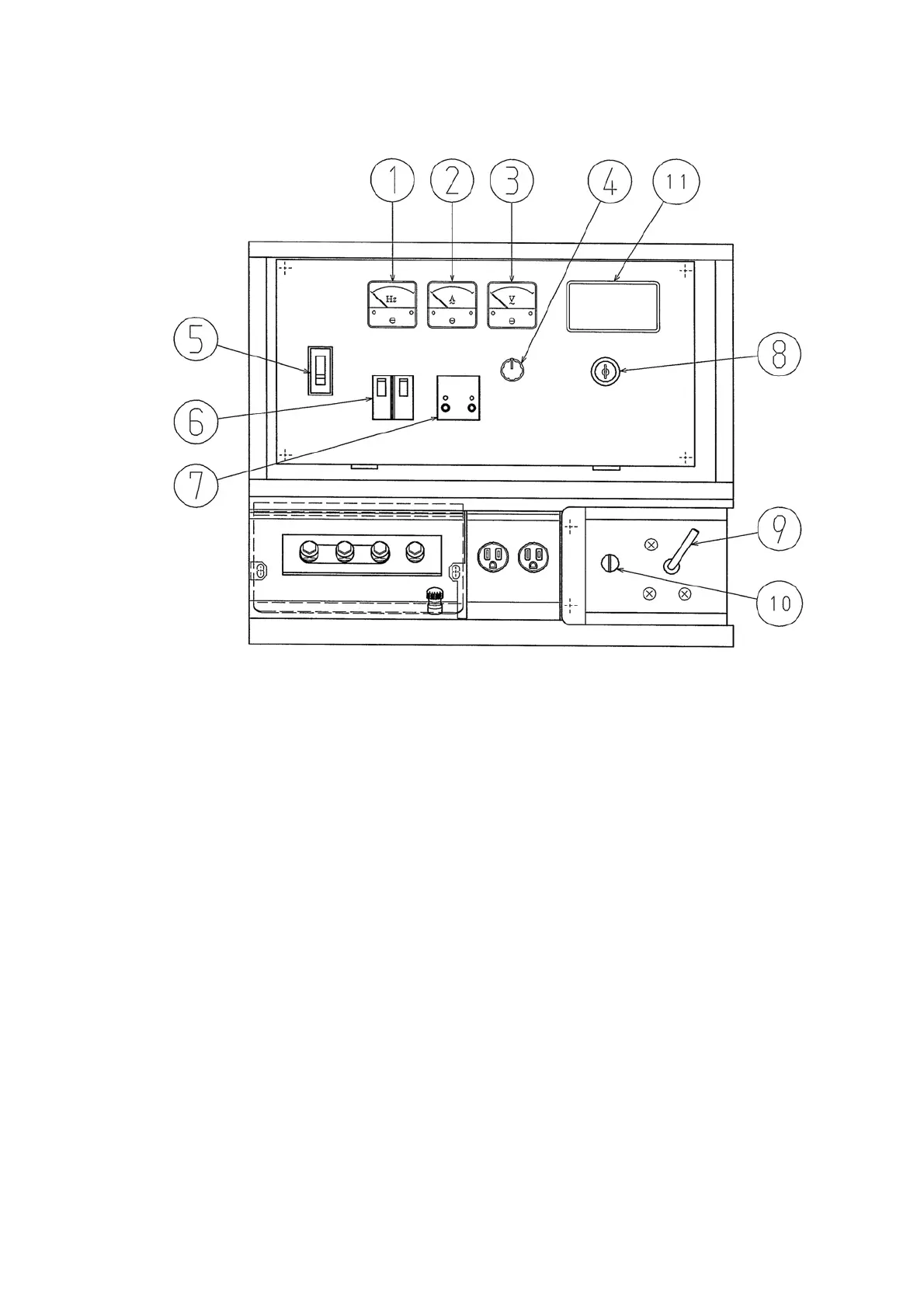

2-2 Operating panel, control panel and parts names
1. FREQUENCY METER
2. AC AMMETER
3. AC VOLTMETER
4. VOLTAGE REGULATOR
5. AC CIRCUIT BREAKER
6. AC CIRCUIT BREAKER ā for RECEPTACLE (OPTION)
7. EARTH LEAKAGE RELAY (OPTION)
8. STARTER SWITCH
9. THROTTLE LEVER
10. FREQUENCY ADJUST SCREW
11. ENGINE MONITOR
NUMBER INDICATION : RUN HOURS
LAMP INDICATION : FUEL LEVEL, PREHEAT
WARNING LAMPS : WATER TEMP., OIL PRESS., CHARGING
