2- 3 Meters

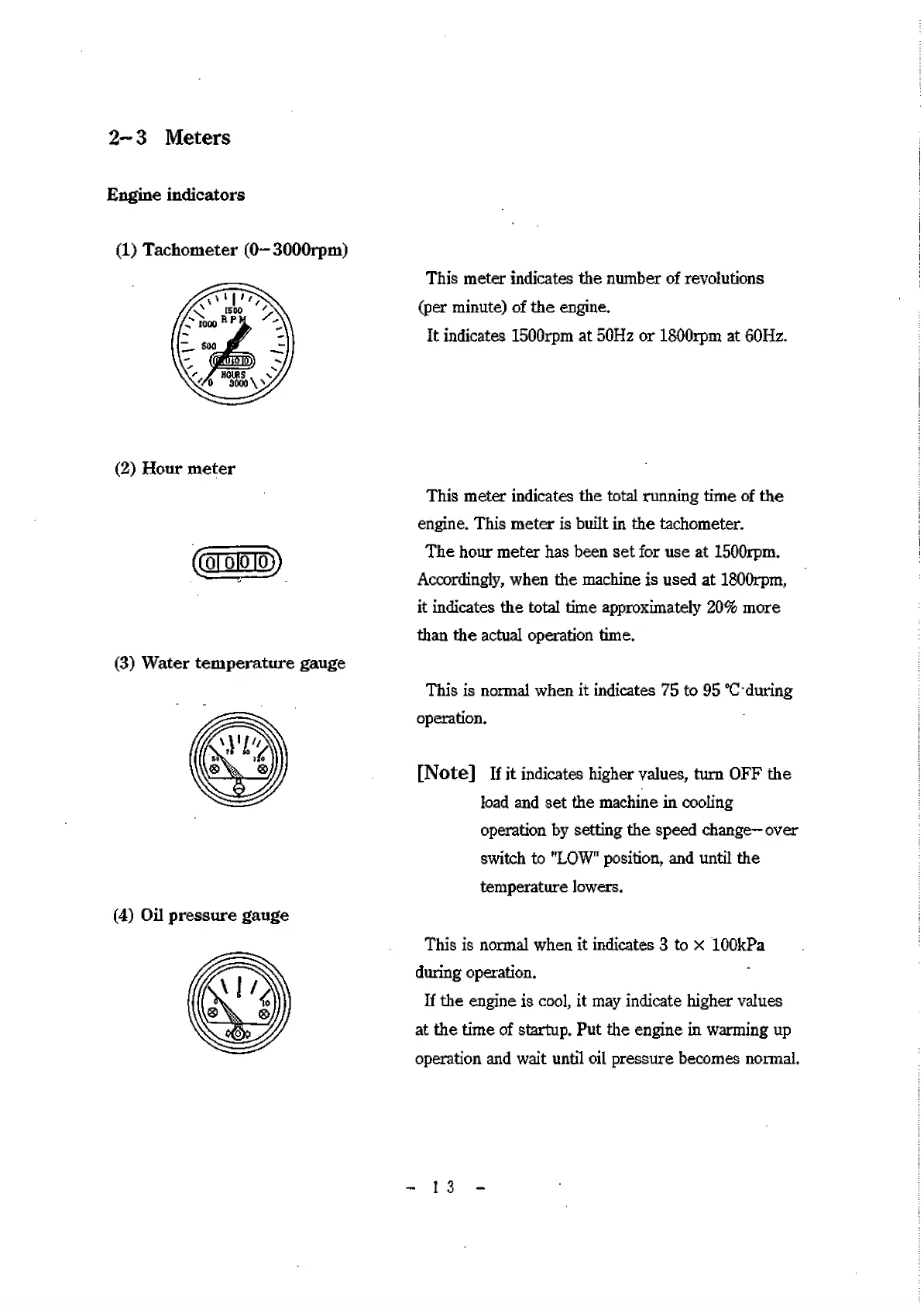

Engine indicators
(1) Tachometer (0-3000rpm)
(2) Hour meter
(COI ОЮКЙ)
(3) Water temperature
(4) Oil pressure gauge
This meter indicates the number of revolutions
(per minute) of the engine.
It indicates 1500rpm at 50Hz or ISOOrpm at 60Hz.
This meter indicates the total running time of the
engine. This meter is built in the tachometer.
The hour meter has been set for use at ISOOrpm.
Accordingly, when the machine is used at 180Grpm,
it indicates the total time approximately 20% more
than the actual operation time.
gauge
This is normal when it indicates 75 to 95 °C'during
operation.
[N ote] If it indicates higher values, turn OFF the
load and set the machine in cooling
operation by setting the speed change-over
switch to "LOW" position, and until the
temperature lowers.
This is normal when it indicates 3 to x lOOkPa
during operation.
If the engine is cool, it may indicate higher values
at the time of startup. Put the engine in warming up
operation and wait until oil pressure becomes normal.
