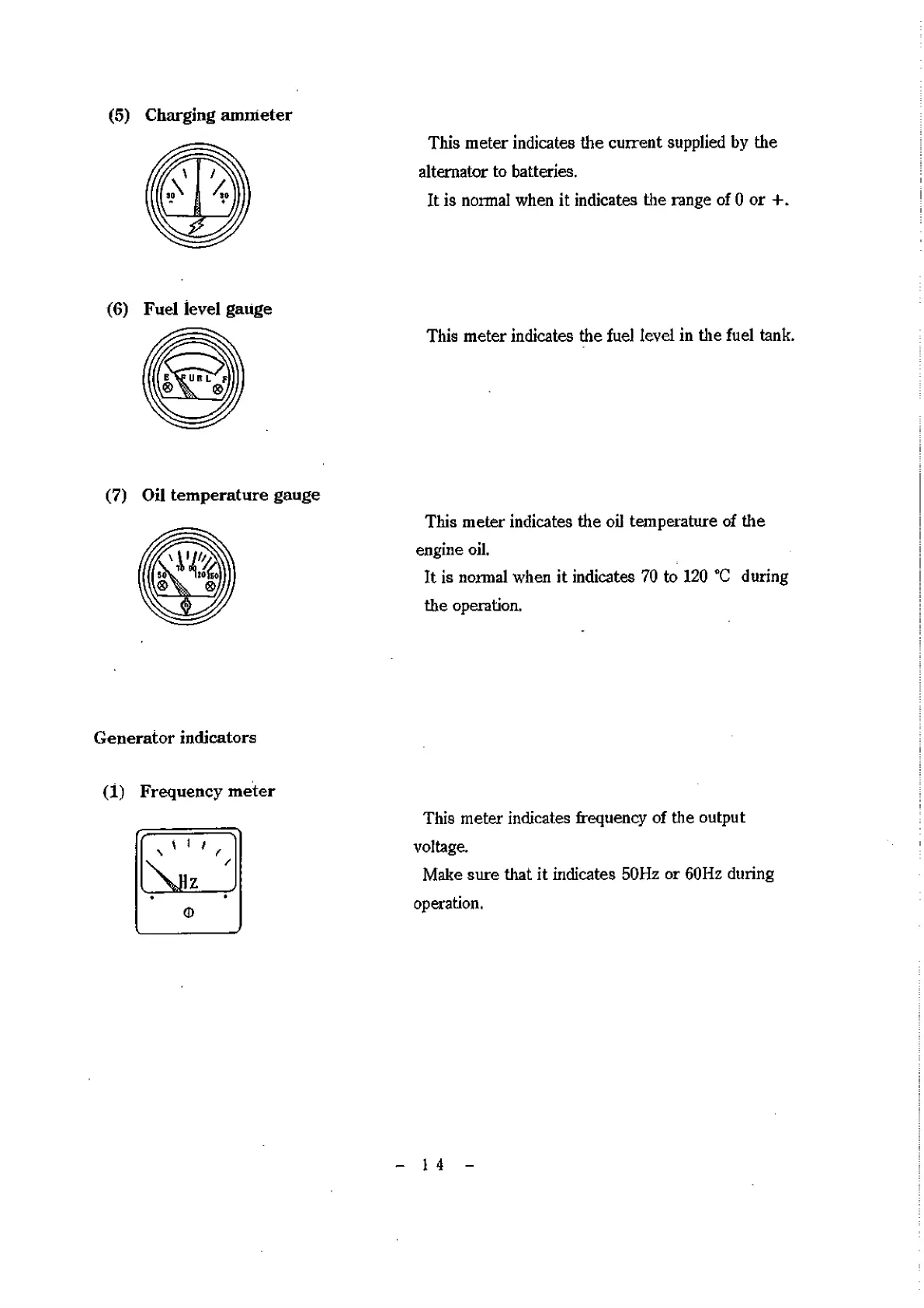

(5) Charging ammeter
(6) Fuel level gauge
(7) Oil temperature gauge
Generator indicators
(1) Frequency meter
This meter indicates the current supplied by the
alternator to batteries.
It is normal when it indicates the range of 0 or +.
This meter indicates the fuel level in the fuel tank.
This meter indicates the oil temperature of the
engine oil.
It is normal when it indicates 70 to 120 °C during
the operation.
This meter indicates frequency of the output
voltage.
Make sure that it indicates 50Hz or 60Hz during
operation.
