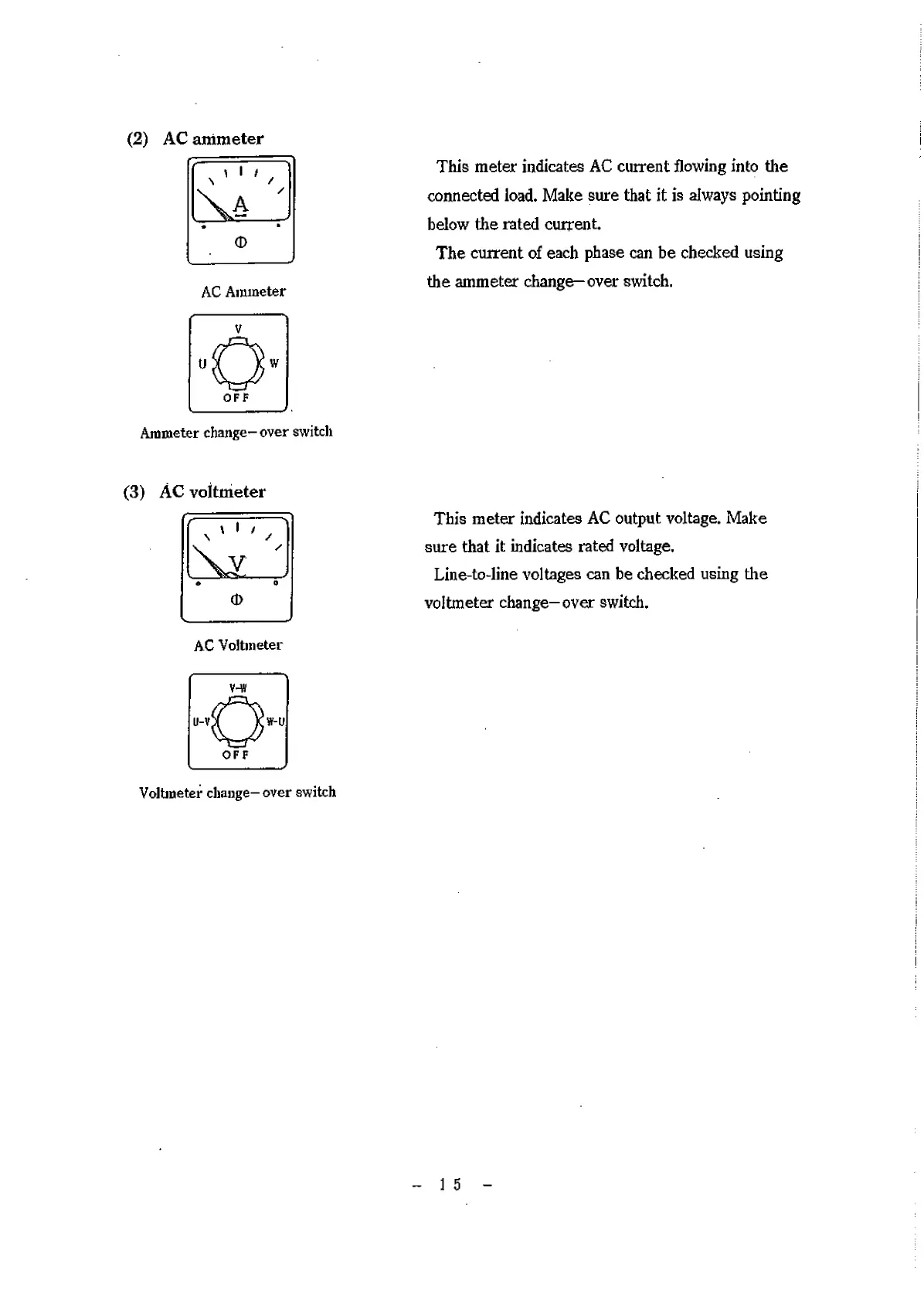

(2) AC ammeter
AC Ammeter
This meter indicates AC current flowing into the
connected load. Make sure that it is always pointing
below the rated current.
The current of each phase can be checked using
the ammeter change-over switch.
(3) AC voltmeter
AC Voltmeter
This meter indicates AC output voltage. Make
sure that it indicates rated voltage.
Line-to-line voltages can be checked using the
voltmeter change-over switch.
-15-
