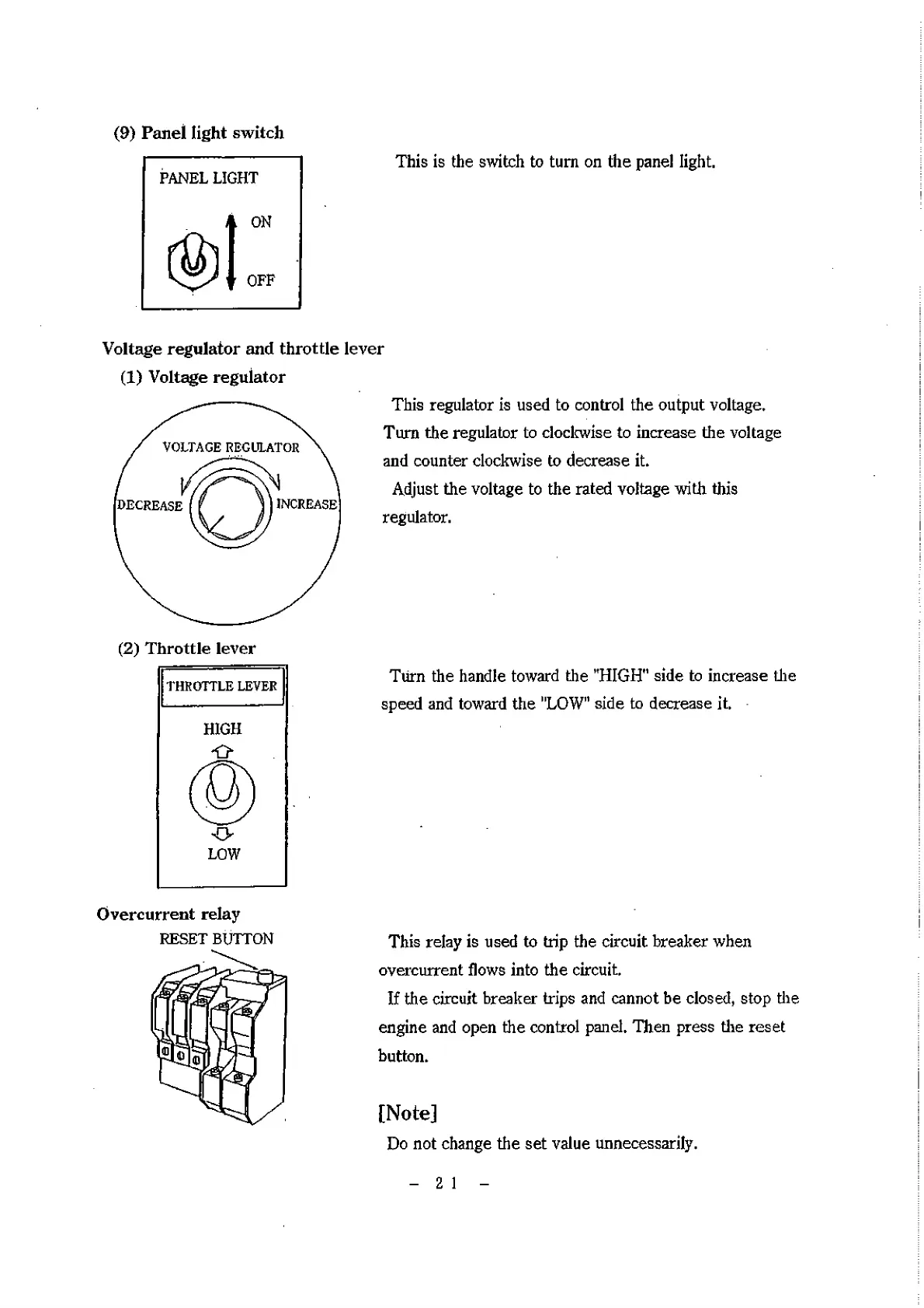

(Ð) Panel light switch
This is the switch to turn on the panel light.
Voltage regulator and throttle lever
(1) Voltage regulator
Overcurrent relay
RESET BUTTON
This regulator is used to control the output voltage.
Turn the regulator to clockwise to increase the voltage
and counter clockwise to decrease it.
Adjust the voltage to the rated voltage with this
regulator.
Turn the handle toward the "HIGH" side to increase die
speed and toward the "LOW" side to decrease it.
This relay is used to trip the circuit breaker when
overcurrent flows into the circuit.
If the circuit breaker trips and cannot be closed, stop t
engine and open the control panel. Then press the rese
button.
[Note]
Do not change the set value unnecessarily.
- 2 1 -
