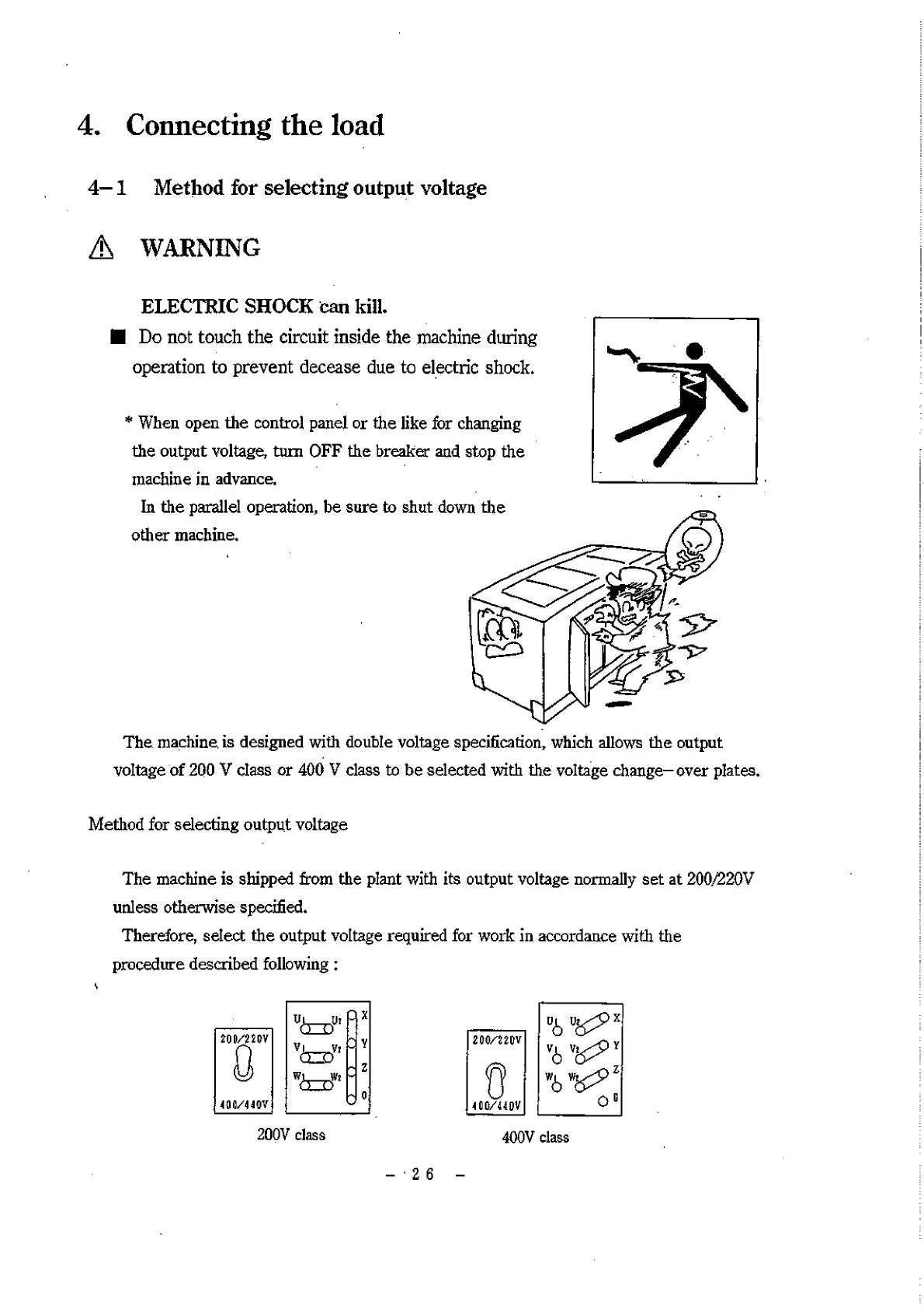

4. Connecting the load
4— 1 M ethod for selecting output voltage
A WARNING
ELECTRIC SHOCK Can kill.
I Do not touch the circuit inside the machine during
operation to prevent decease due to electric shock.
* When open the control panel or the like for changing
the output voltage, turn OFF the breaker and stop the
machine in advance.
In the parallel operation, be sure to shut down the
other machine.
The machine is designed with double voltage specification, which allows the output
voltage of 200 V class or 400 V class to be selected with the voltage change-over plates.
Method for selecting output voltage
The machine is shipped from the plant with its output voltage normally set at 20G/220V
unless otherwise specified.
Therefore, select the output voltage required for work in accordance with the
procedure described following:
г v 9 *
o °
200V class 400V class
-■26 -
Z 00/2 20V
0
Ш / JID V
