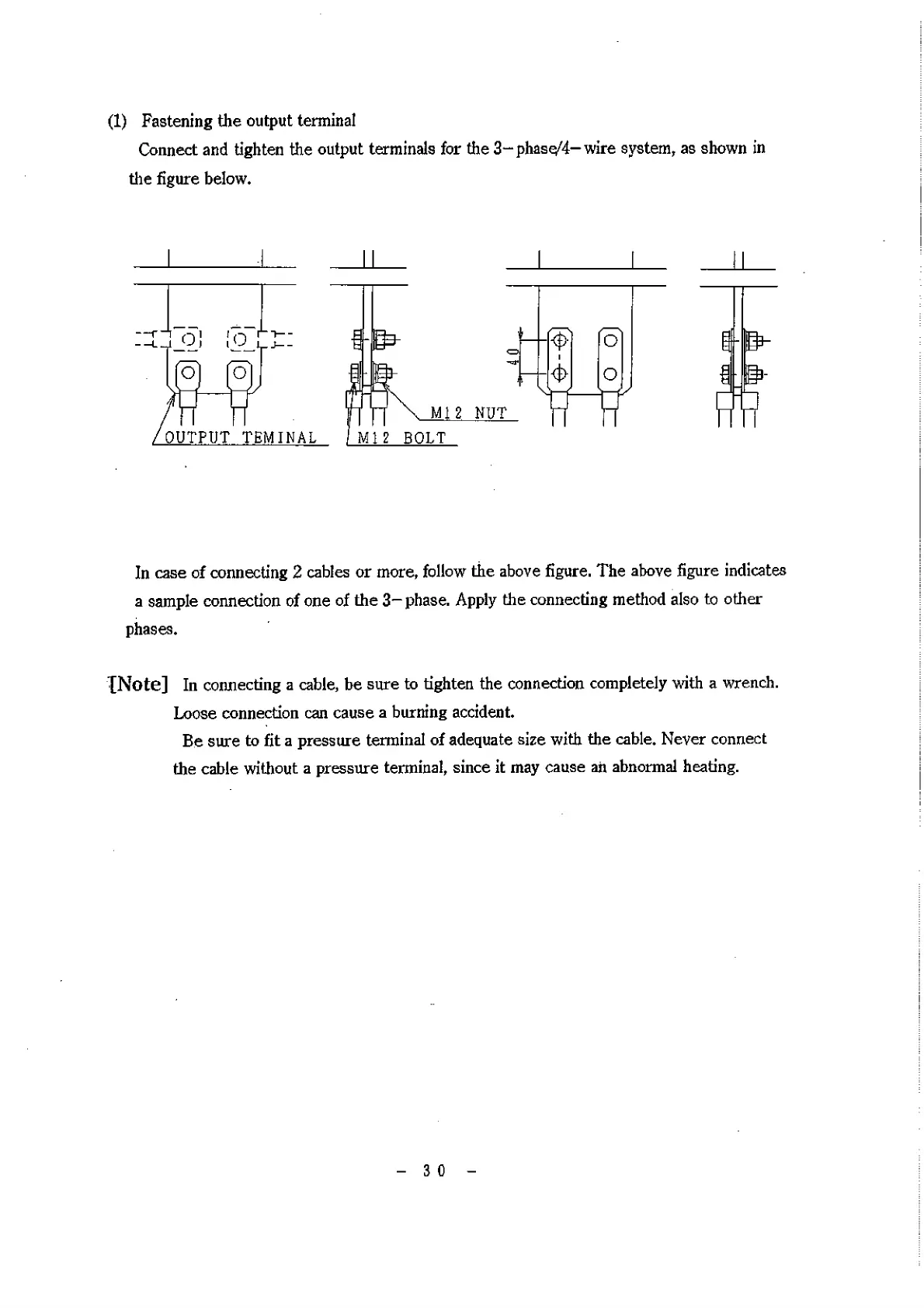

(1) Fastening the output terminal
Connect and tighten the output terminals for the 3 - phased— wire system, as shown in
the figure below.
In case of connecting 2 cables or more, follow the above figure. The above figure indicates
a sample connection of one of the 3 - phase. Apply the connecting method also to other
phases.
{N ote] In connecting a cable, be sure to tighten the connection completely with a wrench.
Loose connection can cause a burning accident.
Be sure to fit a pressure terminal of adequate size with the cable. Never connect
the cable without a pressure terminal, since it may cause ah abnormal heating.
-30 -
