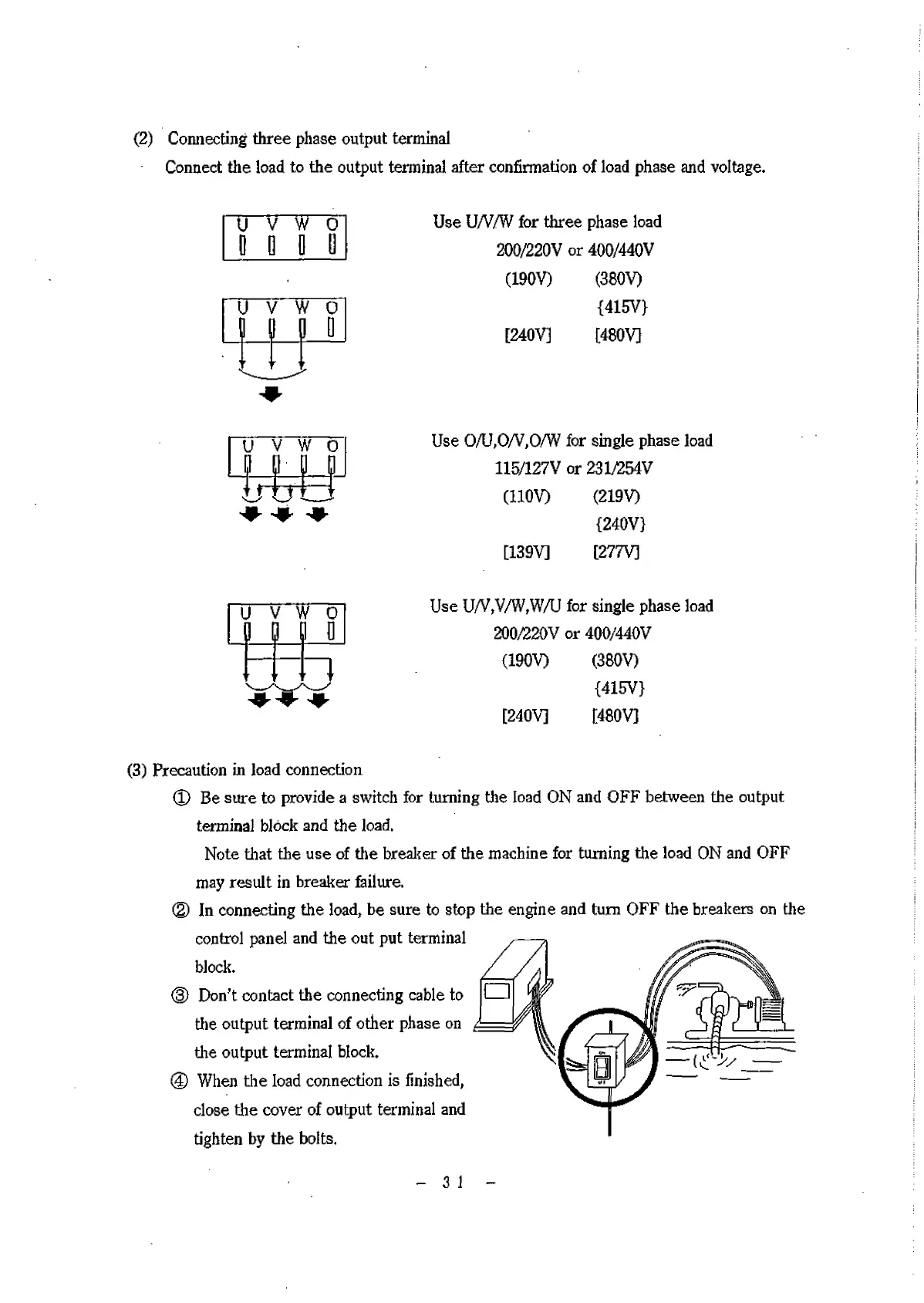

(2) Connecting three phase output terminal
Connect the load to the output terminal after confirmation of load phase and voltage.
Use U/V/W for three phase load
200/220V or 400/440V
(190V) (380V)
{415V}
[240V] [480V]
^ '
Use 0/U,0/V,0/W for single phase load
115/127V or 231/254V
(110V) (219V)
{240V}
[139V] [277V]
Use U/V,V/W,W/U for single phase load
200/220V or 400/440V
(190V) (380V)
{415V}
[240V] [480V]
(3) Precaution in load connection
ф Be sure to provide a switch for turning the load ON and OFF between the output
terminal block and the load.
Note that the use of the breaker of the machine for turning the load ON and OFF
may result in breaker failure.
ф In connecting the load, be sure to stop the engine and turn OFF the breakers on the
control panel and the out put terminal
block.
(S> Don’t contact the connecting cable to
the output terminal of other phase on
the output terminal block.
ф When the load connection is finished,
close the cover of output terminal and
tighten by the bolts.
-31 -
